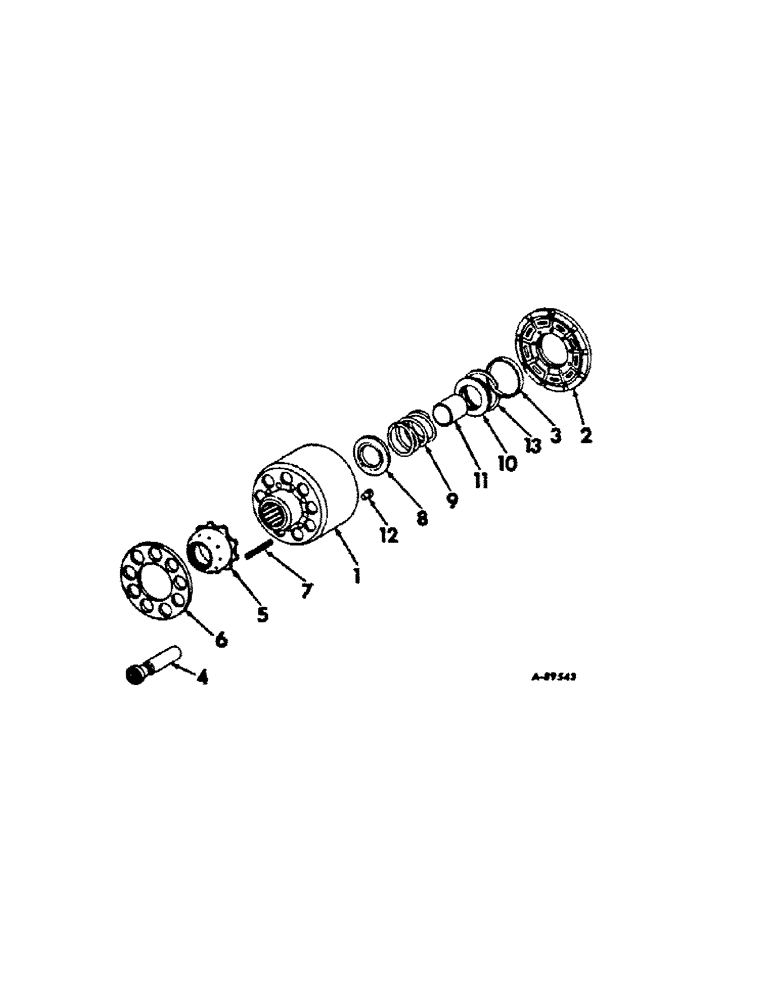

Запчасти Case IH 966 (07-24) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT, 966 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

1

527625R1

BLOCK

ASSY, cylinder

1шт.

2

527626R1

PLATE ASSY.

PLATE, bearing

1шт.

3

527627R1

WASHER

PILOT, bearing plate

1шт.

4

538705R1

PISTON

ASSY

9шт.

5

527629R1

GUIDE

slipper retainer

1шт.

6

527630R1

RETAINER

slipper

1шт.

7

527631R1

VALVE SPRING

SPRING, slipper retainer guide

9шт.

8

527632R1

SEAT

spring

1шт.

9

532305R1

VALVE SPRING

SPRING, cylinder block

1шт.

10

527634R1

RETAINER

spring

1шт.

11

527635R1

GUIDE

spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

299899R1

SNAP RING,#314, 3.276, Int, Spiral

RING, internal retaining plate kit service

1шт.

65021C91

PACKAGE

hydrostatic motor piston and, consists of (9) piston 538705R1, (1) plate 527626R1, (1) plate 406539R2

1шт.
