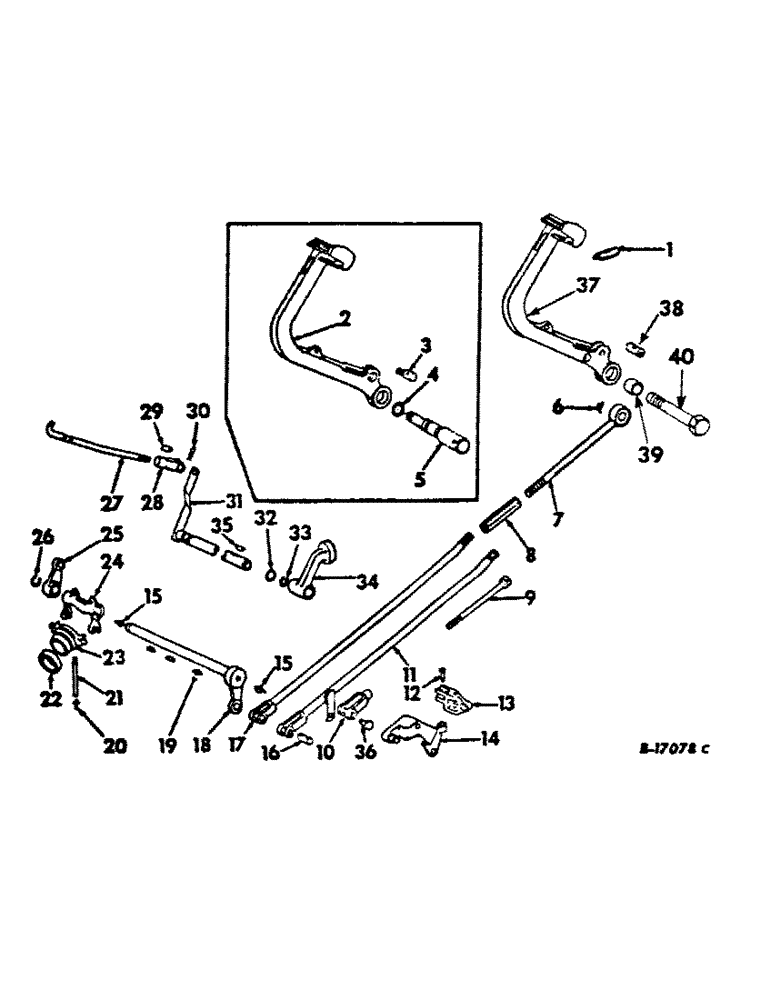

Запчасти Case IH 966 (07-05) - DRIVE TRAIN, CLUTCH CONTROLS AND TRANSMISSION BRAKE, GEAR DRIVE TRACTORS (04) - Drive Train

1

626206R1

SPRING

clutch pedal return

1шт.

2

397468R1

PEDAL

clutch, 766, Serial Range: -7597

1шт.

2

397468R1

PEDAL

clutch, 966, Serial Range: -14085

1шт.

2

397468R1

PEDAL

clutch, 1066, Serial Range: -17030

1шт.

2

397468R1

PEDAL

clutch, 1466, Serial Range: -7405

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot, 766, Serial Range: -7597

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot, 966, Serial Range: -14085

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot, 1066, Serial Range: -17030

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot, 1466, Serial Range: -7405

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft, 766, Serial Range: -11780

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft, 966, Serial Range: -20613

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft, 1066, Serial Range: -30176

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft, 1466, Serial Range: -18131

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, clutch pedal pivot shaft, 1468, Serial Range: -9546

1шт.

5

395249R1

SHAFT

clutch pedal pivot, 766, Serial Range: -11780

1шт.

5

395249R1

SHAFT

clutch pedal pivot, 966, Serial Range: -20613

1шт.

5

395249R1

SHAFT

clutch pedal pivot, 1066, Serial Range: -30176

1шт.

5

395249R1

SHAFT

clutch pedal pivot, 1466, Serial Range: -18131

1шт.

5

395249R1

SHAFT

clutch pedal pivot, 1468, Serial Range: -9546

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

364030R1

SPACER

clutch pedal shaft

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 GA

1шт.

6

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

7

380178R11

ROD

ASSY, clutch operating rear, 766, Serial Range: -7597

1шт.

7

380178R11

ROD

ASSY, clutch operating rear, 966, Serial Range: -14085

1шт.

7

380178R11

ROD

ASSY, clutch operating rear, 1066, Serial Range: -17030

1шт.

7

380178R11

ROD

ASSY, clutch operating rear, 1466, Serial Range: -12145

1шт.

7

380178R11

ROD

ASSY, clutch operating rear, 1468, Serial Range: -7405

1шт.

7

65035C1

ROD

ASSY, clutch operating rear, 766, Start Serial: 7598

1шт.

7

65035C1

ROD

ASSY, clutch operating rear, 966, Start Serial: 14086

1шт.

7

65035C1

ROD

ASSY, clutch operating rear, 1066, Start Serial: 17031

1шт.

7

65035C1

ROD

ASSY, clutch operating rear, 1466, Start Serial: 12146

1шт.

7

65035C1

ROD

ASSY, clutch operating rear, 1468, Start Serial: 7406

1шт.

18266R1

NUT, 5/8-11 LH thd hex jam

1шт.

8

384248R1

TURNBUCKLE

1шт.

9

70930C1

BOLT (SPREADER),Hex, 1/4" - 28 x 6"

SCREW, 1/4-28 X 6 hex-hd cap, dump valve actuating, tractors with torque amplifier

1шт.

10

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 light adj rod end, tractors with torque amplifier

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex jam

1шт.

11

385142R91

ROD

ASSY, clutch operating front, tractors with torque amplifier

1шт.

12

382491R2

PIN

bellcrank pivot, tractors with torque amplifier

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

13

382490R1

LEVER

BELLCRANK, clutch brake, tractors with torque amplifier

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

14

382489R11

PIVOT ASSY.

PIVOT ASSY, valve operating, tractors with torque amplifier, gasoline tractors

1шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SCREW, 5/16-18 x 2-3/4 hex-hd cap

1шт.

26550R1

BOLT,5/16" x 3 7/8", Gr 8

SCREW, 5/16-18 x 3-7/8 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Diesel tractors 5/16"

2шт.

25043R1

BOLT,5/16" x 2 7/8", Gr 8

SCREW, 5/16-18 x 2-7/8 hex-hd cap

1шт.

23234R1

SCREW

5/16-18 X 4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

16

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod clevis

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

17

383192R11

ROD

ASSY, clutch operating, front

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

18

380180R12

SHAFT

ASSY, clutch release

1шт.

19

120502

STOP

3/16 x 7/8 woodruff 11

3шт.

20

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 NEF str lub, clutch release sleeve, not required w/pre-lubricated bearing, 69789C91, order plug 445684

1шт.

20

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1-8/27 PTF str lub, clutch release sleeve, not required w/pre-lubricated bearing, 69789C91, order plug, 445684, 1066 and 1466 tractors with auxiliary underslung fuel tank

1шт.

21

365720R1

PIPE

clutch release sleeve grease, not required w/pre-lubricated bearing, 69789C91, order plug, 445684

1шт.

105412

ELBOW,90 Degree, 1/8" NPT

1/8 90 deg pipe, 1066 and 1466 tractors with auxiliary underslung fuel tank

1шт.

219217

NIPPLE, 1/8 x 7 pipe, 1066 and 1466 tractors with auxiliary underslung fuel tank

1шт.

999819R91

COUPLING

COUPLER, grease gun lubrication, 1066 and 1466 tractors with auxiliary underslung fuel tank

1шт.

22

69789C91

BEARING ASSY

PACKAGE, clutch release bearing, replaces bearing, 365867R91 by also ordering plug, 445684

1шт.

23

380109R1

SLEEVE

clutch release

1шт.

445684

PLUG

1/8-27 auto sq-hd pipe

1шт.

24

380110R1

FORK

clutch release

1шт.

24

380110R1GV

CLUTCH

Value, Clutch Release

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

25

384306R1

LEVER

transmission brake operating

1шт.

26

384305R1

RING

clutch release shaft snap

1шт.

27

384307R1

ROD

transmission brake operating

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 3/32

1шт.

28

213-318

CLEVIS

1/2-20 x 2-9/16 ADJ rod end, transmission brake operating rod

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

1шт.

29

384308R2

PIN,12.53mm OD x 28.45mm L

operating rod clevis

1шт.

30

460047R1

CLIP, SPRING

PIN, quick attachable cotter, transmission brake operating rod

1шт.

31

384309R11

SHAFT

ASSY, transmission brake

1шт.

32

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, transmission brake shaft

1шт.

33

384305R1

RING

transmission brake shaft snap

1шт.

34

384311R21

LEVER

ASSY, transmission brake

1шт.

35

124552

SCREW

3/16 x 1 woodruff 13

1шт.

36

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end, tractors with torque amplifier

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

37

65037C1

PEDAL

clutch, 766, Start Serial: 7598

1шт.

37

65037C1

PEDAL

clutch, 966, Start Serial: 14086

1шт.

37

65037C1

PEDAL

clutch, 1066, Start Serial: 17031

1шт.

37

65037C1

PEDAL

clutch, 1466, Start Serial: 12146

1шт.

37

65037C1

PEDAL

clutch, 1468, Start Serial: 7406

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot

1шт.

38

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod, 766, Start Serial: 7598

1шт.

38

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod, 966, Start Serial: 14086

1шт.

38

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod, 1066, Start Serial: 17031

1шт.

38

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod, 1466, Start Serial: 12146

1шт.

38

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod, 1468, Start Serial: 7406

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

39

67737C1

SPACER

clutch pedal shaft, 766, Start Serial: 11791

1шт.

39

67737C1

SPACER

clutch pedal shaft, 966, Start Serial: 20614

1шт.

39

67737C1

SPACER

clutch pedal shaft, 1066, Start Serial: 30177

1шт.

39

67737C1

SPACER

clutch pedal shaft, plug, 1/8-27 auto hex-hd pipe, 1468, Start Serial: 9547

1шт.

40

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW, 3/4-10 x 3 hex-hd cap, 766, Start Serial: 11781

1шт.

40

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW, 3/4-10 x 3 hex-hd cap, 966, Start Serial: 20614

1шт.

40

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW, 3/4-10 x 3 hex-hd cap, 1066, Start Serial: 30177

1шт.

40

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW, 3/4-10 x 3 hex-hd cap, 1466, Start Serial: 18132

1шт.

40

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW, 3/4-10 x 3 hex-hd cap, 1468, Start Serial: 9547

1шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

66179C91

PACKAGE, reduced effort clutch pedal service, 766, Serial Range: -7597

1шт.

Consists of (1) fitting 273359, (1) instructions 1084164R1 (NSS), (1) nut 18266R1, (1) pedal 65037C1, (1) pin 103361, (1) pin 103398, (1) pin 103494, (1) pin 382492R2, (1) rod assy 65035C1, (1) washer 16558R1

1шт.

66179C91

PACKAGE, reduced effort clutch pedal service, 966, Serial Range: -14085

1шт.

Consists of (1) fitting 273359, (1) instructions 1084164R1 (NSS), (1) nut 18266R1, (1) pedal 65037C1, (1) pin 103361, (1) pin 103398, (1) pin 103494, (1) pin 382492R2, (1) rod assy 65035C1, (1) washer 16558R1

1шт.

66179C91

PACKAGE, reduced effort clutch pedal service, 1066, Serial Range: -17030

1шт.

Consists of (1) fitting 273359, (1) instructions 1084164R1 (NSS), (1) nut 18266R1, (1) pedal 65037C1, (1) pin 103361, (1) pin 103398, (1) pin 103494, (1) pin 382492R2, (1) rod assy 65035C1, (1) washer 16558R1

1шт.

66179C91

PACKAGE, reduced effort clutch pedal service, 1466, Serial Range: -12145

1шт.

Consists of (1) fitting 273359, (1) instructions 1084164R1 (NSS), (1) nut 18266R1, (1) pedal 65037C1, (1) pin 103361, (1) pin 103398, (1) pin 103494, (1) pin 382492R2, (1) rod assy 65035C1, (1) washer 16558R1

1шт.

66179C91

PACKAGE, reduced effort clutch pedal service, 1468, Serial Range: -7405

1шт.

Consists of (1) fitting 273359, (1) instructions 1084164R1 (NSS), (1) nut 18266R1, (1) pedal 65037C1, (1) pin 103361, (1) pin 103398, (1) pin 103494, (1) pin 382492R2, (1) rod assy 65035C1, (1) washer 16558R1

1шт.
