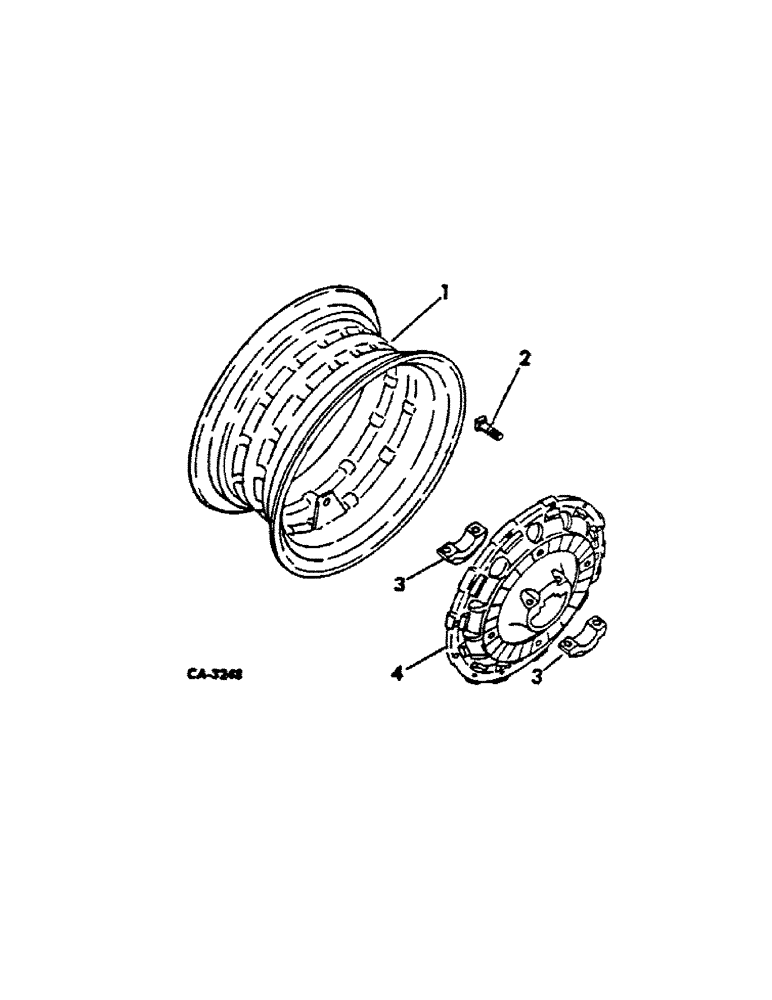

Запчасти Case IH 966 (15-03[A]) - WHEELS AND TRACTION, REAR WHEELS, 42 INCH, FOR 766, 966 AND HYDRO 100 TRACTORS Wheels & Traction

1

67983C1

RIM, w/clamps, rear wheel, W9-42 rim for 12.4-42 tire

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim

16шт.

352536R1

NUT

rear wheel rim bolt

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

3

68806C1

CLAMP

rear wheel hub, also furnish 2 studs 539827R2

4шт.

539827R2

STUD

ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

rear wheel hub clamp stud

8шт.

4

383581R1

WHEEL (STEERING)

WHEEL, 38 in. rear

2шт.
