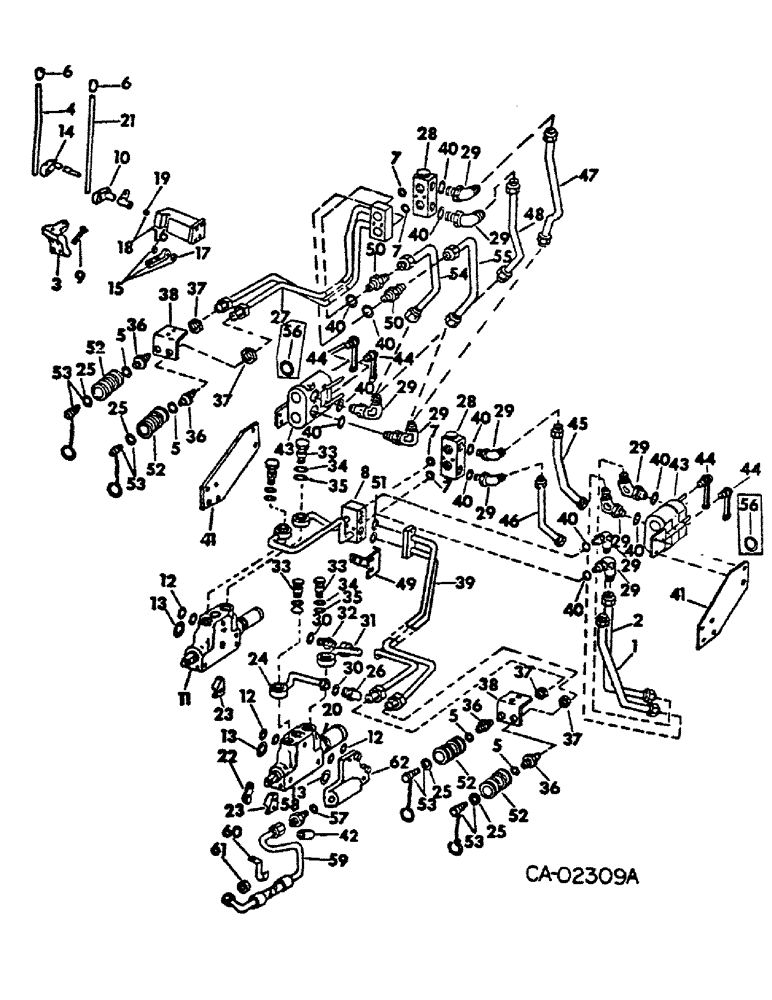

Запчасти Case IH 966 (10-37) - HYDRAULICS, AUXILIARY VALVES AND TUBES, FRONT AND REAR (07) - HYDRAULICS

535027R91

PARTS ACCESSORY, left front manifold, tractors equipped w/single or double auxiliary hydraulic valve and check valve, consists of all unmarked parts, and those marked unit A

1шт.

65359C91

PARTS ACCESSORY, left front manifold, tractors equipped w/single or double auxiliary hydraulic valve and without check valve, consists of all unmarked parts, and those marked unit B

1шт.

535028R92

KIT

PARTS ACCESSORY, right front manifold, tractors equipped w/double auxiliary hydraulic valve and check valve, consists of all unmarked parts, and those marked unit C

1шт.

65358C91

PACKAGE

PARTS ACCESSORY, right front manifold, tractors equipped w/double auxiliary hydraulic valve and without check valve, consists of all unmarked parts, and those marked unit D

1шт.

ATTACHMENT, double auxiliary hydraulic valve w/left and right front and rear outlets, for tractors not equipped w/cab, consists of all unmarked parts, and those marked unit E

1шт.

ATTACHMENT, double auxiliary hydraulic valve w/left and right front and rear outlets and check valve on each rear outlet, for tractors not equipped w/cab, consists of all unmarked parts, and those marked unit F

1шт.

1

535029R1

TUBE ASSY, LH coupler upper, units B and E

1шт.

2

535030R1

TUBE ASSY, LH coupler lower, units B and E

1шт.

3

389605R1

BRACKET

float lockout, units E and F

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

389167R1

LEVER

HANDLE, auxiliary valve control outer, units E and F

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

5

365885R1

RING

O-RING, 3/4 x 15/16 x 3/32, bulkhead union, 2 for units A, B, C, and D, 4 for units E and F

1шт.

6

389168R1

KNOB

auxiliary valve control handle, 2 for units E and F

1шт.

7

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, manifold block, 2 for units C, D, E and F

1шт.

8

398420R1

MANIFOLD

ASSY, left rear, units B, E and F

1шт.

9

20641R1

SCREW

5/16-18 x 1-3/8 hex, hd mach, adjusting screw, 2 for units E and F

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle, units E and F

1шт.

ITEM # 10, 389164R12 , LEVER BASE, THE PART ILLUSTRATED TO THE RIGHT OF IT BUT IS NOT IDENTIFIED IS INCLUDED AS ONE PIECE WITH 389164R12.

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

529910R93

LOCK VALVE

VALVE ASSY, hyd open center control, open on both sides

1шт.

11

529912R92

VALVE

ASSY, hyd open center control, open on both sides, for 1466 and 1468 tractors, 1 for units E and F, gear drive tractors, 2 for units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

For components, see list of parts under details of hydraulic control valve

1шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, open center control valve small, 4 for units E and F, gear drive tractors, 6 for units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, open center control valve large, 2 for units E and F, gear drive tractors, 3 for units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units E and F

1шт.

15

384111R91

SUPPORT

ASSY, double control lever tube inner, units E and F

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/8 hex, hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, units E and F

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube, units E and F

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, units E and F

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, units E and F

1шт.

20

529911R93

LOCK VALVE

VALVE ASSY, hyd open center control, closed on one side

1шт.

20

61082C91

VALVE

ASSY, hyd open center control, closed on one side, for 1466 and 1468 tractors, units E & F, gear drive tractors, for components, see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex, hd cap

3шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner, units E and F

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R92

ARM

ASSY, valve operating outer, units E and F

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, 2 for units E and F

1шт.

24

398433R1

TUBE

ASSY, right rear lift, units D, E and F

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

4 for units E and F

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, right rear lift tube, units D, E and F

1шт.

27

398428R1

TUBE

ASSY, right front manifold units, C, D, E and F

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

544840R91

LOCK VALVE

VALVE ASSY, double acting check, 2 for unit F, for components, see list of parts under details of double acting check valve

1шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

29

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 deg hyd flared tube adj str thd 90 deg, 2 for unit B, 6 for unit E, 8 for unit F

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, rear drops tube elbow & union, 2 for units E and F

1шт.

31

398426R1

TUBE

ASSY, right rear drop, units D, E and F

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, rear drop tube, units D, E and F

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, union inlet, 2 for units B and D, 4 for units E and F

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, manifold lift pipe union plug small, 2 for units B and D, 4 for units E and F

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, manifold lift pipe union large, 2 for units B and D, 4 for units E and F

1шт.

36

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube bulkhead, 2 for units A, B, C and D, 4 for units E and F

1шт.

37

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 C-Z bulkhead union lock, 2 for units A, B, C and D, 4 for units E and F

1шт.

38

535045R1

ANGLE, front outlet bracket, 1 for units A, B, C and D, 2 for units E and F

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, 2 per angle Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

102635

NUT,3/8"-16, G5

2 per angle 3/8"-16, G5

1шт.

39

398435R1

TUBE

ASSY, left front manifold, units A, B, E and F

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for units B and D, 8 for units E and F

1шт.

41

535033R2

BRACKET

rear coupler, 2 for units E and F

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

4шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, tractor w/heavy duty drawbar

6шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, tractors w/two point hitch cross drawbar

6шт.

Q5035

WASHER

17/32 x 1 x 16 ga

4шт.

42

534214R1

HYDRAULIC HOSE,0.61" ID x 1.25"

Oil Cooler Line Bumper, Units E and F for 966 and 1066 Hydrostatic Drive and Hydro 100 Tractors 0.61" ID x 1.25"

1шт.

43

544786R93

COUPLING

COUPLER ASSY, female, rear outlet, 2 for units E and F, for components, see list of parts under details of female coupler

1шт.

44

64757C1

PLUG

ASSY, coupler dust, rear outlet, 4 for units E and F, replaces 537589R91 and bracket, 537588R1

1шт.

45

535034R1

TUBE

ASSY, LH coupler upper, unit F

1шт.

46

535035R1

TUBE

ASSY, LH coupler lower, unit F

1шт.

47

535048R1

TUBE ASSY, RH coupler upper, unit F

1шт.

48

535049R1

TUBE ASSY, RH coupler lower, unit F

1шт.

49

398425R1

ANGLE

BRACKET, left rear manifold, units B, E and F

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2 for units B and E Hex, 3/8"-16 x 2 1/2", G5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), 2 for units B and E 3/8"

1шт.

102635

NUT,3/8"-16, G5

2 for units B & E 3/8"-16, G5

1шт.

50

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, 2 for units D and E

1шт.

51

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block cap, 2 for units A, B, E and F

1шт.

52

395150R91

COUPLING, QUICK, FEM

COUPLER ASSY, female, front outlet, 2 for units A, B, C and D, 4 for units E and F

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

53

401757R11

PLUG

ASSY, coupler dust, front outlet, 2 for units A, B, C and D, 4 for units E and F

1шт.

54

535046R1

TUBE ASSY, RH coupler upper, units D and E

1шт.

55

535047R1

TUBE ASSY, RH coupler lower, units D and E

1шт.

56

25641R1

OIL SEAL

RING, retaining, 2 for units D and E, used only w/bracket, 537588R1

1шт.

57

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

58

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

59

67303C91

PACKAGE

oil cooler supply hose service, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors, consists of (2) clip 67301C1, (1) clip 67302C1, (1) hose 536987R2 (NSS), (1) instruct 1084193R1 (NSS)

1шт.

60

67301C1

CLIP

oil cooler supply hose front, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

2шт.

60

67302C1

CLIP

oil cooler supply hose rear, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

61

393259R1

HOSE

INSULATOR, oil cooler supply tube, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

2шт.

62

531894R1

COVER

control valve end, units E and F, 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-1/8 hex-hd cap

2шт.

381782R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

SCREW, 3/8-16 x 5-7/8 hex-hd cap

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, rear outlet, not part of attachments

1шт.
