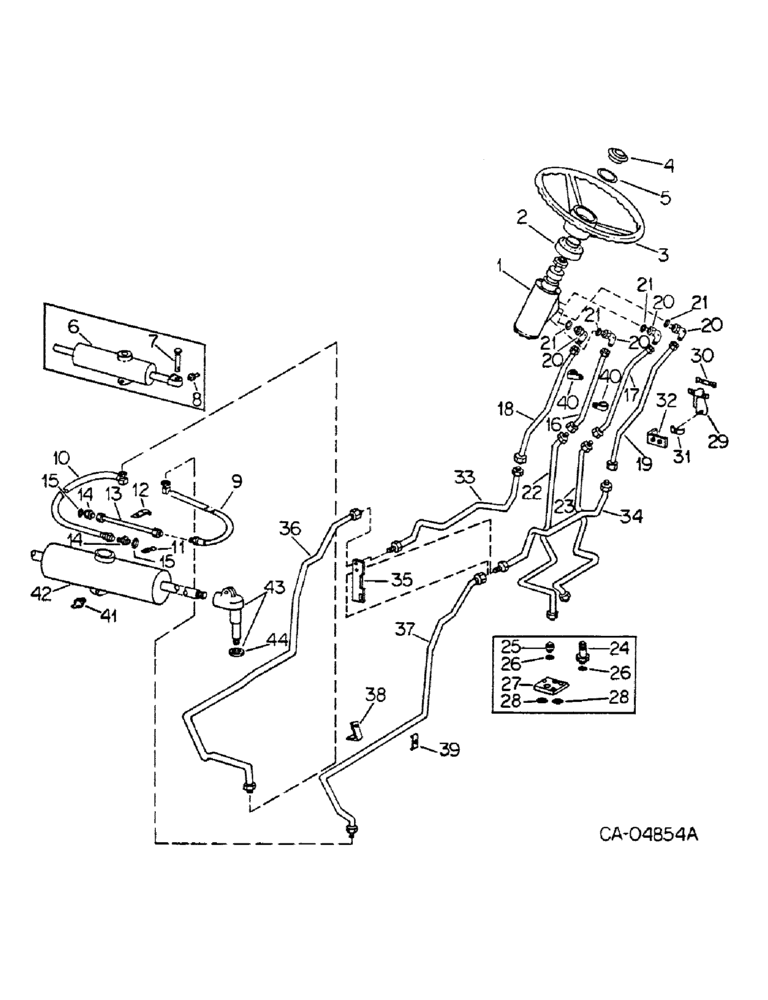

Запчасти Case IH 966 (10-21) - HYDRAULICS, POWER STEERING, HYDROSTATIC DRIVE (07) - HYDRAULICS

1

70111C93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, replaces 534994R92 pump, for components, see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

382587R1

SEAL

power steering hand pump shaft

1шт.

3

385156R1

WHEEL (STEERING)

WHEEL, 16 in. diameter steering

1шт.

3

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

4

68837C1

CAP

steering wheel

1шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

6

533279R93

CYLINDER BLOCK

CYLINDER ASSY, hyd power steering, for components, see list of parts under details of power steering cylinder, hydro 100 tractors w/serial no. 12694 & below, order steering service package 64519C91

1шт.

6

533279R94GV

STEERING CYLINDER

Value, Steering Cylinder

1шт.

7

533580R2

PIN,25.3mm OD x 142.24mm L

cylinder mount

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , used w/533279R93 cylinder only 1/4" x 1 1/2"

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1-8/27 PTF str lub, used w/533279R93 cylinder only

1шт.

9

537828R1

HOSE ASSY.,9.53mm ID x 577.85mm L, SAE 100R1

HOSE ASSY, power steering LH

1шт.

10

536032R2

HYDRAULIC HOSE,9.53mm ID x 22.75mm L, SAE 100R1

- Power steering, RH 9.52 mm ID x 577.80 mm, SAE 100R1 Class 7

1шт.

11

533578R2

CLAMP

tube

1шт.

12

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

13

533579R2

TUBE

ASSY, cyl RH port to steering LH hose

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel

2шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 966, Serial Range: -14918

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 1066, Serial Range: -18611

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 966, Start Serial: 14919

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 1066, Start Serial: 18612

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, all hydro 100 tractors

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 966, Serial Range: -14918

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 1066, Serial Range: -18611

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 966, Start Serial: 14919

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 1066, Start Serial: 18612

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, all hydro 100 tractors

1шт.

18

534549R1

HYD TUBE

TUBE ASSY, hand pump to cyl right upper section

1шт.

19

534548R1

HYD TUBE

TUBE ASSY, hand pump to cyl left upper section

1шт.

20

531711R1

ELBOW UNION

ELBOW, 9/16-18 37 deg hyd flared tube adj str thd 90 deg

4шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

22

537830R1

TUBE ASSY, power steering pressure lower, 966, Serial Range: -14918

1шт.

22

537830R1

TUBE ASSY, power steering pressure lower, 1066, Serial Range: -18611

1шт.

22

65375C1

TUBE

ASSY, power steering pressure lower, 966, Start Serial: 14919

1шт.

22

65375C1

TUBE

ASSY, power steering pressure lower, 1066, Start Serial: 18612

1шт.

22

65375C1

TUBE

ASSY, power steering pressure lower, all hydro 100 tractors

1шт.

972555R1

CLAMP,3/8", 3/8" Bolt

pressure tube upper

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

155850H1

CLAMP,3/8", 1/4" Bolt

pressure tube lower

1шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

23

537831R1

TUBE ASSY, power steering return lower, 966, Serial Range: -14918

1шт.

23

537831R1

TUBE ASSY, power steering return lower, 1066, Serial Range: -18611

1шт.

23

65376C1

TUBE

ASSY, power steering return lower, 966, Start Serial: 14919

1шт.

23

65376C1

TUBE

ASSY, power steering return lower, 1066, Start Serial: 18612

1шт.

23

65376C1

TUBE

ASSY, power steering return lower, all hydro 100 tractors

1шт.

972555R1

CLAMP,3/8", 3/8" Bolt

power steering return tube

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

24

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel, 966, Serial Range: -14918

1шт.

24

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel, 1066, Serial Range: -18611

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel, 966, Serial Range: -14918

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel, 1066, Serial Range: -18611

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, 966, Serial Range: -14918

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, 1066, Serial Range: -18611

1шт.

27

537840R1

BLOCK

power steering manifold, 966, Serial Range: -14918

1шт.

27

537840R1

BLOCK

power steering manifold, 1066, Serial Range: -18611

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, 966, Serial Range: -14918

1шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, 1066, Serial Range: -18611

1шт.

29

537846R1

SUPPORT

ASSY, power steering tube rear

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q286

WASHER, 9/32 x 1 x .048

1шт.

30

537842R1

CLAMP

ASSY, power steering tubes rear

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

535307R1

CLAMP

tube

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

65379C1

BRACKET ASSY, upper tube mounting, 966, Start Serial: 14919

1шт.

32

65379C1

BRACKET ASSY, upper tube mounting, 1066, Start Serial: 18612

1шт.

32

65379C1

BRACKET ASSY, upper tube mounting, hydro 100 tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

33

537837R1

HYD TUBE

TUBE ASSY, power steering center section RH

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 adj str thd fitting lock

1шт.

34

537836R1

HYD TUBE

TUBE ASSY, power steering center section LH

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 adj str thd fitting lock

1шт.

35

537839R1

SUPPORT, power steering center section bulkhead

1шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

36

537832R1

HYD TUBE

TUBE ASSY, power steering front section and cylinder right turn

1шт.

124939

NUT,Jam, 9/16"-18, G5

9/16-NF jam type 5

1шт.

37

537835R1

HYD TUBE

TUBE ASSY, power steering front section and cylinder left turn

1шт.

124939

NUT,Jam, 9/16"-18, G5

9/16-NF jam type 5

1шт.

38

537844R1

BRACKET

ASSY, power steering tube support front channel

1шт.

39

535307R1

CLAMP

power steering tube bracket

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

40

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 966, Start Serial: 14919

1шт.

40

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 1066, Start Serial: 18612

1шт.

40

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, hydro 100 tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

41

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

42

63864C91

CYLINDER

ASSY, hyd power steering, for components, see list of parts under details of power steering cylinder, hydro 100 tractors, Start Serial: 12695

1шт.

43

71820C91

END

ball joint rod, use w/cylinder 63864R91

1шт.

614451C1

BLADE

WASHER, 1-1/32 x 1-3/4 x .105 znd

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14 slt. thick hex

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex w/nylon insert

1шт.

44

71822C1

SEAL

dust, use w/cylinder 63864C91

1шт.
