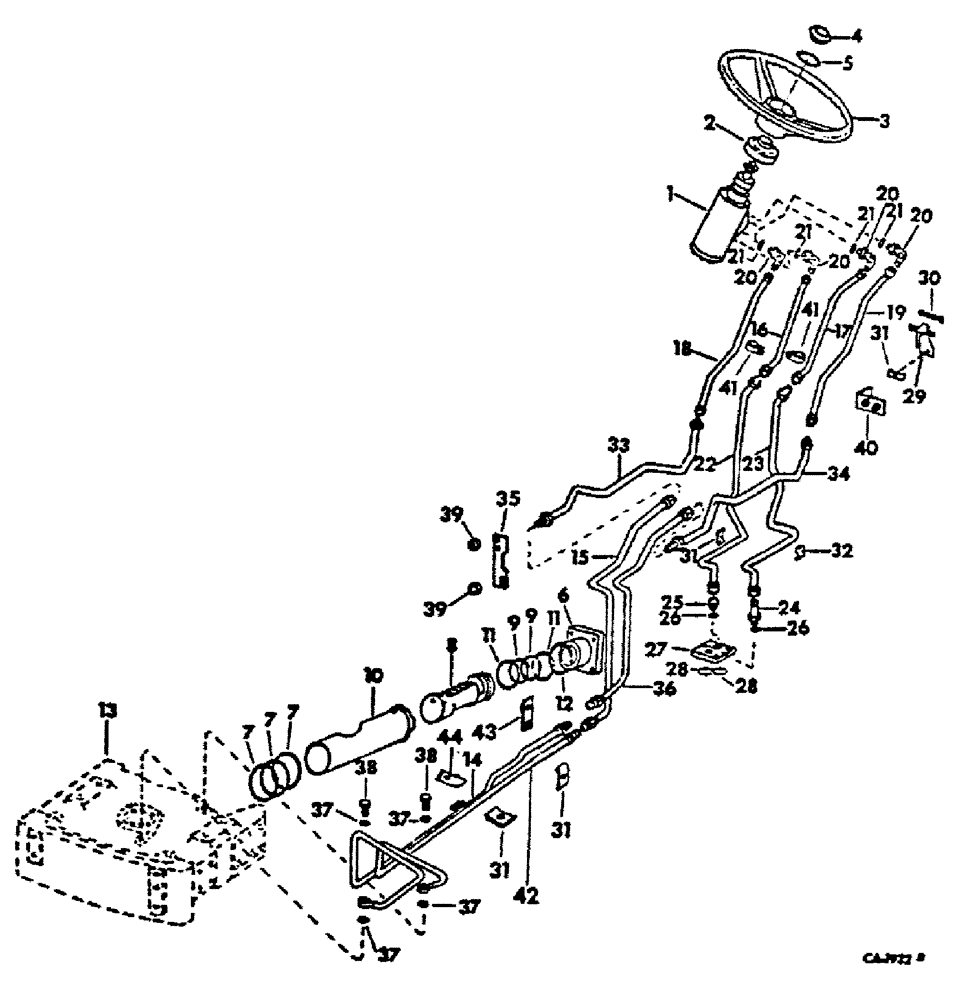

Запчасти Case IH 966 (10-13) - HYDRAULICS, POWER STEERING, 766, 966, 1066, 1466 & HYDRO 100 TRACTOR W/ TRICYCLE FRONT UPPER BOLSTER (07) - HYDRAULICS

1

70112C93

HYDRAULIC STEERING

PUMP ASSY, hyd power steering hand, replaces 535231R92 pump, for components, see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

382587R1

SEAL

power steering hand pump shaft

1шт.

3

385156R1

WHEEL (STEERING)

WHEEL, 16 in. diameter steering

1шт.

3

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

4

68837C1

CAP

steering wheel

1шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

6

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

183544R1

WASHER

15/32 x 7/8 x 1/8 hardened

4шт.

7

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16

3шт.

8

379364R1

PISTON

power steering

1шт.

9

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

2шт.

10

367805R2

SLEEVE CYLINDER

SLEEVE, steering cylinder

1шт.

11

378651R1

SEALING RING

RING, rack piston

2шт.

12

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8

1шт.

13

NSS

NOT SOLD SEPARAT

BOLSTER ASSY, upper, refer to front axle and bolster listing, group 14

1шт.

14

70324C1

TUBE

ASSY, valve to bolster front section

1шт.

15

65996C1

TUBE ASSY, front section right turn, 766 tractors

1шт.

15

537872R1

HYD TUBE

TUBE ASSY, front section right turn, 966, 1066, 1466 and hydro 100 tractors

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 766, Serial Range: -7665

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 966, Serial Range: -14918

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 1066, Serial Range: -18611

1шт.

16

534582R1

HYD TUBE

TUBE ASSY, power steering pressure upper section, 1466, Serial Range: -12802

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 766, Start Serial: 7666

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 966, Start Serial: 14919

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 1066, Start Serial: 18612

1шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section, 1466, Start Serial: 12803

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 766, Serial Range: -7665

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 966, Serial Range: -14918

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 1066, Serial Range: -18611

1шт.

17

534547R1

TUBE ASSY, power steering return upper section, 1466, Serial Range: -12802

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 766, Start Serial: 7666

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 966, Start Serial: 14919

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 1066, Start Serial: 18612

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section, 1466, Start Serial: 12803

1шт.

18

534549R1

HYD TUBE

TUBE ASSY, hand pump to right upper section

1шт.

19

534548R1

HYD TUBE

TUBE ASSY, hand pump to left upper section

1шт.

20

531711R1

ELBOW UNION

ELBOW, 9/16-18, 37 deg. hyd. flared tube adj. str. thd., 90 deg.

4шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

22

537833R1

HYD TUBE

TUBE ASSY, power steering pressure lower, 766, Serial Range: -7665

1шт.

22

537833R1

HYD TUBE

TUBE ASSY, power steering pressure lower, 966, Serial Range: -14918

1шт.

22

537833R1

HYD TUBE

TUBE ASSY, power steering pressure lower, 1066, Serial Range: -18611

1шт.

22

537833R1

HYD TUBE

TUBE ASSY, power steering pressure lower, 1466, Serial Range: -12802

1шт.

22

65373C1

TUBE ASSY.

TUBE ASSY, power steering pressure lower, 766, Start Serial: 7666

1шт.

22

65373C1

TUBE ASSY.

TUBE ASSY, power steering pressure lower, 966, Start Serial: 14919

1шт.

22

65373C1

TUBE ASSY.

TUBE ASSY, power steering pressure lower, 1066, Start Serial: 18612

1шт.

22

65373C1

TUBE ASSY.

TUBE ASSY, power steering pressure lower, 1466, Start Serial: 12803

1шт.

23

537834R1

HYD TUBE

TUBE ASSY, power steering return lower, 766, Serial Range: -7665

1шт.

23

537834R1

HYD TUBE

TUBE ASSY, power steering return lower, 966, Serial Range: -14918

1шт.

23

537834R1

HYD TUBE

TUBE ASSY, power steering return lower, 1066, Serial Range: -18611

1шт.

23

537834R1

HYD TUBE

TUBE ASSY, power steering return lower, 1466, Serial Range: -12802

1шт.

23

65374C1

TUBE ASSY.

TUBE ASSY, power steering return lower, 766, Start Serial: 7666

1шт.

23

65374C1

TUBE ASSY.

TUBE ASSY, power steering return lower, 966, Start Serial: 14919

1шт.

23

65374C1

TUBE ASSY.

TUBE ASSY, power steering return lower, 1066, Start Serial: 18612

1шт.

23

65374C1

TUBE ASSY.

TUBE ASSY, power steering return lower, 1466, Start Serial: 12803

1шт.

24

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

UNION, 9/16-18 C-Z 37 deg. hyd. flared tuve long swivel

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg. hyd. flared tub short swivel

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

27

537840R1

BLOCK

power steering manifold, replaces 537841R1

1шт.

NLS

NO LONGER SERVICED

3шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

29

537846R1

SUPPORT

ASSY, power steering tube rear

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q286

WASHER, 9/32 x 1 x .048

1шт.

30

537842R1

CLAMP

ASSY, power steering tubes rear

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

535307R1

CLAMP

tube

3шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

535306R1

CLAMP

ASSY, tube

1шт.

33

537837R1

HYD TUBE

TUBE ASSY, power steering center section RH

1шт.

34

537836R1

HYD TUBE

TUBE ASSY, power steering center section LH

1шт.

35

537839R1

SUPPORT, power steering center section bulkhead

1шт.

36

65995C1

TUBE ASSY, front section left turn, 766 tractors

1шт.

36

537871R1

TUBE ASSY, front section left turn, 966, 1066, 1466 and hydro 100 tractors

1шт.

37

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

4шт.

38

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

39

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 adj. str. thd. fitting lock

2шт.

40

65379C1

BRACKET ASSY, upper tube mounting, 766, Start Serial: 7666

1шт.

40

65379C1

BRACKET ASSY, upper tube mounting, 966, Start Serial: 14919

1шт.

40

65379C1

BRACKET ASSY, upper tube mounting, 1066, Start Serial: 18612

1шт.

40

65379C1

BRACKET ASSY, upper tube mounting, 1466, Start Serial: 12803

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

41

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 766, Start Serial: 7666

1шт.

41

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 966, Start Serial: 14919

1шт.

41

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 1066, Start Serial: 18612

1шт.

41

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube, 1466, Start Serial: 12803

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

42

70325C1

TUBE

ASSY, rear port

1шт.

43

70326C1

STRAP ASSY, tube front

1шт.

44

70327C1

BRACKET ASSY, tube

1шт.
