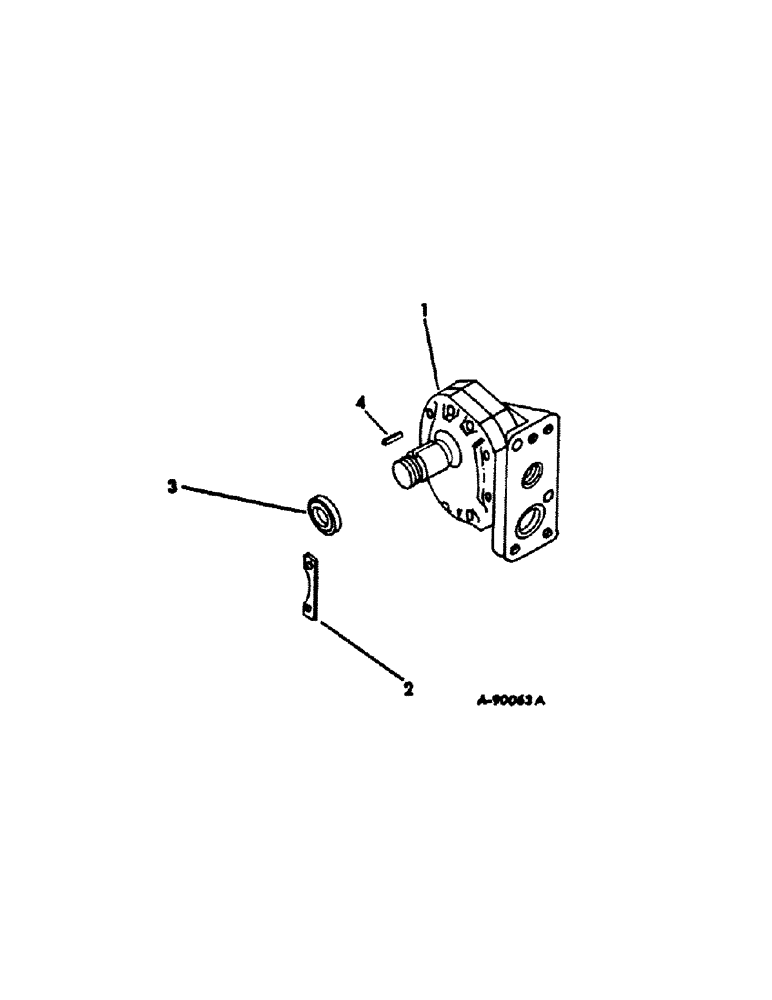

Запчасти Case IH 966 (10-11) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULICS

1

527397R92

HYDRAULIC PUMP

PUMP ASSY, hydraulic, includes ref nos. 2, 3 and 4

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 527397R92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

528174R1

SCREW

5/16-18 special hex-hd cap

2шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

63687C1

KIT

PACKAGE, hydraulic pump o-ring & gasket, replaces 383530R93, consists of (1) diaphram seal (NSS), (1) gasket (NSS), (1) gasket (NSS), (1) diaphram (NSS), (1) plate (NSS), (1) seal (NSS), (1) instruction sheet (NSS)

1шт.
