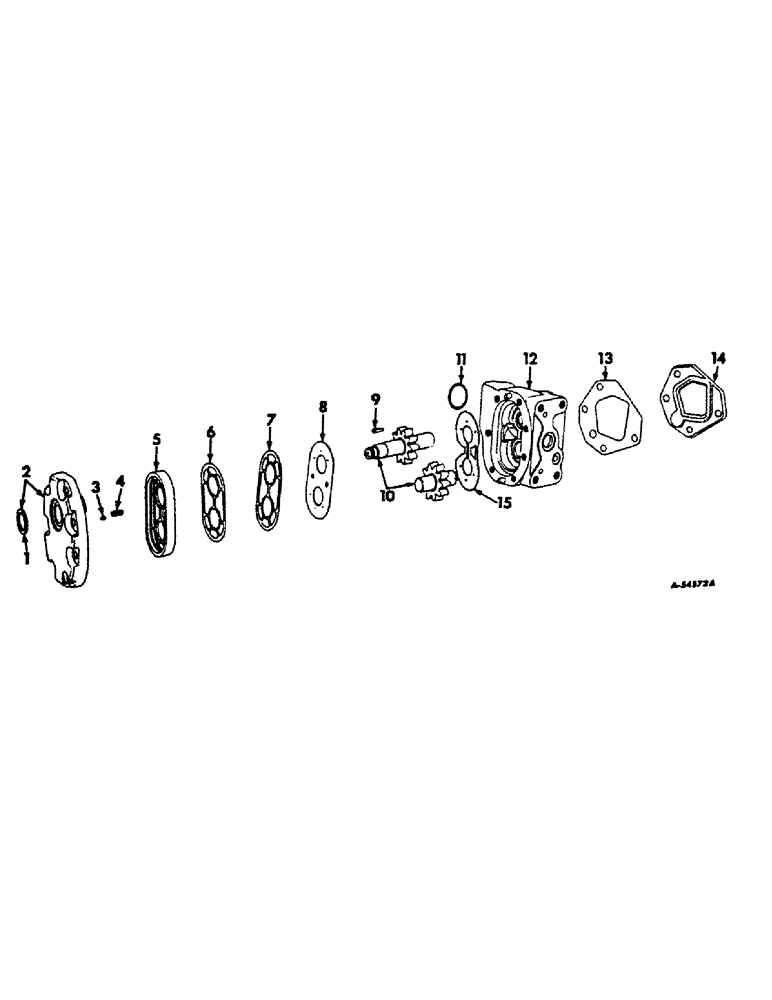

Запчасти Case IH 966 (10-07) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 12 GPM (07) - HYDRAULICS

373964R94

PUMP

ASSY, hydraulic, for replacement order 70194C91 or 70933C91 pump

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package

1шт.

6

GASKET, protector, not serviced separately order o-ring and gaskest package

1шт.

7

GASKET, protector, not serviced separately order o-ring and gasket package

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package

1шт.

9

370942R1

KEY

5/32 x 13/32 sq-parallel

1шт.

10

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY W/BUSHINGS, pump, not serviced separatley order pump assembly

1шт.

13

GASKET, implement pump rear cover, not serviced separately order o-ring and gasket package

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

PLATE, thrust, not serviced separately order o-ring and gasket package

1шт.

373969R94

GASKET KIT

PACKAGE, hydraulic pump o-ring and gasket service

1шт.

Consists of (1) diaphragm 626276C1 (NSS), (1) gasket 67449C1 (NSS), (1) gasket 631016C1 (NSS), (1) gasket 371560R1 (NSS), (1) plate 397824R1 (NSS), (1) oil seal 373244R91, (1) o-ring 252739R1, (1) o-ring 252483R1, (1) o-ring 272739R1, (1) o-ring 254691R1, (1) o-ring 352221R1, (1) seal 67448C1 (NSS), (1) instruct 1014097R3 (NSS), (1) envelope 1014099R3 (NSS)

1шт.
