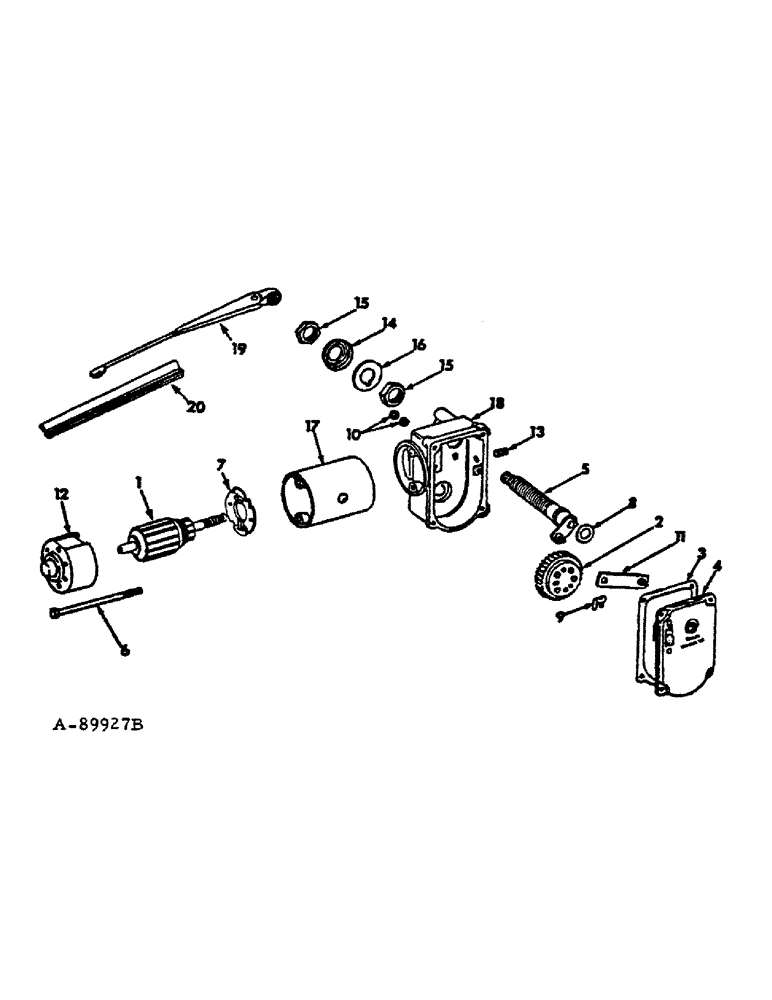

Запчасти Case IH 966 (13-57) - SUPERSTRUCTURE, WINDSHIELD WIPER MOTOR, TRACTORS WITH CUSTOM CAB (05) - SUPERSTRUCTURE

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper, composed of ref nos 1 through 18

1шт.

1

534758R1

ARMATURE

ASSY

1шт.

2

299450C91

GEAR

AND DRIVE PLATE ASSY

1шт.

3

299447C1

GASKET

cover

1шт.

4

399482R1

COVER

wiper

1шт.

5

399485R1

SHAFT

ASSY, pivot

1шт.

6

534760R1

SCREW

2шт.

7

534759R1

WIPER

KIT, brush plate repair, consists of, (1) plate assy (NSS), (4) brush assy (NSS), (2) screw (NSS), (2) spring (NSS), (1) instru- tion (NSS)

1шт.

8

219699R1

WASHER

bowed

1шт.

9

85037R1

CLIP

link spring

1шт.

10

178992

NUT

terminal screw

2шт.

11

399483R1

LINK

connections

1шт.

12

CAP ASSY, commutator end, not serviced separately, order motor assy, 39195R92

1шт.

13

399489R1

SCREW,Hdls, 1/4" - 28 x 3/4"

set-armature end play

1шт.

14

399490R1

SPACER

outer

1шт.

15

299460C1

NUT

mounting stud

2шт.

16

299459C1

GASKET

1шт.

17

(Not serviced separately), order motor assy, 391195R92

1шт.

18

(Not serviced separately), order motor assy, 391195R92

1шт.

19

404242R1

ARM

ASSY, wiper

1шт.

20

346909C1

WIPER

BLADE ASSY, wiper

1шт.
