Запчасти Case IH 966 (13-24) - SUPERSTRUCTURE, DELUXE TRACTOR CAB (05) - SUPERSTRUCTURE

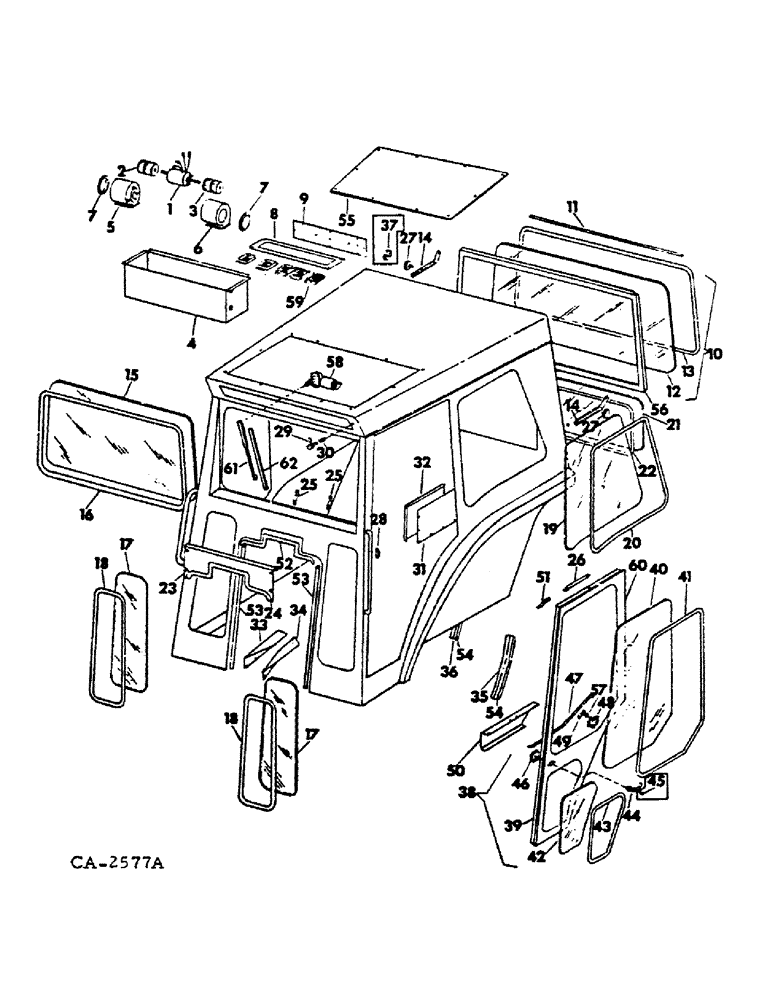

Схема запчастей Case IH 966 - (13-24) - SUPERSTRUCTURE, DELUXE TRACTOR CAB (05) - SUPERSTRUCTURE
10
21
46
26
1
20
56
40
30
54
36
7
12
42
14
17
44
38
29
23
57
22
53
61
50
14
54
18
49
51
2
37
33
9
27
27
4
48
58
60
5
13
19
47
62
34
45
16
41
24
11
55
43
53
25
35
32
15
39
8
52
25
6
7
18
3
31
17
28
59

Артикул

Название

Примечание

Количество

1

539053R1

MOTOR

pressure

1шт.

2

539054R1

RIM

WHEEL, blower, clockwise

1шт.

3

539055R1

RIM

WHEEL, blower, counter clockwise

1шт.

4

539799R1

HOUSING ASSY, blower

1шт.

5

539800R1

HOUSING ASSY, blower wheel RH

1шт.

6

539801R1

HOUSING ASSY, blower wheel LH

1шт.

7

539802R1

RING, inlet

1шт.

8

539803R1

PANEL, louver

1шт.

9

539806R1

PANEL ASSY, switch

1шт.

10

69550C91

WINDOW ASSY, rear, replaces 539831R91

1шт.

11

SEAL, rear window hinge, 51.20 in. long, purchase locally

1шт.

12

539124R1

GLASS

rear window

1шт.

13

SEAL, rear window glass molding, 139-1/8 in. long, purchase locally

1шт.

14

539113R1

ARM, sector

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

4шт.

107816

NUT, 3/8-16 stamped

2шт.

15

539125R1

GLASS

windshield

1шт.

16

SEAL, windshield glass molding, 124-1/4 in. long, purchase locally

1шт.

17

539108R1

GLASS

lower front

2шт.

18

SEAL, lower front glass molding, 75-7/8 in. long, purchase locally

2шт.

19

539126R1

GLASS

rear quarter

2шт.

20

SEAL, rear quarter glass molding

2шт.

21

539110R1

GLASS

lower rear, 766, Serial Range: -7551

1шт.

21

539110R1

GLASS

lower rear, 966, Serial Range: -13642

1шт.

21

539110R1

GLASS

lower rear, 1066, Serial Range: -15924

1шт.

21

539110R1

GLASS

lower rear, 1466, Serial Range: -11757

1шт.

21

539110R1

GLASS

lower rear, 1468, Serial Range: -7374

1шт.

21

66480C1

GLASS

lower rear, 766, Start Serial: 7552

1шт.

21

66480C1

GLASS

lower rear, 966, Start Serial: 13643

1шт.

21

66480C1

GLASS

lower rear, 1066, Start Serial: 15925

1шт.

21

66480C1

GLASS

lower rear, 1466, Start Serial: 11758

1шт.

21

66480C1

GLASS

lower rear, 1468, Start Serial: 7375

1шт.

22

SEAL, lower rear glass molding, 86-1/4 in. long for glass, 539110R1, 64 in. long for glass, 66480C1, purchase locally

1шт.

23

109176C1

PANEL ASSY, front cowl, replaces 539298R1

1шт.

SCREW, 1/4-28 x 1/2 hex-hd w/neo washer

6шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

6шт.

274634

ROD

NUT, 14/-28 lock

6шт.

24

SEAL, front cowl panel, 24.80 in. long, purchase locally

1шт.

25

539815R1

STRAP, stiffener

2шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 cr-rec pan head cap

2шт.

26

539118R1

ARM ASSY.

CHECK, sector arm door

2шт.

539121R1

SPRING WASHER

spring

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

27

109430C1

KNOB

rear window sector arm adj., replaces 539299R1

2шт.

28

392801R2

CATCH

STRIKER, door latch

2шт.

191983

SCREW, 1/4-20 x 5/8 cr-rec-fl-hd w/ext tooth lock washer Cross Pan Hd, 1/4"-20 x 5/8", w/LW

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

29

539120R1

HANDLE, filter lock

1шт.

23554R1

WASHER

17/32 x 7/8 x 16 ga

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

30

539119R1

SPRING, filter lock handle

1шт.

31

539300R1

POCKET, tool

1шт.

32

539301R1

PLATE ASSY, backing

1шт.

109567C1

SPACER

4шт.

33

539303R1

PLATE, RH kick

1шт.

34

539302R1

PLATE, LH kick

1шт.

35

539816R1

PANEL, rear side seal LH

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

539817R1

PANEL, rear side seal RH

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

397000R1

HOOK, coat, 766, Serial Range: -7551

1шт.

37

397000R1

HOOK, coat, 966, Serial Range: -13642

1шт.

37

397000R1

HOOK, coat, 1066, Serial Range: -15924

1шт.

37

397000R1

HOOK, coat, 1466, Serial Range: -11757

1шт.

37

397000R1

HOOK, coat, 1468, Serial Range: -7374

1шт.

23981R1

SCREW, 10-16 x 5/8 C-Z cr-rec-fl-hd cap

2шт.

38

65059C91

DOOR

ASSY, RH

1шт.

38

65058C91

DOOR ASSY, LH

1шт.

425639

SCREW W/EXT TOOTH LOCKWASHER, 5/16-24 X 5/8 hex-hd cap

18шт.

39

SEAL, door weather, 163 in. long, purchase locally

2шт.

40

539123R1

GLASS

upper door

2шт.

41

SEAL, upper door glass molding, 115 in. long, purchase locally

2шт.

42

539109R1

GLASS

lower door

2шт.

43

SEAL, lower door glass molding, 50 in. long, purchase locally

2шт.

44

862084R93

HANDLE

outside door, replaces 67785C91

2шт.

16915R1

SCREW W/EXT TOOTH LOCK WASHER, 10-32 x 3/4 cr-rec-ov-hd mach

4шт.

45

539117R1

LOCK CYLINDER

CYLINDER ASSY, lock, 766, Start Serial: 9225

2шт.

45

539117R1

LOCK CYLINDER

CYLINDER ASSY, lock, 966, Start Serial: 17492

2шт.

45

539117R1

LOCK CYLINDER

CYLINDER ASSY, lock, 1066, Start Serial: 23571

2шт.

45

539117R1

LOCK CYLINDER

CYLINDER ASSY, lock, 1466, Start Serial: 15260

2шт.

45

539117R1

LOCK CYLINDER

CYLINDER ASSY, lock, 1468, Start Serial: 9056

2шт.

142365R1

RING

retainer snap

2шт.

46

539116R1

LOCK

LATCH, inside door RH

1шт.

46

539115R1

LATCH

inside door LH

1шт.

47

539112R1

ROD, RH remote control

1шт.

47

539111R1

ROD, LH remote control

1шт.

445213

SPRING

NUT, 1/4 push on spring med

2шт.

48

539114R1

HANDLE, remote control

2шт.

160284

SCREW, 12-24 x 5/8 cr-rec slt-pan-hd mach

4шт.

131184

CONNECTING LINK

WASHER, no. 12 reg lock

4шт.

49

862106R2

HANDLE

door remote

2шт.

37-3210

PIN,1/8" x 5/8"

1/8 x 5/8 chamfered str

2шт.

50

539819R1

PANEL, door inner RH

1шт.

50

539818R1

PANEL, door inner LH

1шт.

51

539820R1

CATCH

door check spring

2шт.

539821R1

SPACER

spring catch

2шт.

160684

SCREW,Cross Pan Hd, 5/16" - 18 x 5/8"

5/16-18 x 1/2 slt-cr-rec-pan hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

52

SEAL, front cowl panel top, 32 in. long, purchase locally

1шт.

53

SEAL, front cowl panel side, 31 in. long, purchase locally

2шт.

54

SEAL, rear side panel, 16-1/4 in. long, purchase locally

2шт.

55

65057C1

PLATE, plenum cover

1шт.

56

69551C1

FRAME ASSY, rear window, replaces 539814R1

1шт.

57

116447R1

PLATE, escutcheon

2шт.

58

537026R91

MOTOR

ASSY, windshield wiper

1шт.

59

65063C1

LOUVER, panel

5шт.

60

109178C1

DOOR

FRAME, RH door, replaces 65061C1

1шт.

60

109182C1

DOOR

FRAME, LH door, replaces 65060C1

1шт.

61

346909C1

WIPER

BLADE ASSY, wiper

1шт.

62

404242R1

ARM

ASSY, wiper

1шт.

Выбрано товаров: 113
