Запчасти Case IH 940 (2-044) - LP FUEL FILTER AND 4001AA REGULATOR, 4001AA REGULATOR (03) - FUEL SYSTEM

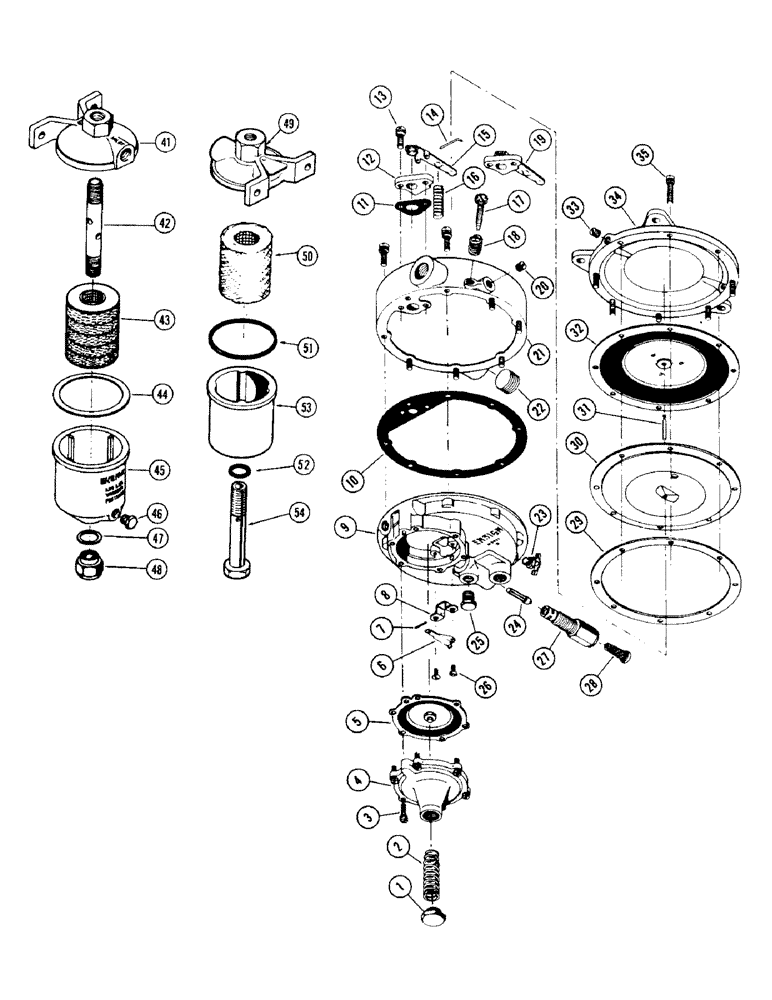

Схема запчастей Case IH 940 - (2-044) - LP FUEL FILTER AND 4001AA REGULATOR, 4001AA REGULATOR (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

B50112

RETAINER - spring, pressure regulator

1шт.

2

B50111

SPRING - pressure regulator

1шт.

3

B50035

SCREW - cover and body

13шт.

4

B50110

COVER - pressure regulator

1шт.

5

B50108

DIAPHRAGM - pressure regulator

1шт.

6

B50103

LEVER - valve

1шт.

7

B50104

PIVOT - valve lever

1шт.

8

B50100

SUPPORT - pivot

1шт.

9

B50099

BODY - vaporizer

1шт.

10

B50124

GASKET -, Serial Range: vaporizer-body

1шт.

11

B50126

GASKET - main valve

1шт.

12

B50125

SEAT - main valve

1шт.

13

B50037

SCREW - main valve

2шт.

14

B50159

PIN - pivot

1шт.

15

B50196

LEVER ASSY - (Includes: Ref. 11, 12 and 14)

1шт.

16

B50121

SPRING - fuel regulator

1шт.

17

B50024

SCREW - idle adjusting

1шт.

18

B50022

RETAINER - adjusting screw

1шт.

19

B50197

VALVE ASSY - main

1шт.

20

B50012

SCREW - bleed

1шт.

21

B50117

BODY - fuel regulator

1шт.

22

B50045

X

PLUG - 3/4" socket hd.

1шт.

23

B50025

X

DRAIN COCK

1шт.

24

B50152

VALVE - needle

1шт.

25

B50113

PLUG - 1/4" pipe

1шт.

26

B50031

SCREW - pivot support

2шт.

27

B50167

FUEL INLET ASSY, Includes: Ref. 28

1шт.

28

B50168

STRAINER - inlet

1шт.

29

B50114

GASKET - partition plate

1шт.

30

A50190

PLATE - partition

1шт.

31

B50189

PIN - push, regulator diaphragm

1шт.

32

B50199

DIAPRHAGM - fuel regulator (Includes: Ref. 31)

1шт.

33

B50058

PLUG - 1/8" pipe

1шт.

34

B50123

PLATE - support

1шт.

35

B50036

SCREW - support plate

8шт.

B50057

KIT - repair (Includes: Ref. 2, 3, 5, 10, 11, 13, 16, 17, 18, 19, 24, 26, 28, 29, 31, 32 and 35)

1шт.

41

B50129

TOP - filter, parts for 08837AB

1шт.

42

B50131

STUD - filter, parts for 08837AB

1шт.

43

B50132

X

ELEMENT - filter, parts for 08837AB

1шт.

44

B50133

GASKET - filter top, parts for 08837AB

1шт.

45

B50130

BOTTOM - filter, parts for 08837AB

1шт.

46

221-651

PLUG,Hex Hd, 1/8"-27

- 1/8" pipe, parts for 08837AB filter

1шт.

47

B50134

GASKET - nut to bowl, parts for 08837AB filter

1шт.

48

B50135

NUT - filter stud, parts for 08837AB

1шт.

49

A24536

TOP - filter, parts for A24535

1шт.

50

A24616

KIT

ELEMENT - filter, parts for A24535, Includes: Ref. 51 and 52

1шт.

51

A24539

GASKET

- top to housing, parts for A24535 filter

1шт.

52

A24538

GASKET

- bolt to housing, parts for A24535 filter

1шт.

53

A24537

HOUSING - filter, parts for A24535

1шт.

54

A24541

BOLT - top to housing, parts for A24535 filter

1шт.

Выбрано товаров: 50
