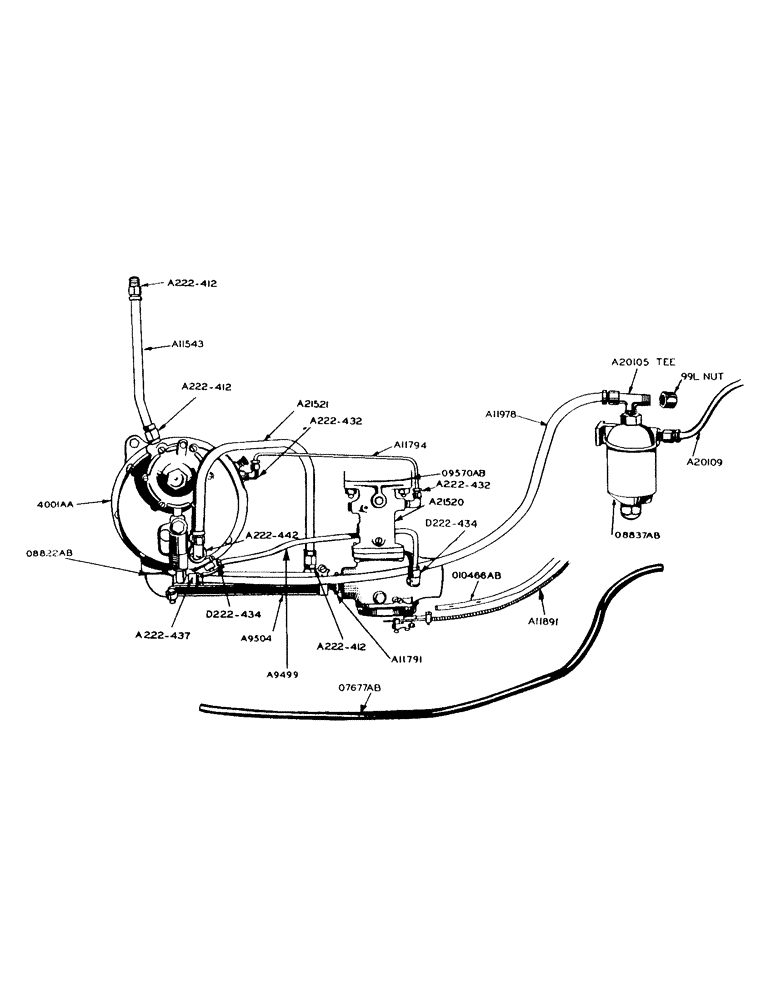

Запчасти Case IH 940 (2-042) - LP-GAS ENGINE, LIQUID FILTER, REGULATOR AND CARBURETOR, LIQUID FILTER (03) - FUEL SYSTEM

A222-437

ELBOW - (3/8" x 1/4") #89LB hi-duty, Serial Range: (A11978-regulator)

1шт.

A11978

TUBE - fuel, Serial Range: filter-regulator

1шт.

A20105

TEE - 3/8" with #99L hi-duty nut

1шт.

O7677AB

LOOM - filter to regulator tube (A11978)

1шт.

O8837AB

FILTER - liquid (Ensign #6257)

1шт.

A222-412

CONNECTOR - 1/2" tube x 3/8" P.T. #88LB (1 on A21521, 2 on A11543), regulator

3шт.

A222-432

ELBOW - 1/4" tube x 1/8" P.T. #89LB (for A11794), regulator

2шт.

A222-442

ELBOW - 1/2" tube x 3/8" P.T. #89LB (for A21521), regulator

1шт.

A9499

TUBE - regulator, Serial Range: balance-carburetor

1шт.

A9504

SPARE PART

HOSE - vapor connection, regulator

1шт.

#4-3/4 hose clamp, regulator

2шт.

A11543

SEAL

TUBE - regulator water inlet to water pump

1шт.

A11791

NIPPLE - 1" hose, vapor hose to carburetor, regulator

1шт.

A11794

TUBE - idle fuel, regulator

1шт.

A21518

BRACKET - regulator support, upper

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, regulator

2шт.

A21519

BRACKET - regulator support, lower

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, regulator

1шт.

A21521

TUBE -, Serial Range: regulator-block

1шт.

1/4" galvanized std. pipe tee, regulator

1шт.

1/4" x 1" close nipple, regulator

1шт.

D222-434

ELBOW - 5/16" tube x 1/8" P.T. #89LB (for A9499), regulator

2шт.

4001AA

REGULATOR - LP gas (Ensign #8793)

1шт.

5/16" x 1-1/4" N.F. hex. bolt w/nut and lockwasher, regulator

3шт.

O8822AB

ELBOW - vapor, Serial Range: hose-regulator

1шт.

A195-103

WASHER - 3/8" zinc plated, choke cable in dash, carburetor

2шт.

A11891

CONTROL

- choke, carburetor

1шт.

A21520

CARBURETOR - LP gas (Ensign #9320)

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/nut and lockwasher, carburetor

2шт.

O9570AB

X

GASKET - carburetor to inlet manifold

1шт.

O10466AB

LOOM - flexible choke control, carburetor

1шт.
