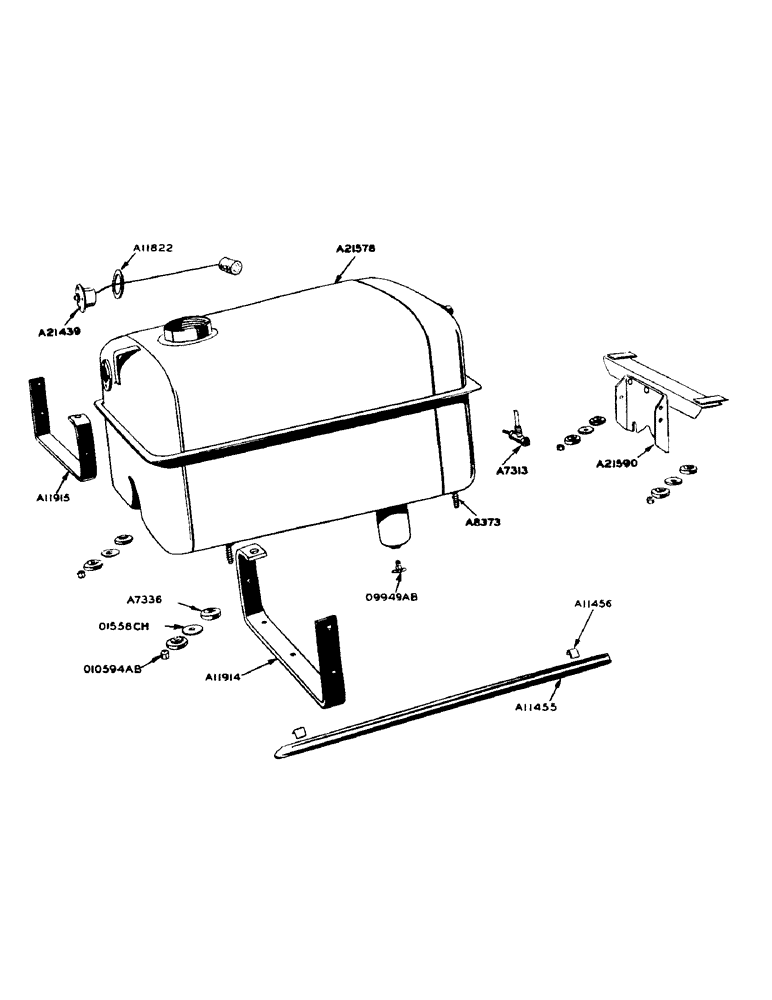

Запчасти Case IH 940 (2-022) - DIESEL ENGINE, FUEL TANKS AND SUPPORTS, SEE PAGE 8 & 9 OF (03) - FUEL SYSTEM

A7313

VALVE

- needle

1шт.

A7336

CUSHION

- support

8шт.

A8373

STUD

- fuel tank mounting

4шт.

A11455

MOLDING

- trim

2шт.

A11456

LOCK PIN

CLIP - trim molding

4шт.

A11822

GASKET

- fuel gauge sender

1шт.

A11914

SUPPORT - fuel tank and battery, R.H.

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

1/2" x 1-1/4" N.F. hex. bolt w/nut and lockwasher

1шт.

A11915

SUPPORT - fuel tank and battery, L.H.

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

A21439

X

SENDER - fuel gauge

1шт.

#10 - 32 x 3/8" rhd. mach. screw (zinc plated) w/lockwasher

5шт.

A21578

TANK - fuel

1шт.

A21590

SUPPORT - front

1шт.

O9949AB

X

VALVE - water drain

1шт.

O10594AB

X

NUT - mounting stud stop

4шт.

O1558CH

X

WASHER - mounting stud

4шт.
