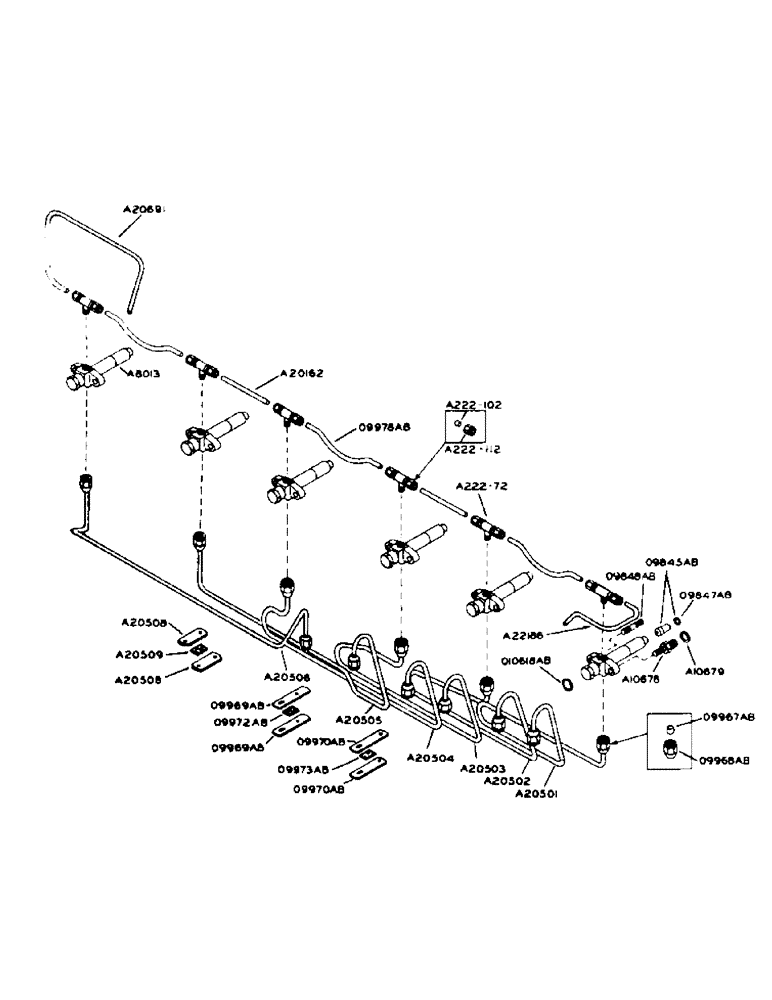

Запчасти Case IH 940 (2-020[1]) - DIESEL ENGINE, SLEEVES AND NUTS FOR FUEL TUBES (03) - FUEL SYSTEM

A222-42

ELBOW - #69FL, 1/4" tube and 1/8" P.T., Serial Range: A20691-A20637

1шт.

A222-72

TEE - #72FL, 1/4" tube x 1/8" P.T., for injector leak-off tubes

6шт.

A8013

NOZZLE INJECTION

NOZZLE - injector, w/holder and gasket

6шт.

A10678

STUD

- nozzle holder, large

6шт.

A10679

GASKET

- for A10678 stud

6шт.

A20162

TUBE

- injector leak-off, upper

2шт.

A20501

TUBE

- fuel injector, w/sleeves and nuts, no. 1 cylinder

1шт.

A20502

TUBE

- fuel injector, w/sleeves and nuts, no. 2 cylinder

1шт.

A20503

TUBE

- fuel injector, w/sleeves and nuts, no. 3 cylinder

1шт.

A20504

TUBE

- fuel injector, w/sleeves and nuts, no. 4 cylinder

1шт.

A20505

TUBE

- fuel injector, w/sleeves and nuts, no. 5 cylinder

1шт.

A20506

TUBE

- fuel injector, w/sleeves and nuts, no. 6 cylinder

1шт.

A20508

CLAMP

- injector tube (2 tubes)

2шт.

#10 x 1" N.C. rhd. mach. screw w/nut and lockwasher

2шт.

A20509

CUSHION

- between A20508 clamp and injector tubes

2шт.

A20541

CLIP

- for A22186 leak-off tube

1шт.

A20691

TUBE - injector leak-off to relief valve

1шт.

A22186

TUBE

- fuel pump leak-off to #1 cylinder

1шт.

O9845AB

X

NOZZLE - injector w/09847AB gasket

6шт.

O9847AB

X

GASKET - injector nozzle

6шт.

O9848AB

X

STUD - nozzle holder, small

6шт.

3/8" N.F. hex. nut

6шт.

O9967AB

X

SLEEVE - fuel injector tube coupling

12шт.

O9968AB

NUT - fuel injector tube coupling

12шт.

O9969AB

X

CLAMP - injector tube (3 tubes)

4шт.

#10 x 1" N.C. rhd. mach. screw w/hex. nut and lockwasher

4шт.

O9970AB

X

CLAMP - injector tube (5 tubes)

2шт.

#10 x 1" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9972AB

X

CUSHION - for 09969AB clamp

4шт.

O9973AB

X

CUSHION - for 09970AB clamp

2шт.

O9978AB

X

TUBE - injector leak-off, lower

3шт.

O10604AB

X

CHECK VALVE - fuel pump leak-off

1шт.

O10618AB

X

GASKET - injector pressure adjusting screw protective cap

6шт.

222-102

SLEEVE,1/4" Tube

#60FL for A20162, A20691, A22186 and 09978AB tubes (Replaces A222-102) 1/4" Tube

1шт.

87017024

TUBE NUT,1/2"-24

NUT - #61FL (1/4") for A20162, A20691, A22186 and 09978AB tubes (Replaces A222-112)

1шт.
