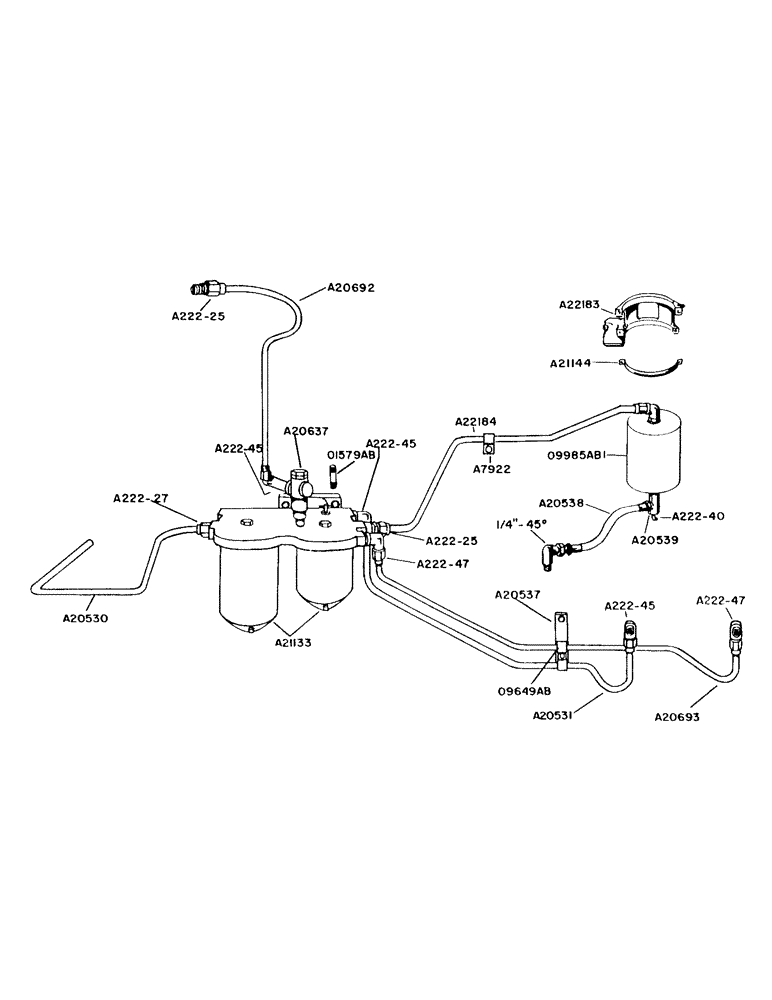

Запчасти Case IH 940 (2-018[1]) - DIESEL ENGINE, FINAL STAGE FUEL FILTER AND TUBES (03) - FUEL SYSTEM

A222-25

CONNECTOR - #68FL (5/16" tube x 1/4" P.T.) for A20692 tube

1шт.

A222-27

CONNECTOR - #68FL (3/8" tube x 1/4" P.T.) for A20530 tube

1шт.

A222-45

ELBOW - #69FL (5/16" tube x 1/4" P.T.) for A20531 and 20692 tubes

3шт.

A222-47

ELBOW - #69FL (3/8" tube x 1/4" P.T.) for A20693 tube

2шт.

A20530

TUBE - fuel tank to first stage filter

1шт.

A20531

TUBE

- second stage filter to fuel pump

1шт.

A20537

SUPPORT - for 09649AB clips

1шт.

1/4" x 3/8" fillister hd. mach. screw (N.C.) w/shakeproof int. tooth lockwasher, Serial Range: (support-clip)

1шт.

3/8" x 3/4" N.C. hex. bolt w/shakeproof int. tooth lockwasher, Serial Range: (support-block)

1шт.

A20637

LOCK VALVE

VALVE - relief

1шт.

A20692

TUBE - leak-off, relief valve to fuel tank

1шт.

A20693

TUBE

- first stage, Serial Range: filter-pump

1шт.

A21133

FILTER

- fuel, first and second stage (assembly)

1шт.

O1579AB

STUD - A21077 filter, Serial Range: head-block

2шт.

3/8" N.F. hex. nut w/lockwasher

2шт.

O9649AB

CLIP - A20531 and A20693 fuel tubes

2шт.

A222-25

CONNECTOR - #68FL (5/16" tube x 1/4" P.T.) A22184 to filter head

1шт.

A222-40

ELBOW - #69FL (1/8" tube x 1/8" P.T.) on A20539

1шт.

A222-45

ELBOW - #69FL (5/16" tube x 1/4" P.T.) A22184 to final filter

1шт.

A7922

CLIP

- A22184 tube (to decompressor housing)

1шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to pump 0.38" ID x 8.50"

1шт.

1/4" 45 degree street elbow, brass, Serial Range: (hose-filter)

1шт.

A20539

FITTING

UNION - 90 degree adapter, connects A20538, Serial Range: hose-pump

1шт.

A21144

CLAMP

- final stage filter

2шт.

5/16" x 7/8" N.C. hex. bolt w/lockwasher

4шт.

A22183

HOUSING - decompressor control and final stage filter bracket

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

A22184

TUBE

- second stage to final stage filter

1шт.

O9985AB1

FILTER - final stage

1шт.

A222-103

SLEEVE - #60FL (5/16") for A20531, A20692 and A22184 tubes

1шт.

A222-104

SLEEVE - #60FL (3/8") for A20530 and A20693 tubes

1шт.

A222-113

NUT - #61 FL (5/16") for A20531, A20692 and A22184 tubes

1шт.

A222-114

NUT - #61FL (3/8") for A20530 and A20693 tubes

1шт.
