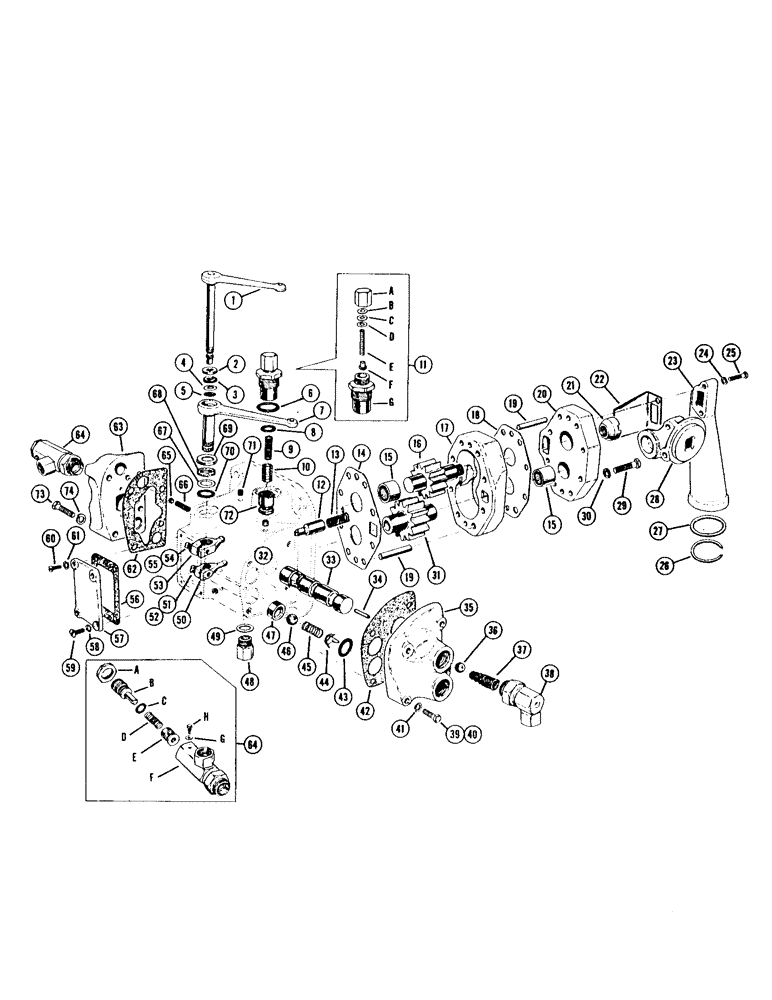

Запчасти Case IH 940 (1-3[JDS]) - A23384 DUAL VALVE AND PUMP ASSEMBLY (08) - HYDRAULICS

1

A23387

LEVER

AND SHAFT - spool shifter, upper

1шт.

2

O8399AB

X

RETAINER - spool shifter shaft upper felt washer

1шт.

3

O8398AB

X

FELT WASHER - spool shifter shaft, upper

1шт.

4

O8568AB

X

WASHER - spool shifter seal, for 08398AB felt

1шт.

5

O8569AB

X

"O" RING - spool shifter shaft, upper

1шт.

6

O8346AB

X

"O" RING - relief valve nut

1шт.

7

A23357

SHAFT

LEVER AND SHAFT - spool shifter, lower

1шт.

8

A23369

O-RING

"O" RING - pilot relief valve piston

1шт.

9

A23082

SPRING

- pilot relief valve

1шт.

10

A23366

PISTON

- pilot relief valve

1шт.

11a

A23370

NUT

- relief valve

1шт.

11b

A23602

X

SHIM - brass (.048") (original equipment only) (use A23371)

1шт.

11c

A23371

SHIM

- steel (.048") relief valve

2шт.

11d

A23372

SHIM,.010" Thk

Steel, Relief valve .010" Thk

1шт.

11e

A23367

SPRING

- relief valve

1шт.

11f

A23368

VALVE POPPET

VALVE - relief

1шт.

11g

A23365

X

BODY - relief valve

1шт.

12

O8808AB

PLUNGER - spool

2шт.

13

O8809AB

X

SPRING - spool plunger

2шт.

14

A23380

LARGE PLATE

PLATE - wear, rear

1шт.

15

A23378

NEEDLE BEARING,Needle, 25.4mm ID x 31.62mm OD x 25.4mm W

BEARING - needle, hydraulic pump shaft

4шт.

16

A23392

GEAR

AND SHAFT - hydraulic pump drive

1шт.

17

A10335

BODY

- hydraulic pump

1шт.

18

A23381

LARGE PLATE

PLATE - wear, front

1шт.

19

A23396

DOWEL,3/8" x 2 1/4"

PIN - hydraulic pump body dowel

2шт.

20

A23394

COVER - hydraulic pump body

1шт.

21

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

22

O8901AB

PLATE - oil deflector

1шт.

23

6069A

ELBOW - hydraulic pump inlet

1шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

15-668

BOLT (MACHINE)

BOLT - 3/8" x 4-1/4" N.C. hex

4шт.

26

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

27

3764AA

X

SCREEN ASSEMBLY - hydraulic pump intake

1шт.

28

A23397

ELBOW - hydraulic pump filter

1шт.

29

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A23389

GEAR

AND SHAFT - hydraulic pump idler

1шт.

32

A23353

BODY

- hyd. valve (consists of body and Refs. 47, 71 and 72)

1шт.

33

O8394AB

X

SPOOL - hyd. valve (consists of body and Refs. 47, 71 and 72)

2шт.

34

O8411AB

X

SPOOL- auxiliary

4шт.

35

6072A

X

HEAD - R.H., hydraulic valve

1шт.

36

O7210AB

X

BALL - steel, hydraulic valve return (1/2")

4шт.

37

O8414AB

X

SPRING - return ball check

4шт.

38

3769AA

X

ADAPTER - swivel angle

3шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

O8564AB

X

GASKET - valve head, R.H.

1шт.

43

O8377AB

X

"O" RING - outlet ball check

4шт.

44

O8410AB

X

GUIDE - outlet ball check spring

4шт.

45

O8734AB

X

SPRING - outlet ball check

4шт.

46

O8296AB

X

BALL - valve outlet (5/8")

4шт.

47

O8409AB

X

SEAT - outlet ball check

4шт.

48

A8732

CAP

- hydraulic float opening

1шт.

49

A7478

GASKET

- float valve opening cap

1шт.

50

O8396AB

X

ARM - spool shifter, small

1шт.

51

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- 1/4" x 3/4" N.F. slotted fillister hd. machine

1шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

53

O8554AB

X

ARM - spool shifter, large

1шт.

54

72-416

SCREW

- 1/4" x 1" N.F. slotted fillister hd. machine

1шт.

55

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

56

O8563AB

GASKET - body cap

1шт.

57

A7353

CAP

- hydraulic dual valve body

1шт.

58

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

59

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- 1/4" x 3/4" N.C. flat hd. machine

1шт.

60

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4" x 3/4" N.C. rhd. machine

3шт.

61

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

62

O8565AB

X

GASKET - valve head, L.H.

1шт.

63

A23395

HEAD - L.H., hydraulic valve

1шт.

64

4198AA

X

REGULATOR - hydraulic cylinder speed

1шт.

64a

O9172AB

X

NUT - cylinder speed regulator screw

1шт.

64b

O9170AB

X

SCREW - cylinder speed regulator

1шт.

64c

O9171AB

X

"O" RING - cylinder speed regulator screw

1шт.

64d

O8734AB

X

SPRING - cylinder speed regulator

1шт.

64e

O9169AB

X

PISTON - cylinder speed regulator

1шт.

64f

4197AA

X

BODY AND SWIVEL - speed regulator

1шт.

64g

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

64h

O9173AB

X

SCREW - stop, cylinder speed regulator

1шт.

65

O8635AB

X

BALL - relief valve (1/4")

2шт.

66

A23364

SPRING

- relief valve ball

2шт.

67

O8557AB

X

WASHER - spool shifter shaft seal, for 08555AB felt

1шт.

68

O8555AB

X

FELT WASHER - spool shifter shaft, lower

1шт.

69

O8556AB

X

RETAINER - spool shifter shaft lower felt washer

1шт.

70

O8416AB

X

"O" RING - spool shifter shaft, lower

1шт.

71

221-849

PLUG,Hex Soc, 1/8"-27

PIPE PLUG - 1/8" hex. socket hd

5шт.

72

A23354

SLEEVE

- pilot relief valve

1шт.

73

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex

4шт.

74

92-6

LOCK WASHER,3/8"

4шт.
