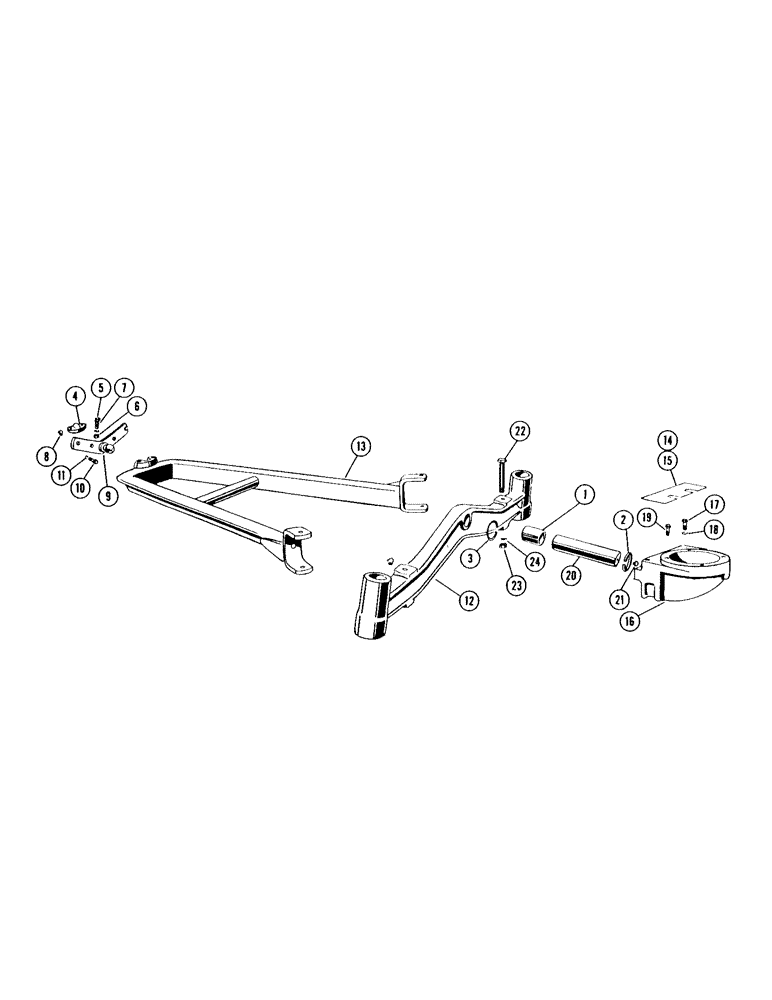

Запчасти Case IH 940 (7-32) - FRONT AXLE AND RADIUS ROD, PAGE 92 (06) - POWER TRAIN

1

A7519

X

BUSHING - pivot pin, front axle and radius rod, serial no. 8172001 and after

1шт.

2

A7610

RING, SNAP

SNAP RING - pivot pin, front, front axle and radius rod, serial no. 8172001 and after

1шт.

3

A7611

SNAP RING,#175, Ext

Ring, Snap, , pivot pin, rear, front axle and radius rod, serial no. 8172001 and after #175, Ext

1шт.

4

A7799

X

CAP - radius rod ball socket, front axle and radius rod, serial no. 8172001 and after

1шт.

5

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

- 1/2" x 3-1/4" N.F. hex, front axle and radius rod, serial no. 8172001 and after

2шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex, front axle and radius rod, serial no. 8172001 and after

2шт.

7

92-8

LOCK WASHER,1/2"

front axle and radius rod, serial no. 8172001 and after 1/2"

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln #5000, front axle and radius rod, S/N 8172001 and after 90º, 1/8" NPT x .84" lg

1шт.

9

A11487

BALL - radius rod pivot, front axle, serial no. 8172001 and after

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Front axle and radius rod, S/N 8172001 and after Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

front axle and radius rod, serial no. 8172001 and after 1/2"

4шт.

12

A20928

AXLE - front, with A7519 bushing, front axle and radius rod, serial no. 8172001 and after

1шт.

13

A21446

ROD - radius, front axle, serial no. 8172001 and after

1шт.

14

A22789

TOOL

SHIM - pedestal to radiator bracket (.005"), front axle and radius rod, serial no. 8172001 and after

1шт.

15

A22799

SHIM - pedestal to radiator bracket (.003"), front axle and radius rod, serial no. 8172001 and after

1шт.

16

A22822

PEDESTAL - front axle, radius rod, serial no. 8172001 and after

1шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Front axle and radius rod, S/N 8172001 and after Hex, 5/8"-11 x 1 3/4", G5, Full Thd

6шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front axle and radius rod, S/N 8172001 and after 5/8"

6шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Front axle and radius rod, S/N 8172001 and after Hex, 5/8"-11 x 2", G5

2шт.

20

A22823

PIN

- pivot, front axle and radius rod, serial no. 8172001 and after

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln #5000, front axle and radius rod, S/N 8172001 and after 90º, 1/8" NPT x .84" lg

1шт.

22

A22949

BOLT - radius rod and front axle, serial no. 8172001 and after

2шт.

23

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex, front axle and radius rod, serial no. 8172001 and after

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front axle and radius rod, S/N 8172001 and after 5/8"

2шт.
