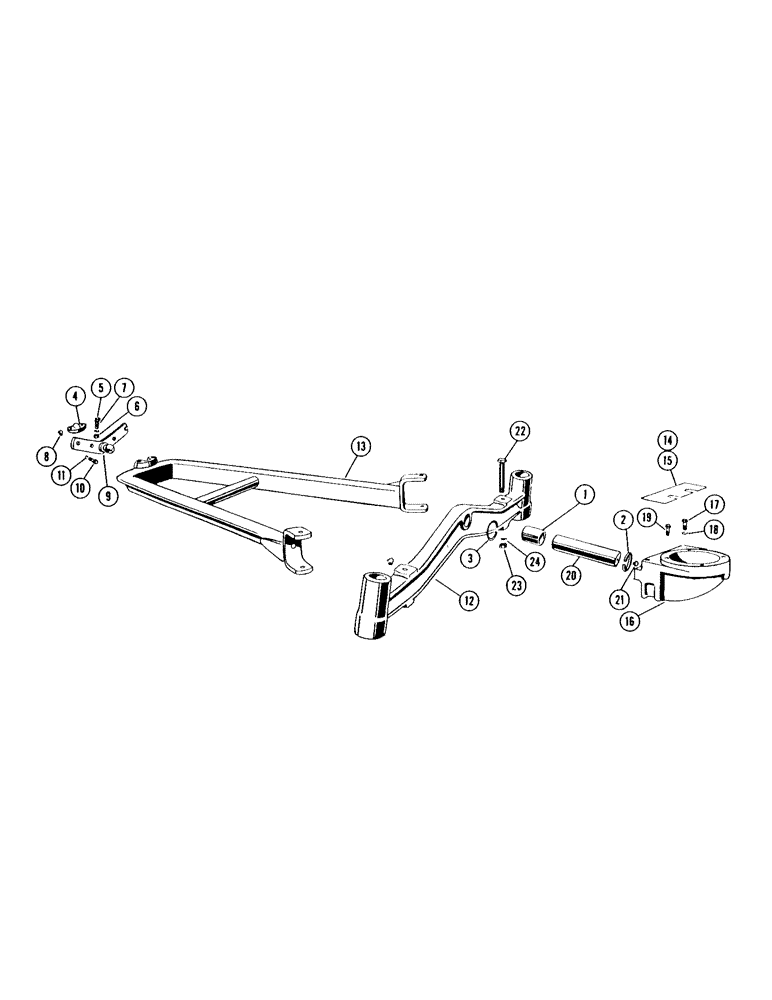

Запчасти Case IH 940 (7-32[1]) - FRONT AXLE AND RADIUS ROD SERIAL NUMBER 8172001 AND AFTER (06) - POWER TRAIN

1

A7519

X

BUSHING - pivot pin

1шт.

2

A7610

RING, SNAP

SNAP RING - pivot pin, front

1шт.

3

A7611

SNAP RING,#175, Ext

Ring, Snap, , pivot pin, rear #175, Ext

1шт.

4

A7799

X

CAP - radius rod ball socket

1шт.

5

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

- 1/2" x 3-1/4" N.F. hex

2шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln #5000 90º, 1/8" NPT x .84" lg

1шт.

9

A11487

BALL - radius rod pivot

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

A20928

AXLE - front, with A7519 bushing

1шт.

13

A21446

ROD - radius

1шт.

14

A22789

TOOL

SHIM - pedestal to radiator bracket (.005")

1шт.

15

A22799

SHIM - pedestal to radiator bracket (.003")

1шт.

16

A22822

PEDESTAL - front axle

1шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

20

A22823

PIN

- pivot

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln #5000 90º, 1/8" NPT x .84" lg

1шт.

22

A22949

BOLT - radius rod and front axle

2шт.

23

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
