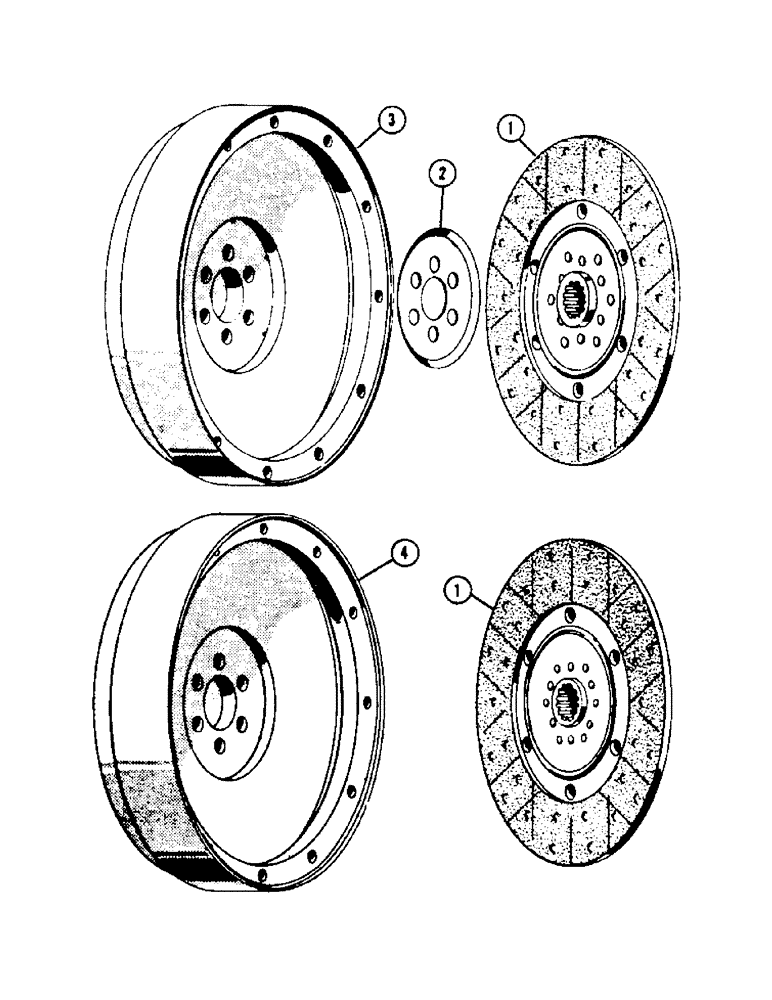

Запчасти Case IH 940 (6-29) - CLUTCH, HAND-OPERATED, PAGE 66 (06) - POWER TRAIN

1

A22895

LARGE PLATE

PLATE - clutch driving, with facings

1шт.

When new clutch plate is required on tractors equipped with the 6318A flywheel and flywheel is not equipped with oil deflector, A22735 deflector should also be ordered.

1шт.

2

A22735

DEFLECTOR - flywheel oil (prior to serial no. 8172001)

1шт.

3

6318A

FLYWHEEL (prior to serial no. 8172001)

1шт.

4

A22896

FLYWHEEL (serial no. 8172001 and after)

1шт.

4355AA

FACINGS - set of (2) clutch, with rivets for 4576AA clutch driving plate (see A22899)

1шт.

4576AA

X

PLATE - clutch driving (use A22895)

1шт.

When new clutch plate is required on tractors equipped with the 6318A flywheel and flywheel is not equipped with oil deflector, A22735 deflector should also be ordered.

1шт.

A22899

SPARE PART

FACINGS - set of (2) clutch, with rivets for A22895 clutch driving plate (see 4355AA)

1шт.

6321A

YOKE - clutch throwout (should read 6231A), parts, Figure 67

1шт.

O7614AB

X

SNAP RING - clutch shaft bearing retaining (.125" thick)

1шт.

O9508AB

SNAP RING - clutch shaft (.0835" thick)

1шт.

Only one of the three snap rings used per tractor.

1шт.

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

Only one of the three snap rings used per tractor.

1шт.

O9510AB

X

SNAP RING - clutch shaft (.0765" thick)

1шт.

Only one of the three snap rings used per tractor.

1шт.
