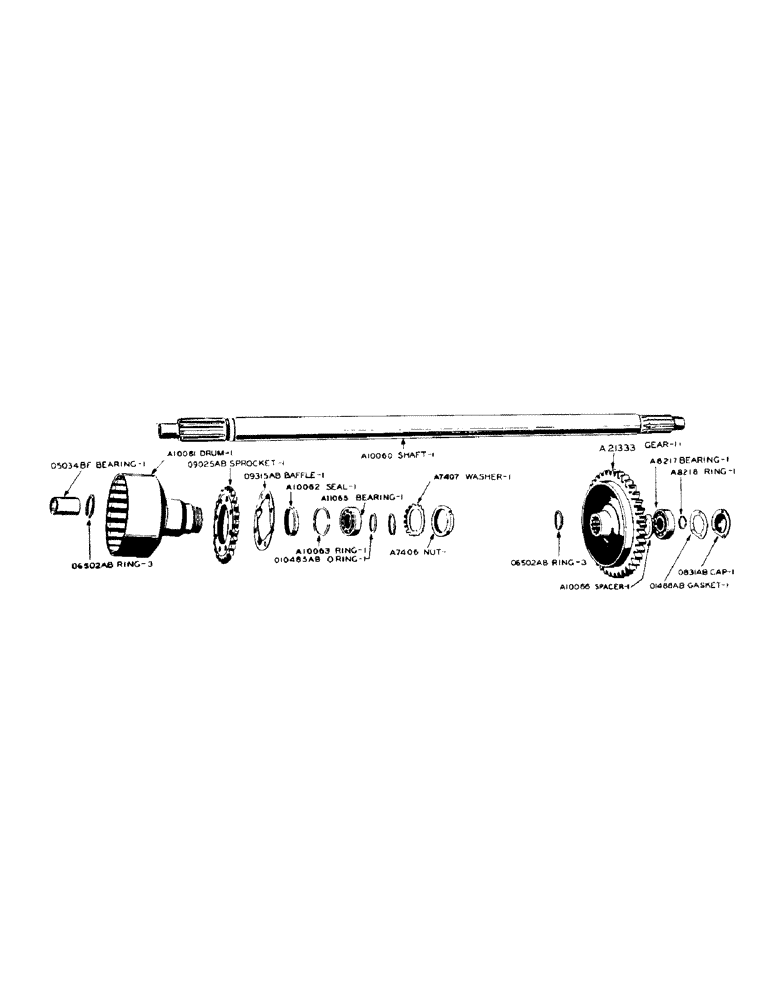

Запчасти Case IH 940 (2-107) - PTO AND HYDRAULIC DRIVE (06) - POWER TRAIN

A7406

LOCK NUT

NUT - lock, PTO clutch drum bearing

1шт.

A7407

X

WASHER - PTO clutch drum bearing lock nut

1шт.

A8217

BEARING, ROLLER, CYL

BEARING - PTO shaft, front end (Hyatt #U1206-TM)

1шт.

A8218

SNAP RING,#118, Ext

Ring, Snap, , PTO and hydraulic drive shaft, front end #118, Ext

1шт.

A10060

SHAFT - PTO and hydraulic drive

1шт.

A10061

DRUM - PTO clutch

1шт.

A10062

OIL SEAL

OIL SEAL - PTO clutch drum

1шт.

A10063

RING, SNAP

SNAP RING - PTO clutch drum bearing

1шт.

A10066

SPACER

- PTO and hydraulic drive shaft gear

1шт.

A11065

BALL BEARING,2.3622" ID x 3.7402" OD x 0.7087"

BEARING - PTO clutch drum (ND 7-3612)

1шт.

A21333

GEAR - PTO driven (for 540 RPM PTO) (see A22310)

1шт.

A23310

GEAR - PTO driven (for 1000 RPM PTO) (see A21333)

1шт.

O831AB

CAP - PTO, front

1шт.

3/8" x 5/8" N.C. hex. bolt w/lockwasher

3шт.

O1488AB

X

GASKET - front cap

1шт.

O6502AB

RING, SNAP

SNAP RING - PTO and hydraulic drive shaft

3шт.

O9025AB

SPROCKET - hydraulic pump drive (26 tooth)

1шт.

O9315AB

BAFFLE - PTO clutch oil, Serial Range: (bolts-09025AB)

1шт.

O10485AB

X

"O" RING - PTO and hydraulic drive shaft

1шт.

O5034BF

X

BEARING - pilot, on rear end of PTO and hydraulic drive shaft (Torrington #BH1616-OH)

1шт.
