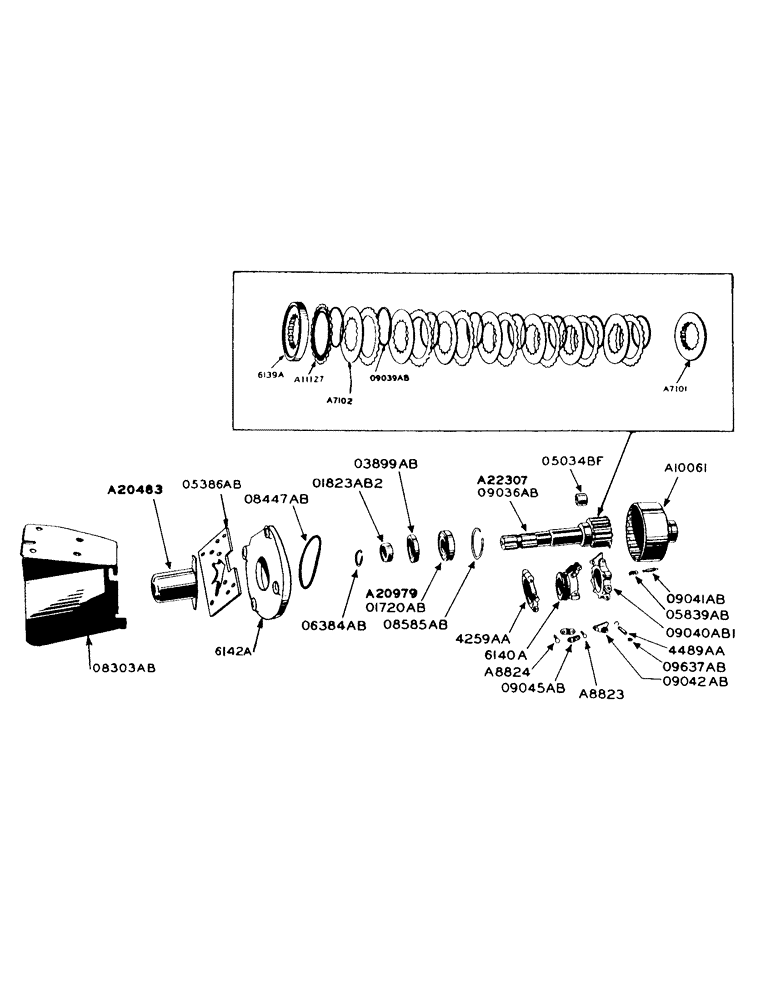

Запчасти Case IH 940 (2-104) - POWER TAKE OFF CLUTCH (06) - POWER TRAIN

A7101

PLATE

- P.T.O. clutch backing

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - P.T.O. clutch driven (steel, ground finish surface)

9шт.

A8823

PIN,6.29mm OD x 26.99mm L

- P.T.O. clutch lever link, upper

3шт.

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

- P.T.O. clutch lever link, lower

3шт.

3/32" x 1/2" cotter pin

3шт.

A10061

DRUM - P.T.O. clutch

1шт.

A11127

PLATE

- P.T.O. clutch drive (bronze circular corrugations)

10шт.

A20483

GUARD

- P.T.O. shaft, tubular

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut

2шт.

3/8" shakeproof lockwasher #4020-26

2шт.

A20979

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - P.T.O. shaft (SKF 6207C3) (for 1000 RPM PTO) (see 01720AB)

1шт.

A22307

SHAFT - P.T.O. stub (for 1000 RPM PTO) (see 09036AB)

1шт.

6139A

X

PLATE - P.T.O. clutch pressure

2шт.

6140A

X

SLEEVE - P.T.O. clutch sliding

1шт.

6141A

X

COLLAR - P.T.O. clutch throwout (use 4259AA)

1шт.

6142A

CARRIER - P.T.O. rear bearing

1шт.

4259AA

X

COLLAR - P.T.O. clutch throwout (consists of: 2 - 6141A, 2-5/16" x 1-1/4" N.F. hex. bolts and lockwashers and 2 - 010837AB nuts)

1шт.

4489AA

X

PIN - P.T.O. clutch finger (consists of pin with 2 - 09637AB rings)

3шт.

O1720AB

BEARING

- PTO shaft, rear (ND 1207) (for 540 RPM PTO) (see A20979)

1шт.

O1823AB2

X

SPACER - P.T.O. stub shaft

1шт.

O3899AB

X

OIL SEAL - P.T.O. stub shaft

1шт.

O5386AB

PLATE - P.T.O. guard mounting

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher

4шт.

O5839AB

X

SPRING - P.T.O. clutch adjusting lock pin

1шт.

O6384AB

SNAP RING - P.T.O. stub shaft

1шт.

O8303AB

X

GUARD - P.T.O.

1шт.

3/8" x 1" rhd. sq. neck bolt w/hex. nut

2шт.

3/8" shakeproof lockwasher #4020-26

2шт.

O8447AB

X

"O" RING - P.T.O. rear bearing carrier

1шт.

O8585AB

X

SNAP RING - stub shaft rear bearing carrier

1шт.

O9036AB

X

SHAFT - PTO stub (for 540 RPM PTO) (see A22307)

1шт.

O9039AB

SPRING

- P.T.O. clutch drive plate separator

10шт.

O9040AB1

X

YOKE - P.T.O. clutch adjusting

1шт.

O9041AB

X

PIN - P.T.O. clutch adjusting lock

1шт.

O9042AB

X

FINGER - P.T.O. clutch

3шт.

O9045AB

LINK - P.T.O. clutch lever

6шт.

O9637AB

X

"O" RING - retaining, for 4489AA

6шт.

O10837AB

NUT - 5/16" - 24 steel elastic stop, for bolts in 4259AA collar

2шт.

O5034BF

X

BEARING - pilot on rear end of P.T.O. and hydraulic drive shaft (Torrington #BH1616-OH)

1шт.
