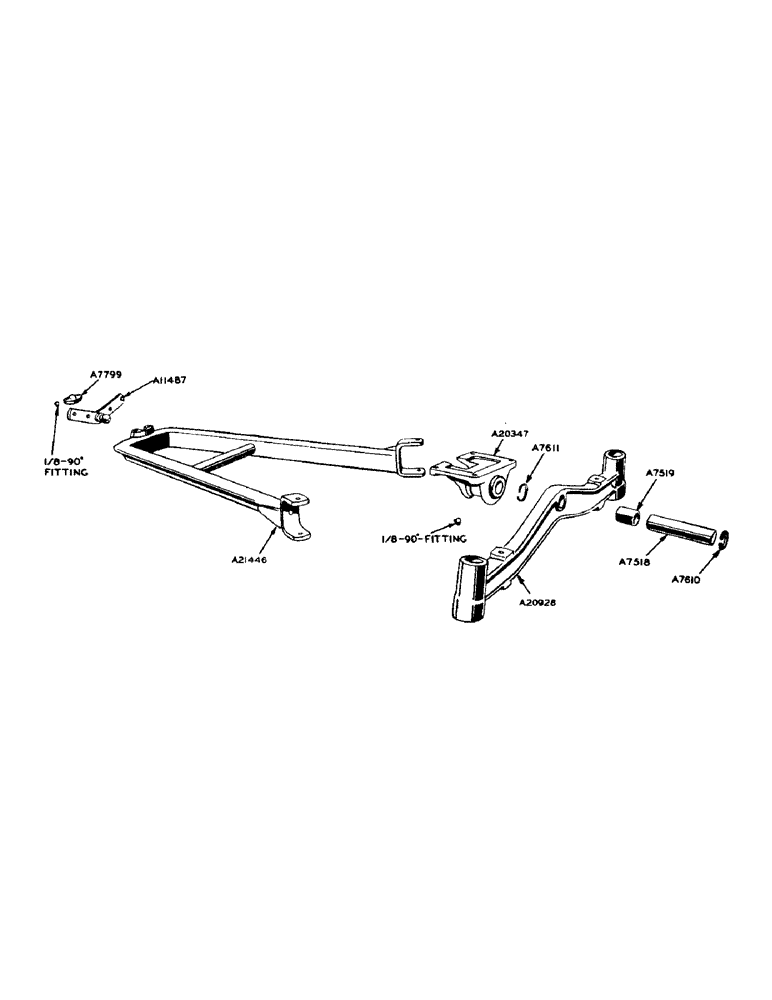

Запчасти Case IH 940 (2-092) - FRONT AXLE AND RADIUS ROD (06) - POWER TRAIN

A7518

PIN - pivot

1шт.

1/8" - 90 degree Lincoln fitting #5000

1шт.

A7519

X

BUSHING - pivot pin

1шт.

A7610

RING, SNAP

SNAP RING - pivot pin, front

1шт.

A7611

SNAP RING,#175, Ext

Ring, Snap, , pivot pin, rear #175, Ext

1шт.

A7799

X

CAP - radius rod ball socket

1шт.

1/2" x 3-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/8" - 90 degree Lincoln fitting #5000

1шт.

A11487

BALL - radius rod pivot

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

4шт.

A20347

PEDESTAL - use A21103

1шт.

A20928

AXLE - front, w/A7519 bushing

1шт.

A21103

PEDESTAL - front axle, and pivot pin (includes 1 - A7518 pivot pin, 1 - A7610 and 1 - A7611 snap rings and 4-5/8" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

A21446

ROD - radius

1шт.

5/8" x 6" N.F. hex. bolt w/nut and lockwasher

2шт.
