Запчасти Case IH 940 (2-085) - SCRAPER FOR 54" STEEL REAR WHEEL (06) - POWER TRAIN

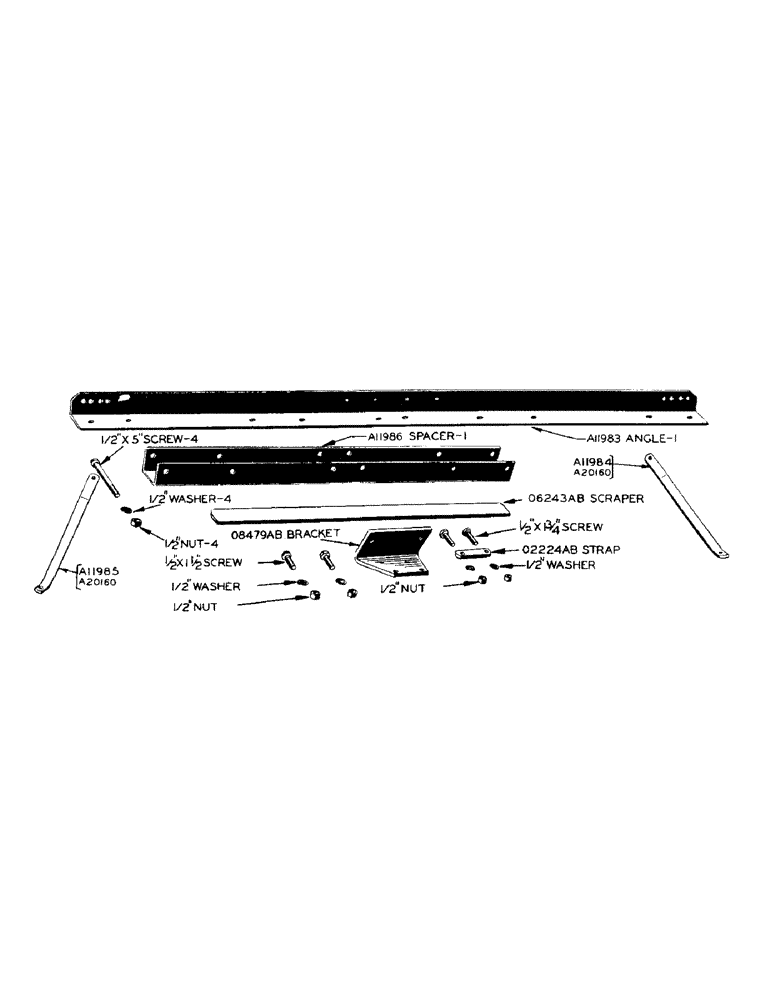

Схема запчастей Case IH 940 - (2-085) - SCRAPER FOR 54" STEEL REAR WHEEL (06) - POWER TRAIN

№

Артикул

Название

Примечание

Количество

A11983

ANGLE, scraper 80-1/8" long for A11939 rear wheel

1шт.

1/2" x 1-1/2" (NF) hex. hd. cap screw w/hex. nut and lockwasher

4шт.

A11986

SPACER - scraper angle

1шт.

1/2" x 5" (NF) hex. hd. cap screw w/hex. nut and lockwasher

4шт.

A11987M

SCRAPER ATTACHMENT - for A11939 rear wheel (machy. item)

1шт.

A20160

BRACE - scraper angle

2шт.

1/2" x 1-3/4" hex. hd. bolt w/nut and lockwasher

4шт.

O2224AB

STRAP - rear wheel scraper

4шт.

O6243AB

SCRAPER

2шт.

O8479AB

BRACKET - scraper

2шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

4шт.

1/2" x 1-3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

8шт.

A11983

ANGLE - scraper (80-1/2" long) for A11939 rear wheel w/A7105 or A7365 extension, scraper for 54" rear wheel with extension arm

1шт.

1/2" x 1-1/2" (NF) hex. hd. cap screw w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

4шт.

A11984

BRACE - R.H. scraper angle, scraper for 54" rear wheel with extension arm

1шт.

1/2" x 1-3/4" fin. hex. bolt (NF) w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

1шт.

A11985

BRACE - L.H. scraper angle, scraper for 54" rear wheel with extension arm

1шт.

1/2" x 1-3/4" fin. hex. bolt (NF) w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

1шт.

A11986

SPACER - scraper angle, scraper for 54" rear wheel with extension arm

1шт.

1/2" x 5" (NF) hex. hd. cap screw w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

4шт.

A11988

SCRAPER ATTACHMENT - for A7103, 54" wheel w/A7105 or A7365 extension (machy. item), rear with extension arm

1шт.

O2224AB

STRAP - scraper for 54" rear wheel with extension arm

8шт.

O6243AB

SCRAPER, for 54" rear wheel with extension arm

4шт.

O8479AB

BRACKET - scraper, for 54" rear wheel with extension arm

4шт.

1/2" x 1-1/2" (NF) fin. hex. bolt w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

8шт.

1/2" x 1-3/4" (NF) fin. hex. bolt w/hex. nut and lockwasher, scraper for 54" rear wheel with extension arm

16шт.

Выбрано товаров: 26
