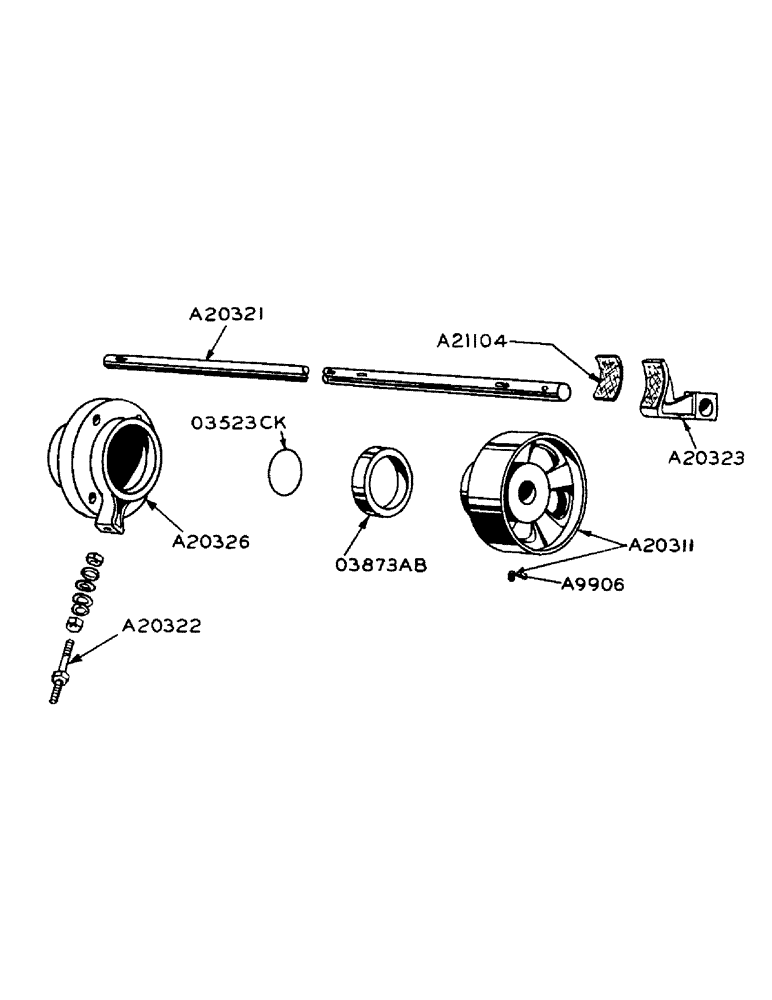

Запчасти Case IH 940 (2-080) - TRANSMISSION BRAKE (06) - POWER TRAIN

A9906

X

SET SCREW - brake pulley

2шт.

A20311

PULLEY - first reduction shaft brake (includes 2 - A9906)

1шт.

A20319

PULLEY - (use A20311)

1шт.

A20321

SHAFT - clutch throwout

1шт.

1/2" x 2" groove pin, type 5

1шт.

A20322

BOLT - bearing carrier anchor

1шт.

A20323

SHOE - brake, includes lining and rivets

1шт.

3/8" x 1-1/2" N.C. sq. hd. set screw w/hex. jam nut

2шт.

A20326

CARRIER - bearing, first reduction shaft, R.H. (includes 02879AB bearing cup)

1шт.

A21104

LINING

- brake shoe (includes rivets)

1шт.

O2879AB

X

CUP - bearing, for A20326 bearing carrier

1шт.

O3869AB

X

OIL SEAL - clutch throwout shaft

1шт.

O3873AB

X

OIL SEAL - bearing carrier

1шт.

O3523CK

X

"O" RING - brake pulley

1шт.
