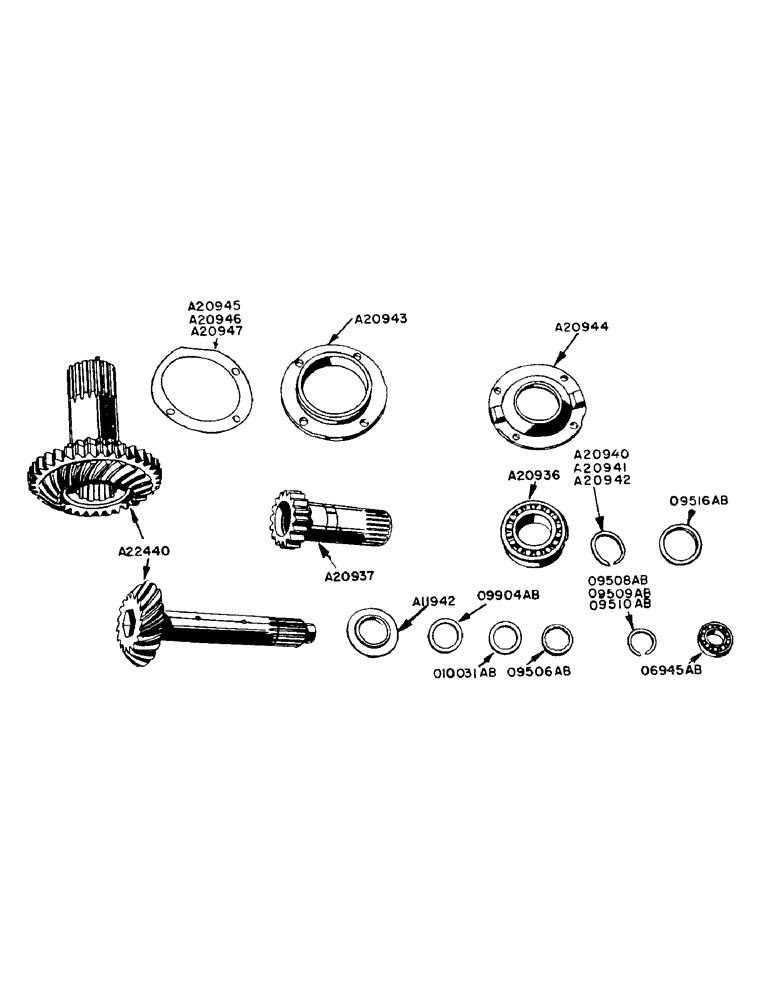

Запчасти Case IH 940 (2-068) - CLUTCH SHAFT (06) - POWER TRAIN

A11942

WASHER

- clutch shaft and P.T.O. thrust

1шт.

A20936

X

BEARING - clutch shaft, rear end (ND #45214W)

1шт.

A20937

PINION - P.T.O. drive, and sleeve w/bushings (for 540 RPM P.T.O.) (see A22308)

1шт.

A20939

OIL SEAL

- P.T.O. pinion and sleeve

1шт.

*A20940

SNAP RING - clutch shaft bearing retaining, (.112" thick)

1шт.

*A20941

SNAP RING - clutch shaft bearing retaining, (.1135" thick)

1шт.

*A20942

SNAP RING - clutch shaft bearing retaining, (.115" thick)

1шт.

A20943

CARRIER - clutch shaft bearing, rear

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

4шт.

A22308

PINION - P.T.O. drive, and sleeve, w/bushings (for 1000 RPM P.T.O.) (see A20937)

1шт.

A20944

CARRIER - clutch shaft bearing, front

1шт.

A20945

SHIM - clutch shaft bearing carrier (.012")

4шт.

A20944

CARRIER - clutch shaft bearing, front

1шт.

A20945

SHIM - clutch shaft bearing carrier (.012")

4шт.

A20946

SHIM - clutch shaft bearing carrier (.005")

3шт.

A20947

SHIM - clutch shaft bearing carrier (.003")

2шт.

A22308

PINION - P.T.O. drive, and sleeve, w/bushings (for 1000 RPM P.T.O.) (see A20937)

1шт.

A22440

SHAFT - clutch, with pinion and transmission bevel gear (see note)

1шт.

O6945AB

X

BEARING - clutch shaft pilot, flywheel end (N.D. #8506)

1шт.

O9504AB

X

OIL SEAL - clutch shaft

2шт.

O9506AB

X

COLLAR - clutch shaft thrust

1шт.

O9508AB

SNAP RING - clutch shaft (.0835" thick)

1шт.

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

O9510AB

X

SNAP RING - clutch shaft (.0765" thick)

1шт.
