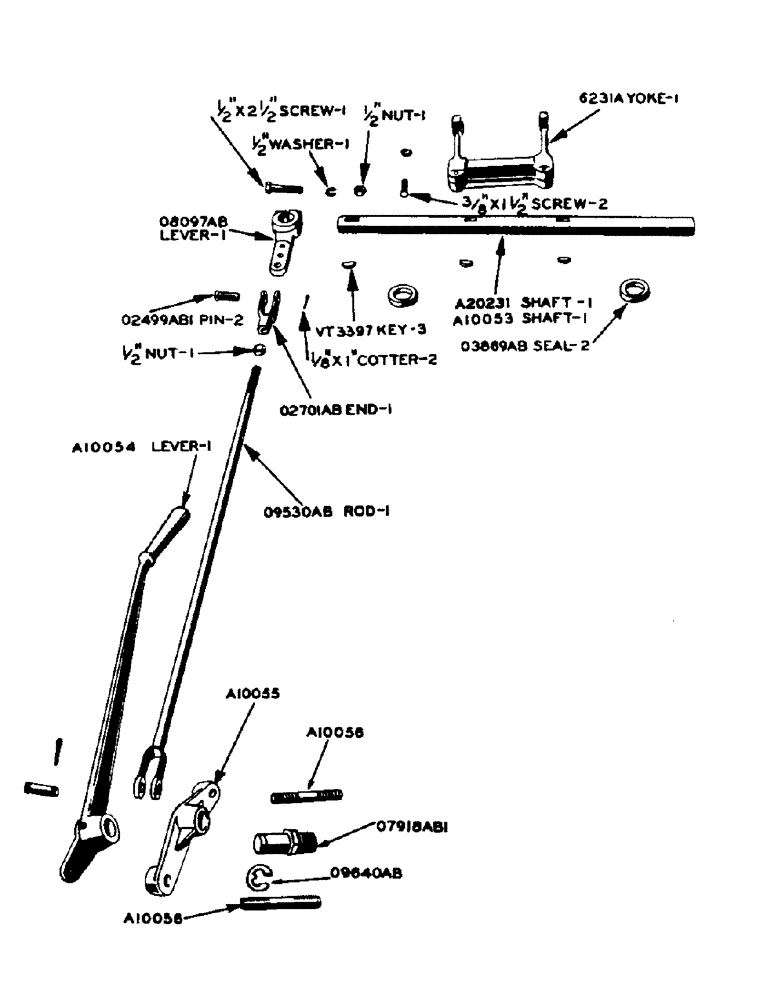

Запчасти Case IH 940 (2-067) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

A10053

SHAFT - clutch throwout (use without transmission brake)

1шт.

A10054

LEVER - hand

1шт.

1/8" str. Lincoln fitting #5000

1шт.

A10055

SUPPORT - hand lever

1шт.

A10056

STUD - hand lever support

2шт.

3/4" N.F. hex. nut w/lockwasher

2шт.

A20231

RING

SHAFT - clutch throwout (use with transmission brake)

1шт.

1/2" x 2" groove pin, type 5

1шт.

6321A

YOKE - clutch throwout

1шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

O2499AB1

X

PIN - yoke, for 09530AB rod

1шт.

O2701AB

X

YOKE - for 09530AB rod

1шт.

O3869AB

X

OIL SEAL - throwout shaft (2 used with A10053, 1 used with A20231)

2шт.

O7918AB1

STUD - hand lever pivot

1шт.

O8097AB1

LEVER SHAFT

1шт.

1/2" X 2-1/2" N.F. hex. bolt w/nut and lockwasher

1шт.

O9530AB

ROD - clutch throwout

1шт.

1/2" N.F. hex. nut

1шт.

O9640AB

X

"E" RING - hand lever pivot stud retaining

1шт.

VT3397

KEY- Woodruff, clutch throwout shaft

3шт.
