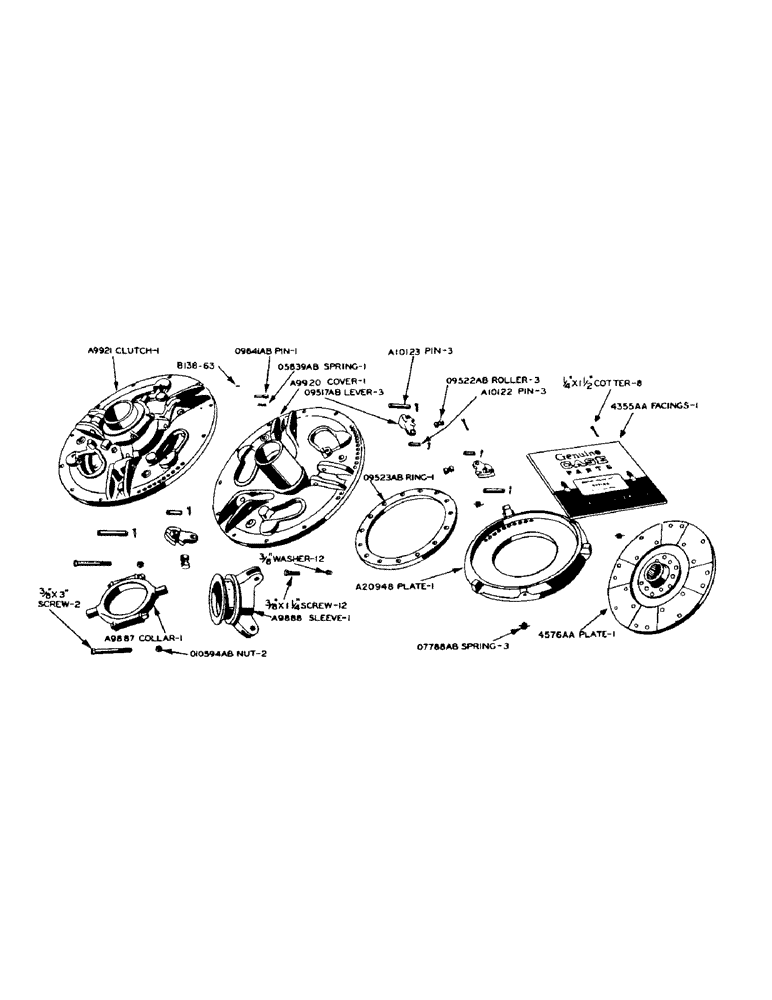

Запчасти Case IH 940 (2-066) - CLUTCH - HAND OPERATED, SEE PAGE 29 OF SUPPLEMENT (06) - POWER TRAIN

A8364

SHIM - clutch sliding sleeve collar

2шт.

A9886

COLLAR - clutch sliding sleeve (use A9887)

1шт.

A9887

COLLAR

- clutch sliding sleeve (consists of: 2 - A9886, 2 - A8364 shim, 2-3/8" x 3" N.F. hex. bolt w/2 - 010594AB nuts)

1шт.

A9888

SLEEVE

- clutch sliding

1шт.

A9920

PLATE - clutch cover

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

A9921

CLUTCH COMPLETE - less driving plate

1шт.

A10122

PIN - clutch lever guide

3шт.

1/8" x 3/4" cotter pin

3шт.

A10123

PIN - clutch, lever pivot

3шт.

1/8" x 3/4" cotter pin

3шт.

A20948

PLATE - clutch pressure

1шт.

B138-63

ROLL PIN - 1/8" x 1-1/4" for 09641AB

1шт.

4355AA

FACINGS - set of (2) clutch, with (30) 3/16" x 15/32" long brass tubular rivets for 4576AA clutch driving plate

1шт.

4576AA

X

PLATE - clutch driving, with facings

1шт.

O5839AB

X

SPRING - clutch adjusting lock pin

1шт.

O7788AB

SPRING

- clutch release

3шт.

O9517AB

LEVER - clutch

3шт.

O9522AB

ROLLER - clutch lever

3шт.

O9523AB

RING - clutch adjusting

1шт.

O9641AB

PIN - clutch adjusting ring lock

1шт.

O10594AB

X

NUT - 3/8" elastic stop, for bolt in A9887 collar

2шт.
