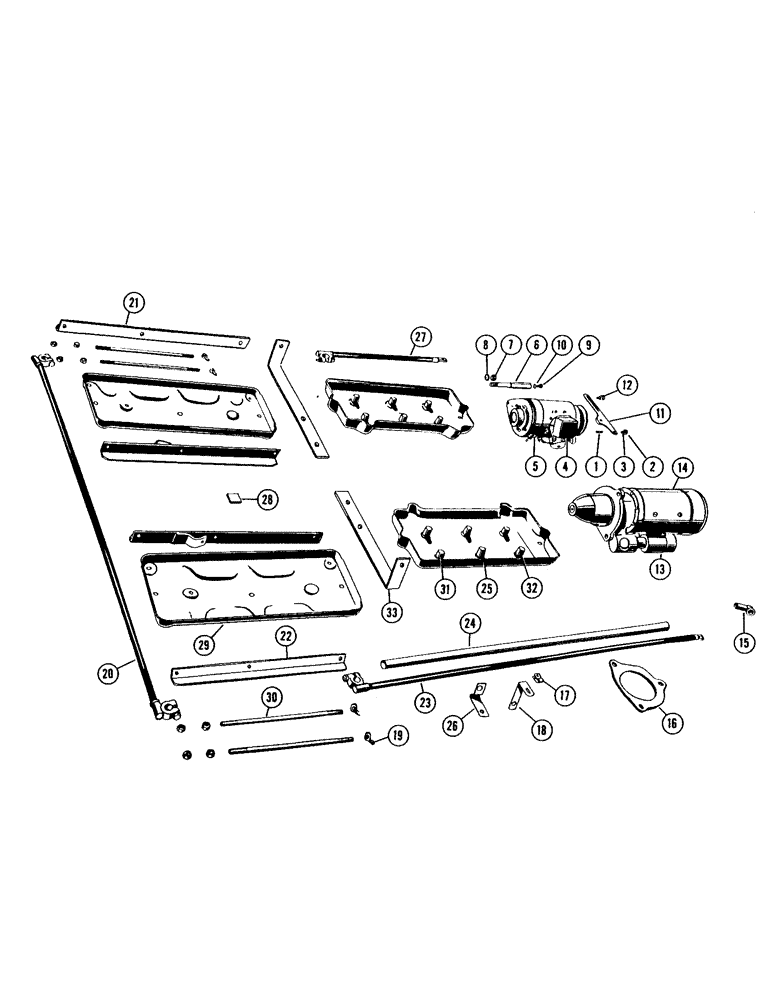

Запчасти Case IH 940 (5-22) - GENERATOR, STARTER, BATTERY AND SUPPORTS, GENERATOR, REPLACES PAGE 54 (04) - ELECTRICAL SYSTEMS

1

A7391

STUD

- generator adjusting strap

1шт.

2

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

A20792

REGULATOR

- voltage (Delco-Remy #1118991)

1шт.

5

A21533

X

GENERATOR - 12 volt (Delco-Remy #1100390) (prior to serial no. 8172001)

1шт.

5

A22684

GENERATOR - 12 volt (Delco-Remy #1100407) (serial no. 8172001 and after)

1шт.

6

A21537

CARRIER

- generator

1шт.

7

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

A21538

STRAP

- generator adjusting

1шт.

12

193-521

BOLT - 5/16" x 3/4" shakeproof hex hd. N.C.

1шт.

13

A20793

X

SWITCH - starter solenoid, for A21532 starter (Delco-Remy #1119833)

1шт.

13

A21585

SWITCH

- starter solenoid, for A20873 starter (Delco-Remy #1114252)

1шт.

14

A20873

MOTOR - starting, LP-gas (Delco-Remy #1107771)

1шт.

14

A21532

MOTOR - starting, diesel (Delco-Remy #1113635)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(3 used on diesel, 2 used on LP-gas), starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex (1 used on LP-gas), starter

1шт.

92-8

LOCK WASHER,1/2"

starter 1/2"

3шт.

15

A21753

CAP

NIPPLE - rubber, starting motor terminal

1шт.

16

O9866AB

X

GASKET - starting motor

1шт.

17

O10244AB

CLIP - battery to starting motor cable

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Starter Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

25-104

NUT,1/4"-20, G5

Starter 1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Starter 1/4"

1шт.

18

O10245AB

BRACKET - 010244AB cable clip, starter

1шт.

19

129-410

WING NUT,3/8"-16

- 3/8" N.C. battery stud, zinc plated, supports

4шт.

20

A10143

CABLE - battery to battery, LP-gas, supports

1шт.

20

O9998AB

X

CABLE - battery to battery, diesel, supports

1шт.

21

A11734

ANGLE - battery support (R.H. inside and L.H. outside)

2шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" carriage, battery and supports

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" carriage bolt, battery and supports

2шт.

92-5

LOCK WASHER,5/16"

battery and supports 5/16"

2шт.

22

A11735

ANGLE - battery support (L.H. inside and R.H. outside)

2шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" carriage, battery and supports

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" carriage bolt, battery and supports

2шт.

92-5

LOCK WASHER,5/16"

battery and supports 5/16"

2шт.

23

A20634

CABLE - battery to starting motor, LP-gas, supports

1шт.

23

A21486

CABLE

- battery to starting motor, diesel, supports

1шт.

24

A22453

LOOM - battery to starting motor cable, supports

1шт.

25

B2468AA

COVER - battery, LP-gas, supports

2шт.

25

4632AA

COVER - battery, diesel (prior to tractor no. 8172001), supports

2шт.

25

A22815

COVER - battery, diesel (tractor no. 8172001 and after), supports

2шт.

26

O6194AB

CLIP - starting cable and battery cable, supports

2шт.

27

O6354AB

X

CABLE - battery to ground, LP-gas, supports

1шт.

27

O9997AB

X

CABLE - battery to ground, diesel, supports

1шт.

28

O7420AB

X

PAD - rubber, for battery plate, supports

12шт.

29

O9885AB

PLATE - battery support

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Battery and supports Hex, 5/16"-24 x 3/4", G5, Full Thd

8шт.

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), battery and supports

8шт.

92-5

LOCK WASHER,5/16"

battery and supports 5/16"

8шт.

30

O9888AB

STUD - battery, supports

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, battery and supports

8шт.

31

O4606AB

STOPPER - battery cover, short, supports

4шт.

32

O7548AB

STOPPER - battery cover, long (prior to tractor no. 8172001), supports

8шт.

32

A22816

STOPPER - battery cover, long (tractor no. 8172001 and after), supports

8шт.

33

A11556

BRACE - fender, fuel tank rear angle, LP-gas, battery and supports

2шт.

A22817

BATTERY - 6 volt (Auto-lite #7DA-204) diesel, supports

2шт.

REF.- BATTERY IS PART A22817

1шт.

F53478

DRY BATTERY

- 6 volt (Auto-lite #4H-150 R-CD) LP-gas (Replaces A8325), supports

2шт.
