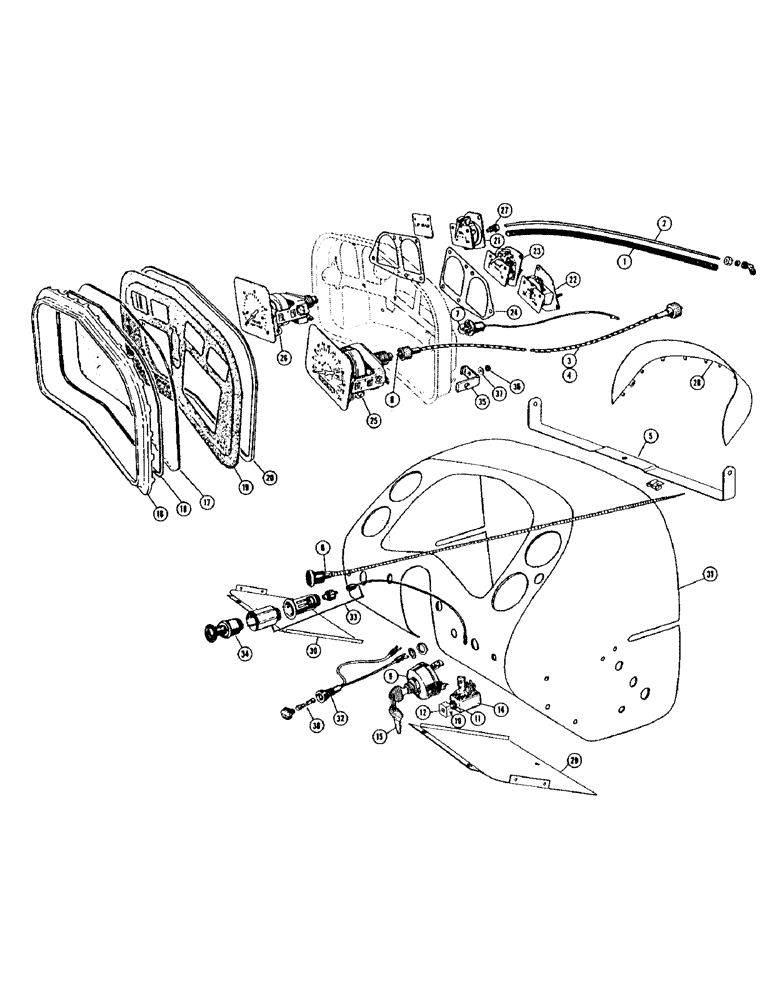

Запчасти Case IH 940 (5-20) - INSTRUMENT PANEL FOR SPARK IGNITION, PAGE 53 (04) - ELECTRICAL SYSTEMS

A7767

LOOM - lube gauge tube

1шт.

A7902

TUBE - lube oil gauge

1шт.

A11366

BRACE - instrument panel

1шт.

1

A7767

LOOM - lube oil gauge tube, serial no. 8172001 and after

1шт.

2

A7902

TUBE - lube oil gauge, serial no. 8172001 and after

1шт.

3

A11093

HOUSING - tachometer drive flexible (includes cable) (see A20260), serial no. 8172001 and after

1шт.

4

A11317

X

HOUSING - speedometer drive flexible (includes cable) (see A20260), serial no. 8172001 and after

1шт.

5

A11366

BRACE - instrument panel, serial no. 8172001 and after

1шт.

6

A11891

CONTROL

- choke, serial no. 8172001 and after

1шт.

195-103

WASHER,5/16"

- 3/8" special wrought, zinc plated, serial no. 8172001 and after

2шт.

7

A14553

BULB

- instrument cluster dash lamp (mfg. #57), serial no. 8172001 and after

3шт.

8

A20260

X

KIT - cable, speedometer and tachometer inner drive, serial no. 8172001 and after

2шт.

9

A20463

X

SWITCH - starting (includes A20621 keys), serial no. 8172001 and after

1шт.

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, , S/N 8172001 and after Int Tooth, 9/16"

1шт.

10

A20465

KNOB

- lighting switch, serial no. 8172001 and after

1шт.

193-63

LOCK WASHER,Int Tooth, 5/8"

LOCKWASHER - 5/8" shakeproof int., zinc plated, serial no. 8172001 and after

1шт.

11

A20467

NUT

- lighting switch lock, serial no. 8172001 and after

1шт.

12

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- lighting switch knob, serial no. 8172001 and after

1шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , S/N 8172001 and after #8

1шт.

14

A20620

SWITCH

- lighting, with knob, serial no. 8172001 and after

1шт.

15

A20621

KEY

- A20463 switch, serial no. 8172001 and after

2шт.

16

A21488

X

BEZEL - instrument cluster, serial no. 8172001 and after

1шт.

17

A21489

LENS

- instrument cluster, serial no. 8172001 and after

1шт.

18

A21490

GASKET

GASKER - instrument cluster bezel, serial no. 8172001 and after

1шт.

19

A21491

PANEL

FACE - instrument cluster, serial no. 8172001 and after

1шт.

20

A21492

GASKET - instrument cluster, serial no. 8172001 and after

1шт.

21

A21494

GAUGE

- lube oil pressure, serial no. 8172001 and after

1шт.

22

A21495

AMMETER

serial no. 8172001 and after

1шт.

23

A21497

GAUGE

- temperature, serial no. 8172001 and after

1шт.

24

A21498

GASKET - gauge mounting, serial no. 8172001 and after

2шт.

25

A21499

TACHOMETER

serial no. 8172001 and after

1шт.

26

A21500

GAUGE

SPEEDOMETER, serial no. 8172001 and after

1шт.

27

A21503

TUBE NUT

AND SLEEVE ASSEMBLY - oil pressure gauge, serial no. 8172001 and after

1шт.

28

A21534

SHADE - instrument panel, serial no. 8172001 and after

1шт.

29

A21592

COVER - instrument panel, R.H., serial no. 8172001 and after

1шт.

30

A21593

COVER - instrument panel, L.H., serial no. 8172001 and after

1шт.

131-130

NUT

- #8 Tinnerman speed grip, serial no. 8172001 and after

8шт.

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" Phillips truss, hd., self tapping mach., serial no. 8172001 and after

8шт.

31

A21597

PANEL - instrument, serial no. 8172001 and after

1шт.

32

A22874

HOLDER

- fuse, with VT2124 20 amp. fuse, serial no. 8172001 and after

1шт.

129-27

NUT,Hex, #10 - 32

- machine screw, serial no. 8172001 and after #10-32

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, , S/N 8172001 and after #10

2шт.

33

G13344

SOCKET - cigarette lighter, with wire, serial no. 8172001 and after

1шт.

34

G13345

UNIT

- pop-out, cigarette lighter, serial no. 8172001 and after

1шт.

35

G46038

BRACKET - instrument cluster mounting, serial no. 8172001 and after

3шт.

36

129-37

NUT,#10-32

S/N 8172001 and after #10-32

3шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , S/N 8172001 and after #10

3шт.

38

VT2124

X

FUSE - 20 amp. (SFE 20), serial no. 8172001 and after

1шт.
