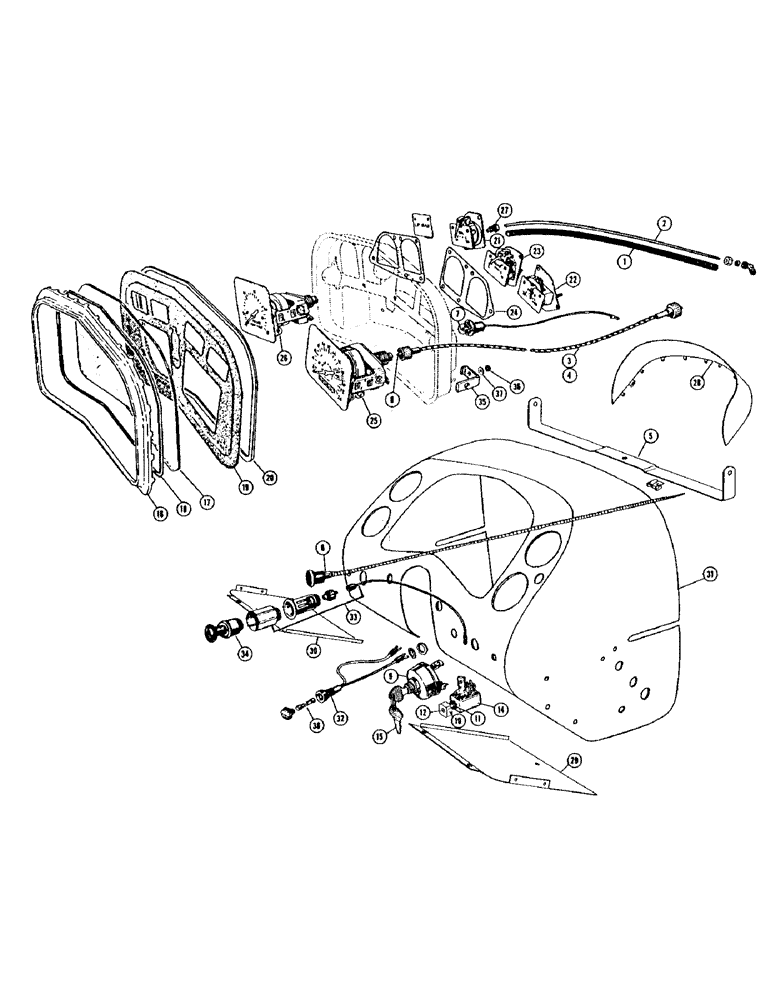

Запчасти Case IH 940 (5-20[1]) - INSTRUMENT PANEL FOR SPARK IGNITION, SERIAL NUMBER 8172001 AND AFTER (04) - ELECTRICAL SYSTEMS

A7767

LOOM - lube gauge tube

1шт.

A7902

TUBE - lube oil gauge

1шт.

A11366

BRACE - instrument panel

1шт.

1

A7767

LOOM - lube oil gauge tube

1шт.

2

A7902

TUBE - lube oil gauge

1шт.

3

A11093

HOUSING - tachometer drive flexible (includes cable) (see A20260)

1шт.

4

A11317

X

HOUSING - speedometer drive flexible (includes cable) (see A20260)

1шт.

5

A11366

BRACE - instrument panel

1шт.

6

A11891

CONTROL

- choke

1шт.

195-103

WASHER,5/16"

- 3/8" special wrought, zinc plated

2шт.

7

A14553

BULB

- instrument cluster dash lamp (mfg. #57)

3шт.

8

A20260

X

KIT - cable, speedometer and tachometer inner drive

2шт.

9

A20463

X

SWITCH - starting (includes A20621 keys)

1шт.

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, Int Tooth, 9/16"

1шт.

10

A20465

KNOB

- lighting switch

1шт.

193-63

LOCK WASHER,Int Tooth, 5/8"

LOCKWASHER - 5/8" shakeproof int., zinc plated

1шт.

11

A20467

NUT

- lighting switch lock

1шт.

12

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- lighting switch knob

1шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

14

A20620

SWITCH

- lighting, with knob

1шт.

15

A20621

KEY

- A20463 switch

2шт.

16

A21488

X

BEZEL - instrument cluster

1шт.

17

A21489

LENS

- instrument cluster

1шт.

18

A21490

GASKET

GASKER - instrument cluster bezel

1шт.

19

A21491

PANEL

FACE - instrument cluster

1шт.

20

A21492

GASKET - instrument cluster

1шт.

21

A21494

GAUGE

- lube oil pressure

1шт.

22

A21495

AMMETER

1шт.

23

A21497

GAUGE

- temperature

1шт.

24

A21498

GASKET - gauge mounting

2шт.

25

A21499

TACHOMETER

1шт.

26

A21500

GAUGE

SPEEDOMETER

1шт.

27

A21503

TUBE NUT

AND SLEEVE ASSEMBLY - oil pressure gauge

1шт.

28

A21534

SHADE - instrument panel

1шт.

29

A21592

COVER - instrument panel, R.H.

1шт.

30

A21593

COVER - instrument panel, L.H.

1шт.

131-130

NUT

- #8 Tinnerman speed grip

8шт.

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" Phillips truss, hd., self tapping mach.

8шт.

31

A21597

PANEL - instrument

1шт.

32

A22874

HOLDER

- fuse, with VT2124 20 amp. fuse

1шт.

129-27

NUT,Hex, #10 - 32

- machine screw #10-32

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

33

G13344

SOCKET - cigarette lighter, with wire

1шт.

34

G13345

UNIT

- pop-out, cigarette lighter

1шт.

35

G46038

BRACKET - instrument cluster mounting

3шт.

36

129-37

NUT,#10-32

3шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

38

VT2124

X

FUSE - 20 amp. (SFE 20)

1шт.
