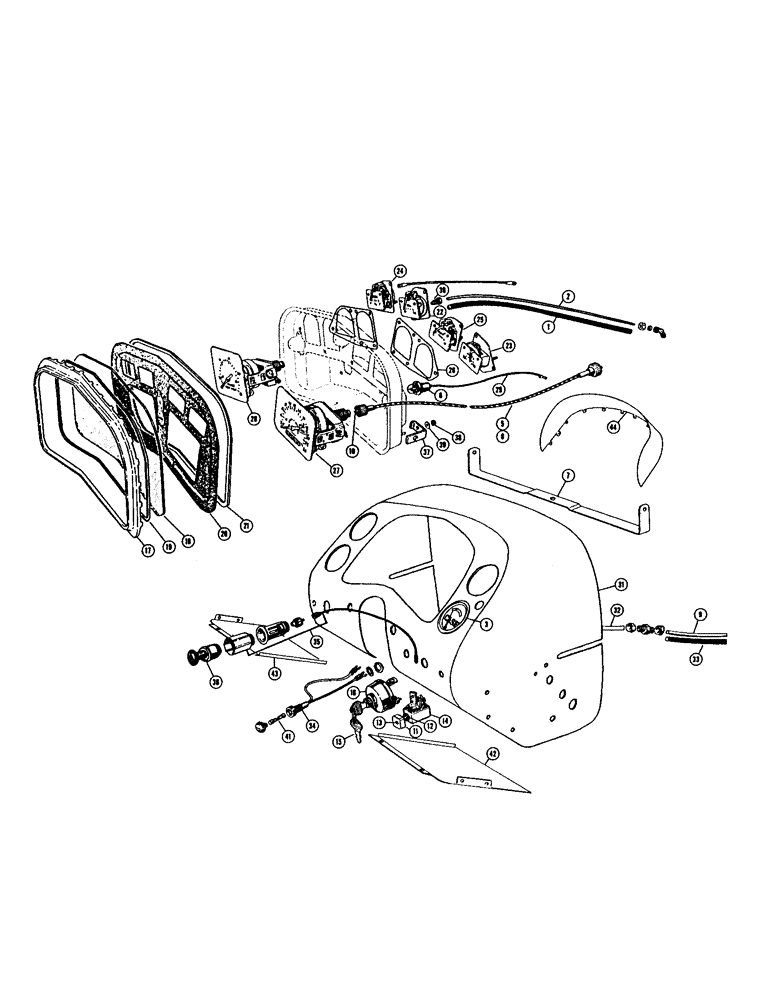

Запчасти Case IH 940 (5-18) - INSTRUMENT PANEL FOR DIESEL, PAGE 51, INSTRUMENT PANEL FOR (04) - ELECTRICAL SYSTEMS

A7767

LOOM - lube oil gauge tube

1шт.

A7902

TUBE - lube oil gauge

1шт.

A11366

BRACE - instrument panel

1шт.

A20136

TUBE - fuel pressure gauge union to third stage filter

1шт.

A22148

TUBE - fuel oil pressure, Serial Range: gauge-union

1шт.

A22382

LOOM - A20136 tube

1шт.

O6361AB

CLIP - strap, engine temp. sending unit and headlamp wire loom on water manifold and fuel pressure tube and tachometer cable on transmission cover

2шт.

O6361AB

CLIP - strap, tail lamp wire loom (not used)

1шт.

1

A7767

LOOM - lube oil gauge tube, instrument panel for diesel, serial no. 8172001 and after

1шт.

2

A7902

TUBE - lube oil gauge, instrument panel for diesel, serial no. 8172001 and after

1шт.

3

A8101

GAUGE

- fuel oil pressure, instrument panel for diesel, serial no. 8172001 and after

1шт.

220-10

COUPLING - 1/8" tube x 1/2" P.T., instrument panel for diesel, serial no. 8172001 and after

1шт.

5

A11097

X

HOUSING - tachometer drive flexible (includes cable) (see A20260), instrument panel for diesel, serial no. 8172001 and after

1шт.

6

A11317

X

HOUSING - speedometer drive flexible (includes cable) (see A20260), instrument panel for diesel, serial no. 8172001 and after

1шт.

7

A11366

BRACE - instrument panel, for diesel, serial no. 8172001 and after

1шт.

8

A14553

BULB

- instrument cluster dash lamp (mfg. #57), instrument panel for diesel, serial no. 8172001 and after

3шт.

9

A20136

TUBE - fuel oil pressure gauge union to third stage filter, instrument panel for diesel, serial no. 8172001 and after

1шт.

10

A20260

X

KIT - cable, speedometer and tachometer inner drive, instrument panel for diesel, serial no. 8172001 and after

2шт.

11

A20465

KNOB

- lighting switch, instrument panel for diesel, serial no. 8172001 and after

1шт.

12

A20467

NUT

- lighting switch lock, instrument panel for diesel, serial no. 8172001 and after

1шт.

13

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- lighting switch knob, instrument panel for diesel, serial no. 8172001 and after

1шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Instrument panel for diesel, S/N 8172001 and after #8

1шт.

14

A20620

SWITCH

- lighting, with knob, instrument panel for diesel, serial no. 8172001 and after

1шт.

193-63

LOCK WASHER,Int Tooth, 5/8"

LOCKWASHER - 5/8" shakeproof, instrument panel for diesel, serial no. 8172001 and after

1шт.

15

A20621

KEY

- A21487 switch, instrument panel for diesel, serial no. 8172001 and after

2шт.

16

A21487

X

SWITCH - starting (includes A20621 keys), instrument panel for diesel, serial no. 8172001 and after

1шт.

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, , Instrument panel for diesel, S/N 8172001 and after Int Tooth, 9/16"

1шт.

17

A21488

X

BEZEL - instrument cluster, instrument panel for diesel, serial no. 8172001 and after

1шт.

18

A21489

LENS

- instrument cluster, instrument panel for diesel, serial no. 8172001 and after

1шт.

19

A21490

GASKET

- instrument cluster bezel, instrument panel for diesel, serial no. 8172001 and after

1шт.

20

A21491

PANEL

FACE - instrument cluster, instrument panel for diesel, serial no. 8172001 and after

1шт.

21

A21492

GASKET - instrument cluster, instrument panel for diesel, serial no. 8172001 and after

1шт.

22

A21494

GAUGE

- lube oil pressure, instrument panel for diesel, serial no. 8172001 and after

1шт.

23

A21495

AMMETER

instrument panel for diesel, serial no. 8172001 and after

1шт.

24

A21496

GAUGE

- fuel oil, instrument panel for diesel, serial no. 8172001 and after

1шт.

25

A21497

GAUGE

- temperature, instrument panel for diesel, serial no. 8172001 and after

1шт.

26

A21498

GASKET - gauge mounting, instrument panel for diesel, serial no. 8172001 and after

2шт.

27

A21499

TACHOMETER

instrument panel for diesel, serial no. 8172001 and after

1шт.

28

A21500

GAUGE

SPEEDOMETER, instrument panel for diesel, serial no. 8172001 and after

1шт.

29

A21501

ELECTRICAL WIRE

WIRE - socket and terminal, instrument panel for diesel, serial no. 8172001 and after

3шт.

30

A21503

TUBE NUT

AND SLEEVE ASSEMBLY - oil pressure gauge, instrument panel for diesel, serial no. 8172001 and after

1шт.

31

A21596

PANEL - instrument, panel for diesel, serial no. 8172001 and after

1шт.

32

A22148

TUBE - fuel oil pressure gauge to union, instrument panel for diesel, serial no. 8172001 and after

1шт.

33

A22382

LOOM - fuel oil pressure gauge union to third stage filter tube, instrument panel for diesel, serial no. 8172001 and after

1шт.

34

A22874

HOLDER

- fuse, with VT2124 20 amp. fuse, instrument panel for diesel, serial no. 8172001 and after

1шт.

35

G13344

SOCKET - cigarette lighter, with wire, instrument panel for diesel, serial no. 8172001 and after

1шт.

36

G13345

UNIT

- pop-out, cigarette lighter, instrument panel for diesel, serial no. 8172001 and after

1шт.

37

G46038

BRACKET - instrument cluster mounting, instrument panel for diesel, serial no. 8172001 and after

3шт.

38

129-37

NUT,#10-32

Instrument panel for diesel, S/N 8172001 and after #10-32

3шт.

39

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Instrument panel for diesel, S/N 8172001 and after #10

3шт.

O10381AB

SNUBBER - fuel oil pressure gauge, instrument panel for diesel, serial no. 8172001 and after

1шт.

41

VT2124

X

FUSE - 20 amp. (SFE 20), instrument panel for diesel, serial no. 8172001 and after

1шт.

42

A21592

COVER - instrument panel, R.H., instrument panel for diesel, serial no. 8172001 and after

1шт.

43

A21593

COVER - instrument panel, L.H., for diesel, serial no. 8172001 and after

1шт.

131-130

NUT

- #8 Tinnerman speed grip, instrument panel for diesel, serial no. 8172001 and after

8шт.

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" Phillips self-tapping, truss hd. machine, instrument panel for diesel, serial no. 8172001 and after

8шт.

44

A21534

SHADE - instrument panel, for diesel, serial no. 8172001 and after

1шт.
