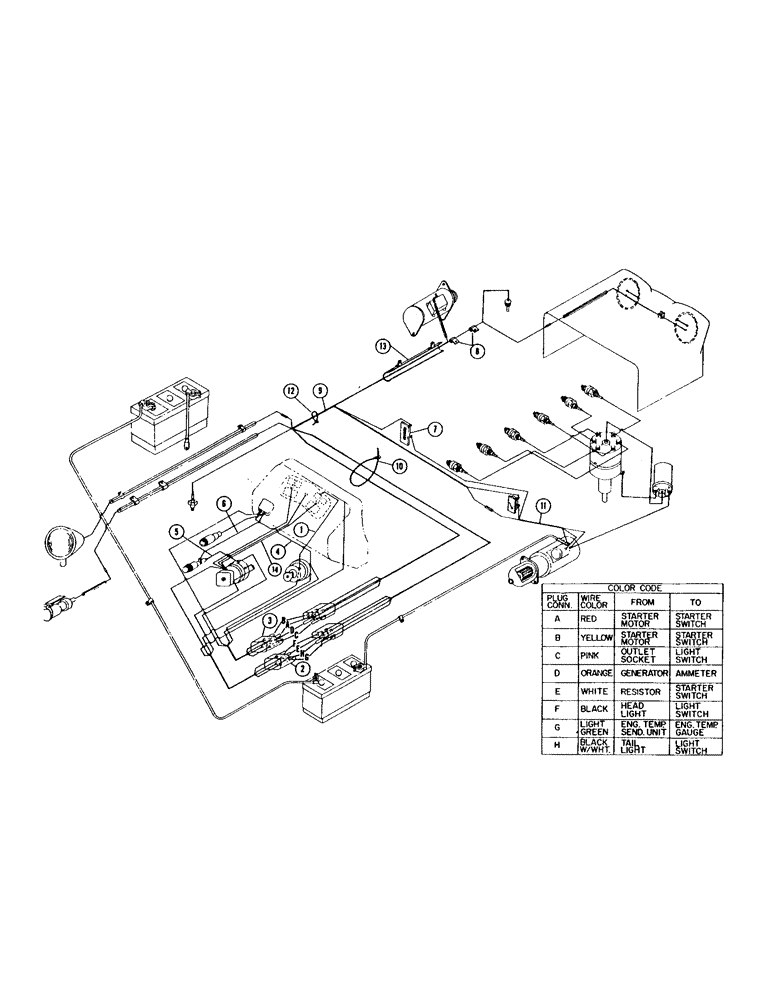

Запчасти Case IH 940 (4-16) - WIRING DIAGRAM FOR SPARK IGNITION, PAGE 49 (04) - ELECTRICAL SYSTEMS

1

A11783

ELECTRICAL WIRE

WIRE - starter switch to temp. gauge, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

2

A21613

HARNESS

PLUG AND WIRE ASSEMBLY, rear (head and tail light, starter switch and temperature gauge), wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

3

A21615

PLUG AND WIRE ASSEMBLY, rear (starter, battery, generator and auxiliary outlet), wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

4

A21626

WIRE - starter switch to ammeter, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

5

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

6

A22876

ELECTRICAL WIRE

WIRE - fuse to ammeter, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

7

A22877

BREAKER,40A

CIRCUIT BREAKER, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

174-76

SCREW - #8-36 x 7/16" N.F. rhd., wiring diagram for spark ignition, serial no. 8172001 and after

2шт.

225-14208

NUT,#8-36

- machine screw, wiring diagram for spark igntion, serial no. 8172001 and after #8-36

2шт.

192-6

LOCK WASHER,#8

WASHER, LOCK, , Wiring diagram for spark ignition, S/N 8172001 and after #8

2шт.

129-27

NUT,Hex, #10 - 32

- machine screw, wiring diagram for spark ignition, serial no. 8172001 and after #10-32

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, , Wiring diagram for spark ignition, S/N 8172001 and after #10

2шт.

8

A22880

CLIP

- wire harness to water manifold and water pump, wiring diagram for spark ignition, serial no. 8172001 and after

2шт.

9

A22887

HARNESS

PLUG AND WIRE HARNESS ASSEMBLY, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

10

A22888

TIE - wire harness, at fuel tank rear, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

11

A22892

HARNESS - wire, battery cable, starting motor, circuit breaker, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

12

A22893

TIE - wire harness, under fuel tank, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

13

4641AA

CONDUIT - generator and headlamp wires and temp. gauge tube, wiring diagram for spark ignition, serial no. 8172001 and after

1шт.

14

A21501

ELECTRICAL WIRE

WIRE - socket and terminal, wiring diagram for spark ignition, serial no. 8172001 and after

3шт.
