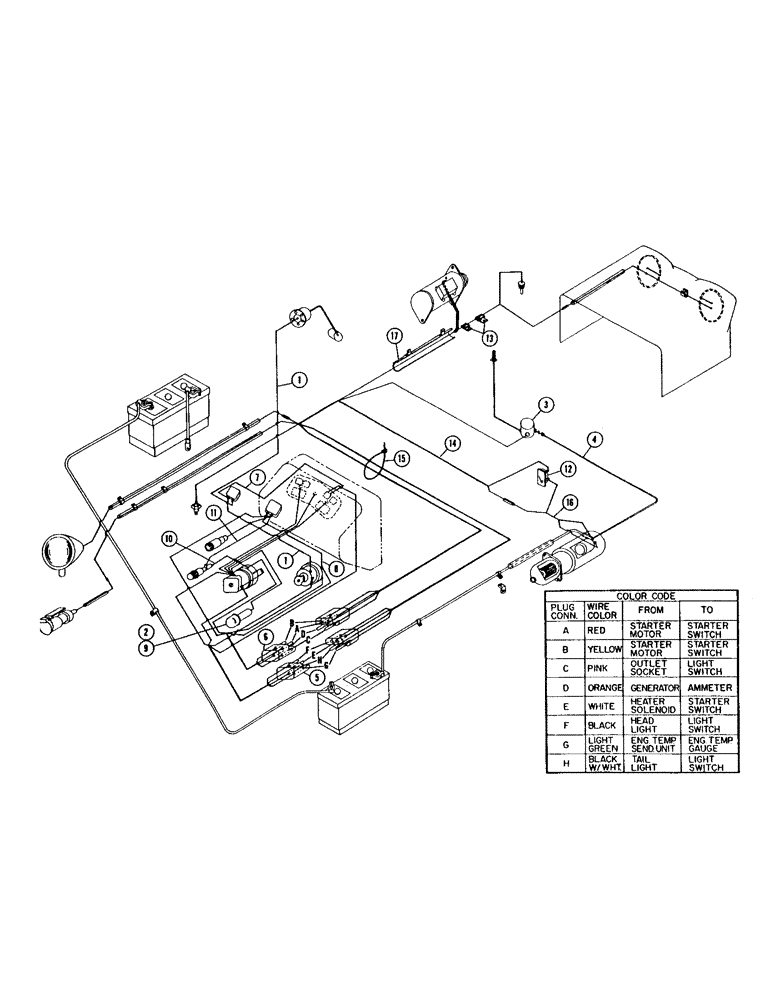

Запчасти Case IH 940 (4-14) - WIRING DIAGRAM FOR DIESEL TRACTORS, PAGE 48, WIRING (04) - ELECTRICAL SYSTEMS

1

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sending unit and ignition switch to fuel gauge

2шт.

2

A21380

X

LAMP - auxiliary dash

1шт.

3

A21481

SOLENOID

- heater switch

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

195-18

WASHER,1/4"

PLAIN WASHER

2шт.

4

A21483

CABLE

- starter solenoid to manifold heater solenoid

1шт.

5

A21613

HARNESS

PLUG AND WIRE ASSEMBLY, rear (head and tail lights, starter switch and engine temperature gauge)

1шт.

6

A21615

PLUG AND WIRE ASSEMBLY, rear (starter, battery, generator and auxiliary outlet)

1шт.

7

A21625

WIRE - fuel gauge to temperature gauge

1шт.

8

A21626

WIRE - starter, Serial Range: switch-ammeter

1шт.

9

A22349

BULB

- instrument panel dash lamp (mfg. #1445) (for A21380)

1шт.

10

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

11

A22876

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-ammeter

1шт.

12

A22877

BREAKER,40A

CIRCUIT BREAKER

1шт.

174-76

SCREW - #8-36 x 7/16" N.F. rhd.

2шт.

225-14208

NUT,#8-36

- machine screw #8-36

2шт.

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

129-27

NUT,Hex, #10 - 32

- machine screw #10-32

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

A22880

CLIP

- wire harness, to water manifold and water pump

2шт.

14

A22887

HARNESS

PLUG AND WIRE HARNESS ASSEMBLY

1шт.

15

A22888

TIE - wire harness, at fuel tank rear

1шт.

16

A22890

HARNESS - wire, battery cable, starting motor, circuit breaker

1шт.

17

4641AA

CONDUIT - generator and headlamp wires and temp. gauge tube

1шт.
