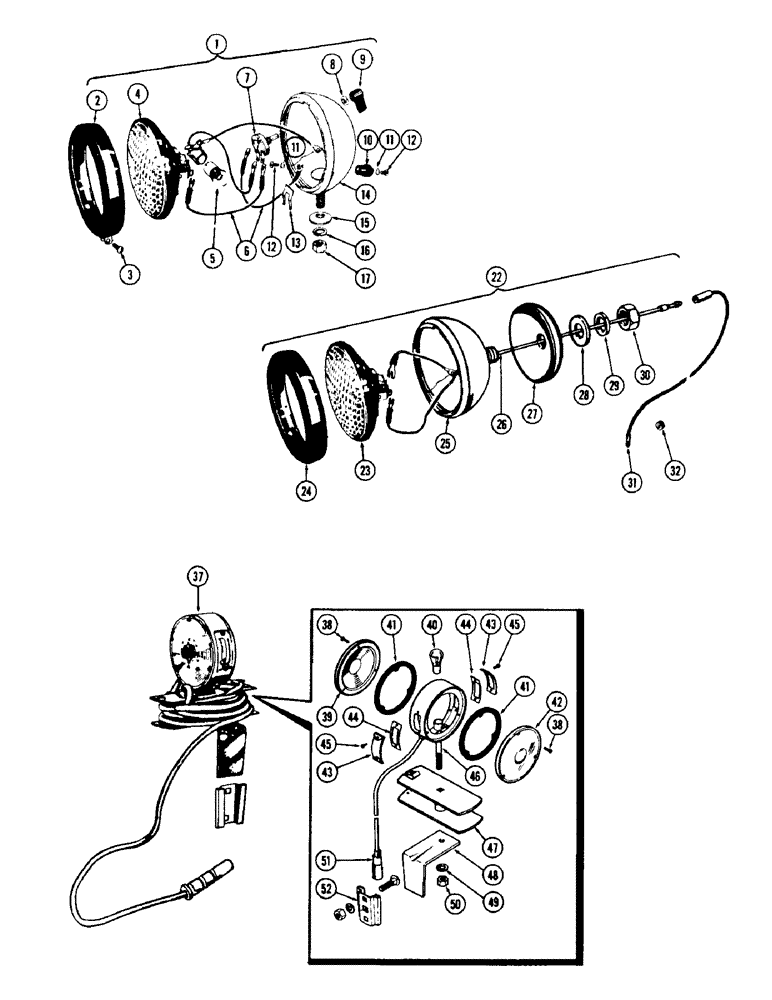

Запчасти Case IH 940 (2-058[1]) - A20965 COMBINATION TAIL LAMP, CULTIVATING LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

A20965

LAMP BASE

LAMP ASSY - tail, combination

1шт.

2

B50255

MOLDING

- lamp

1шт.

3

B50230

SCREW - molding

1шт.

4

B50335

LAMP ASSY - sealed unit (12 volt)

1шт.

5

B50223

BULB

- light, 15 c.p. (12-16 volt)

1шт.

6

B50273

WIRE ASSY - lamp, inner

2шт.

7

B50275

SWITCH

ASSY - lamp

1шт.

8

B50224

SPECIAL NUT

- retaining, switch

1шт.

9

B50310

SWITCH

KNOB - switch

1шт.

10

B50293

TERMINAL CONNECTOR

TERMINAL KIT - lamp

1шт.

11

B50216

X

LOCKWASHER - term. screw (shakeproof)

2шт.

12

B50212

X

SCREW - terminal

2шт.

13

B50269

SPRING - terminal

1шт.

14

NSS

NOT SOLD SEPARAT

BODY ASSY - lamp (order A20965)

1шт.

15

B50231

X

WASHER - bearing, lamp

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-118

NUT,1/2"-20, G5

- 1/2" N.C., hex.

1шт.

A33254M

ATTACHMENT - cultivating lamp (mach. item)

1шт.

22

A32536

LAMP

ASSY - cultivating

2шт.

23

A40362

X

LAMP - sealed unit (12-16 volt)

1шт.

24

B50285

RING

- seal, lamp mtg.

1шт.

25

NSS

NOT SOLD SEPARAT

BODY ASSY - lamp (order A32536)

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - lamp

1шт.

27

A32537

WASHER

- mtg. lamp

2шт.

28

195-33

WASHER,1/2"

- plain, SAE 1/2"

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex.

2шт.

31

A32538

WIRE - lamp to connector (red)

2шт.

32

O8332AB

X

GROMMET - lamp wire

2шт.

A11066

ATTACHMENT - warning lamp, imp. (optional)

1шт.

37

NSS

NOT SOLD SEPARAT

LAMP ASSY - warning, imp.

1шт.

38

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- mtg., lens, #6 x 1/2" rd. hd.

6шт.

39

B50337

LENS

- lamp (amber)

1шт.

40

33686

BULB

- lamp, 21 c.p. (12 volt)

1шт.

41

B50317

GASKET - lens

2шт.

42

B53962

LENS

- lamp (red)

1шт.

43

B50328

LENS - side, lamp

2шт.

44

B50329

GASKET - side lens, lamp

2шт.

45

182-43

SCREW - #6 x 5/16" pan. hd.

4шт.

46

NSS

NOT SOLD SEPARAT

BODY ASSY

1шт.

47

B50330

SPOOL - lamp

1шт.

48

B50331

BRACKET - spool and lamp

1шт.

49

92-7

LOCK WASHER,7/16"

1шт.

50

25-117

NUT,7/16"-20, G5

- 6/17" N.F., hex.

1шт.

51

B50259

PLUG

- lamp

1шт.

52

A8179

SOCKET

- mtg., warning lamp

1шт.
