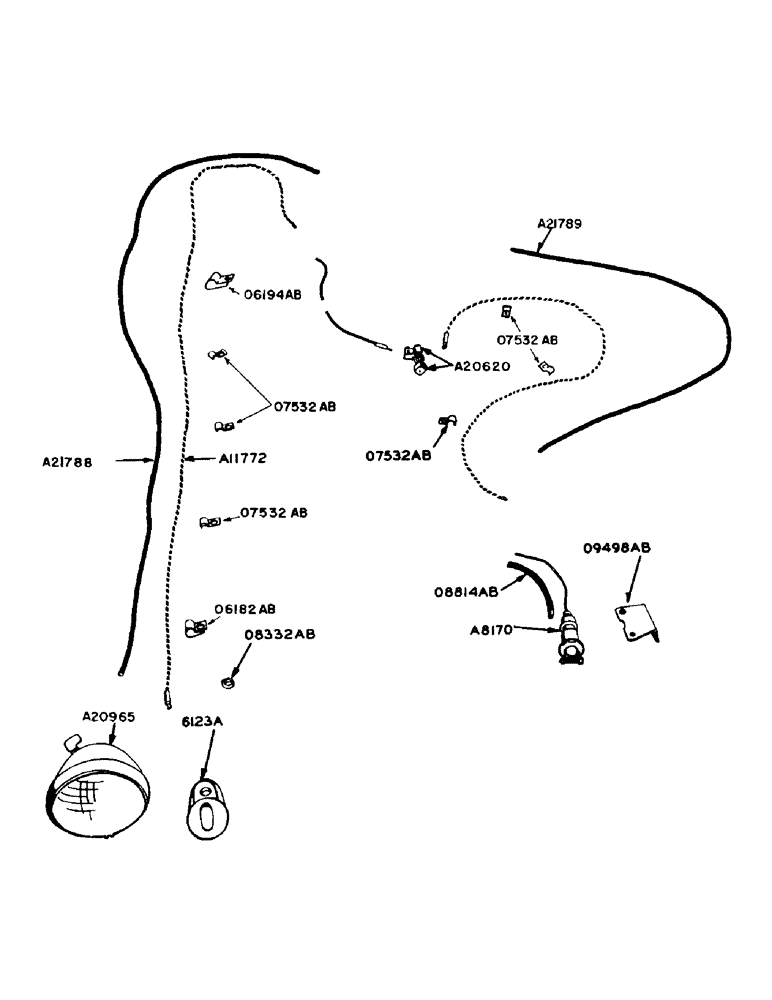

Запчасти Case IH 940 (2-057) - REAR TRACTOR LAMP AND OUTLET SOCKET, SEE PAGE 24 OF SUPPLEMENT (04) - ELECTRICAL SYSTEMS

A8170

SOCKET

- electric outlet

1шт.

#10 x 5/8" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

A11772

WIRE - rear lamp

1шт.

A20965

LAMP BASE

LAMP - combination flood and tail, 12 volt

1шт.

A21788

LOOM - rear lamp wire

1шт.

A21789

LOOM - outlet socket wire

1шт.

6123A

X

BRACKET - tail lamp

1шт.

3/8" x 1-1/2" hex. bolt w/nut and lockwasher

1шт.

O6182AB

CLIP - rear lamp wire loom, rear

1шт.

O6194AB

CLIP - rear lamp wire loom, front

1шт.

O7532AB

CLIP - rear lamp wire loom (3) and outlet socket wire loom (3)

6шт.

O8332AB

X

GROMMET - rubber, on L.H. fender for rear lamp wire

1шт.

O8814AB

LOOM - outlet socket wire, rear

1шт.

O9498AB

BRACKET - outlet socket

1шт.
