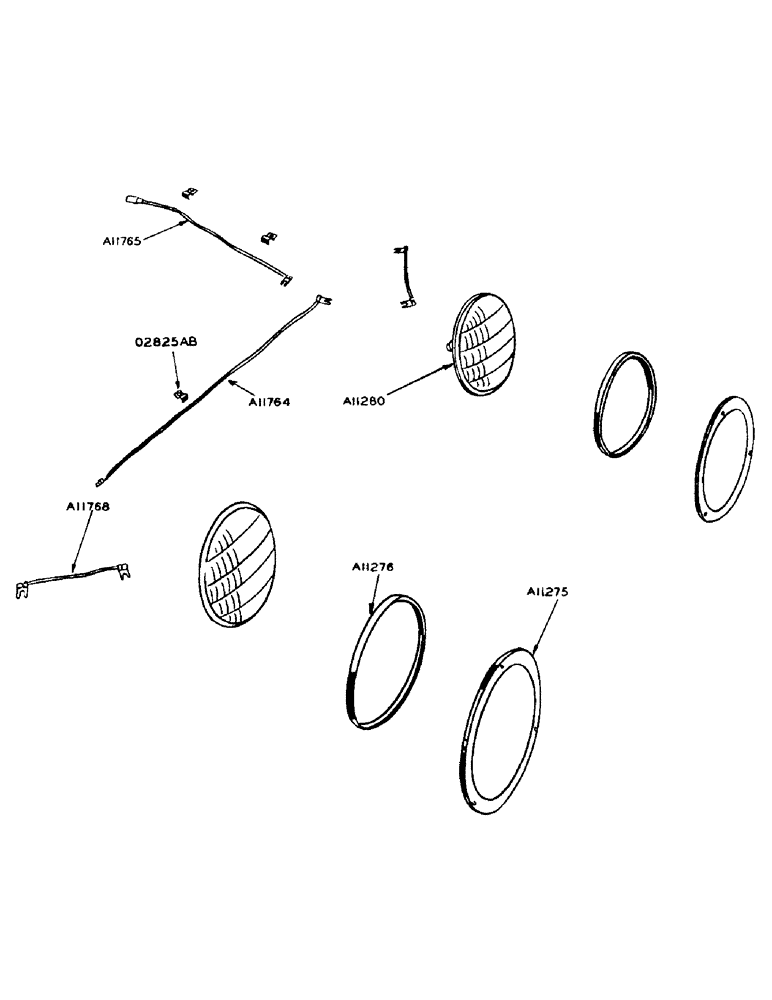

Запчасти Case IH 940 (2-056) - FRONT TRACTOR LAMP, SEE PAGE 24 OF SUPPLEMENT (04) - ELECTRICAL SYSTEMS

A11275

RING

- head lamp retainer

2шт.

#6 - 32 x 1" pan hd. mach. screw, chrome plated

6шт.

#6 - 32 mach. screw nut, zinc plated

6шт.

A11276

GASKET

- head lamp retainer

2шт.

A11280

LAMP

- head, sealed unit

2шт.

A11764

WIRE - head lamp to head lamp

1шт.

A11765

WIRE - connector to headlamp (connector is part of A11765)

1шт.

A11768

ELECTRICAL WIRE

WIRE -, Serial Range: headlamp-ground

2шт.

O2825AB

X

CLIP - headlamp wire, on radiator grille cap

2шт.
