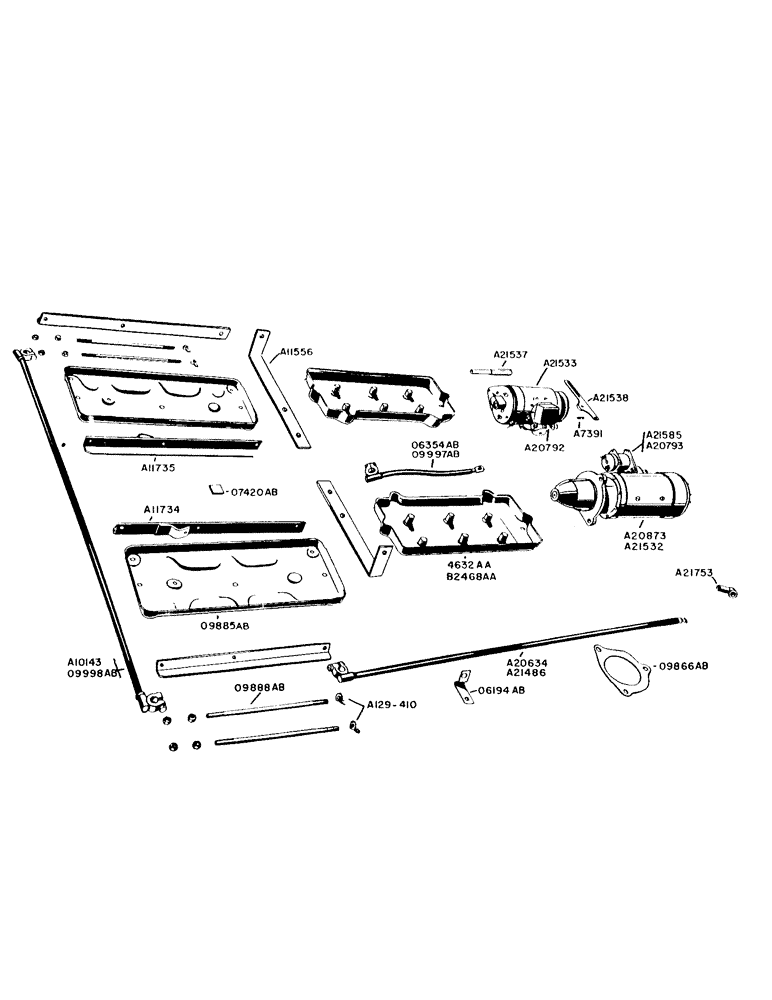

Запчасти Case IH 940 (2-054[1]) - GENERATOR, STARTER SEE PAGE 22 OF SUPPLEMENT (04) - ELECTRICAL SYSTEMS

A7391

STUD

- generator adjusting strap

1шт.

3/8" N.F. hex. nut w/lockwasher

1шт.

A20792

REGULATOR

- voltage (Delco-Remy #1118991)

1шт.

A21533

X

GENERATOR - 12 volt (Delco-Remy #1100390)

1шт.

A21537

CARRIER

- generator

1шт.

3/4" N.F. hex. nut w/lockwasher

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

A21538

STRAP

- generator adjusting

1шт.

5/16" x 3/4" N.C. hex. bolt w/shakeproof ext.-int. tooth lockwasher #4018-24

1шт.

A20793

X

SWITCH - starter solenoid, for A21532 starter (Delco-Remy #1119833)

1шт.

A20873

MOTOR - starting, LP-gas (Delco-Remy #1107771)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

1/2" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

A21483

CABLE

- starter solenoid to manifold heater solenoid

1шт.

A21532

MOTOR - starting, diesel (Delco-Remy #1113635)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

3шт.

A21585

SWITCH

- starter solenoid, for A20873 starter (Delco-Remy #1114252)

1шт.

A21753

CAP

NIPPLE - rubber, starting motor terminal

1шт.

O9866AB

X

GASKET - starting motor

1шт.

O10244AB

CLIP - battery to starting motor cable

1шт.

1/4" x 5/8" N.C. hex. bolt w/nut and lockwasher

1шт.

O10245AB

BRACKET - 010244AB cable clip

1шт.

A129-410

WING NUT - 3/8" N.C. battery stud, zinc plated

4шт.

A10143

CABLE - battery to battery, LP-gas

1шт.

A11556

BRACE - fender, fuel tank rear angle, LP-gas

2шт.

1/2" x 1-3/4" N.C. hex. bolt, L.H.

1шт.

1/2" x 2" N.C. hex. bolt, R.H.

1шт.

5/16" x 7/8" carr. bolt w/nut and lockwasher

4шт.

A11734

ANGLE - battery support (R.H. inside and L.H. outside)

2шт.

5/16" x 7/8" carr. bolt w/nut and lockwasher

2шт.

A11735

ANGLE - battery support (L.H. inside and R.H. outside)

2шт.

5/16" x 7/8" carr. bolt w/nut and lockwasher

2шт.

A20634

CABLE - battery to starting motor, LP-gas

1шт.

A21486

CABLE

- battery to starting motor, diesel

1шт.

A22453

LOOM - battery to starting motor cable

1шт.

B2468AA

COVER - battery, LP-gas

2шт.

4632AA

COVER - battery, diesel

2шт.

O6194AB

CLIP - starting cable, on transmission case top cover

1шт.

O6354AB

X

CABLE - battery to ground, LP-gas

1шт.

O7420AB

X

PAD - rubber, for battery plate

12шт.

O9885AB

PLATE - battery support

2шт.

5/16" x 3/4" N.F. hex. bolt w/nut and lockwasher

8шт.

O9888AB

STUD - battery

4шт.

3/8" N.C. hex. nut

8шт.

O9997AB

X

CABLE - battery to ground, diesel

1шт.

O9998AB

X

CABLE - battery to battery, diesel

1шт.

BATTERY - 6 volt (Exide #XF25) diesel

2шт.

BATTERY - 6 volt, dry charge (Exide #XF19) LP-gas

2шт.
