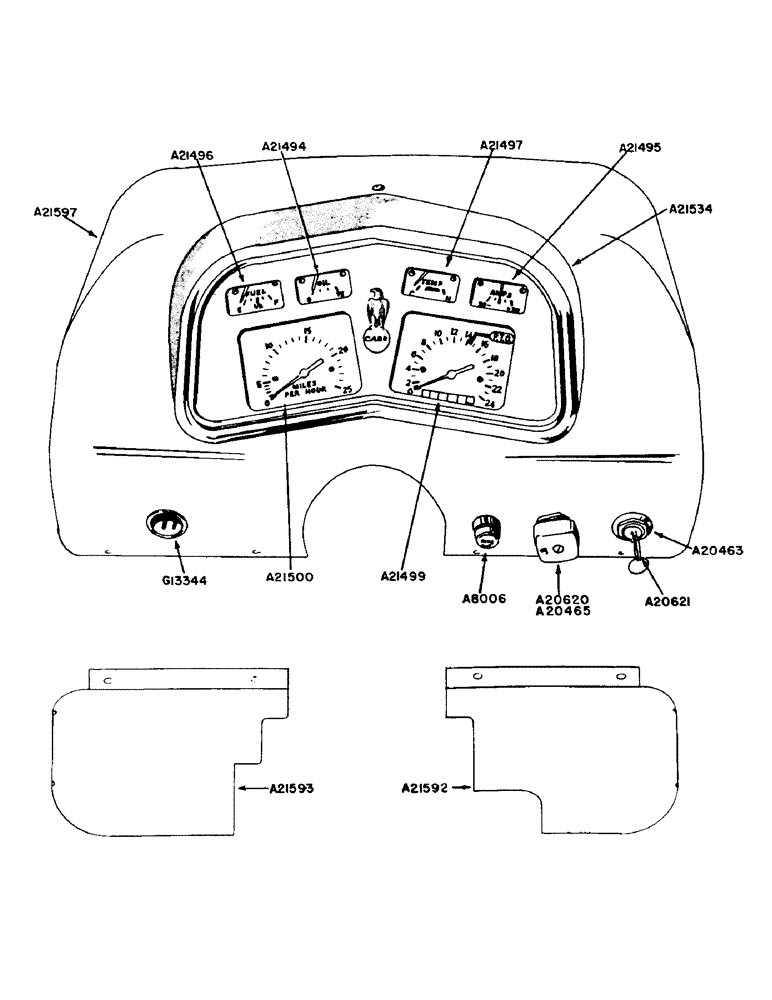

Запчасти Case IH 940 (2-052) - INSTRUMENT PANEL FOR SPARK IGNITION, SEE PAGE 20 & 21 OF SUPPLEMENT (04) - ELECTRICAL SYSTEMS

A8006

NOZZLE HOLDER

HOLDER - fuse, w/VT2124 20 amp. fuse

1шт.

#4 x 1/4" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A11093

HOUSING - tachometer drive flexible (includes cable) (see A20260)

1шт.

A11317

X

HOUSING - speedometer drive flexible (includes cable) (see A20260)

1шт.

A11777

WIRE - light, Serial Range: switch-fuse

1шт.

A11783

ELECTRICAL WIRE

WIRE - starter switch to temp. gauge

1шт.

A11891

CONTROL

- choke

1шт.

A14553

BULB

- instrument cluster dash lamp (#1445)

3шт.

A20260

X

KIT - cable, speedometer and tachometer drive (inner)

2шт.

A20463

X

SWITCH - starting (includes A20621 keys)

1шт.

A20465

KNOB

- lighting switch

1шт.

A20467

NUT

- lighting switch lock

1шт.

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- lighting switch knob

1шт.

A20620

SWITCH

- lighting, with knob

1шт.

A20621

KEY

- A20463 switch

2шт.

A21488

X

BEZEL - instrument panel

1шт.

A21489

LENS

- instrument panel

1шт.

A21490

GASKET

- instrument panel bezel

1шт.

A21491

PANEL

FACE - instrument panel

1шт.

A21492

GASKET - instrument panel

1шт.

A21494

GAUGE

- lube oil pressure

1шт.

A21495

AMMETER

1шт.

A21496

GAUGE

- fuel oil

1шт.

A21497

GAUGE

- temperature

1шт.

A21498

GASKET - gauge mounting

2шт.

A21499

TACHOMETER

1шт.

A21500

GAUGE

SPEEDOMETER

1шт.

A21501

ELECTRICAL WIRE

WIRE - socket and terminal

3шт.

A21503

TUBE NUT

AND SLEEVE ASSEMBLY, oil pressure gauge

1шт.

A21534

SHADE - instrument panel

1шт.

A21592

COVER - instrument panel, R.H.

1шт.

#10-24 self clinch fastener (N.C.)

4шт.

#10-24 x 3/8" N.C. truss hd. mach. screw, zinc plated

4шт.

A21593

COVER - instrument panel, L.H.

1шт.

#10-24 self clinch fastener (N.C.)

4шт.

#10-24 x 3/8" N.C. truss hd. mach. screw, zinc plated

4шт.

A21597

PANEL - instrument

1шт.

A21613

HARNESS

PLUG AND WIRE ASSEMBLY, rear (head and tail light, starter switch and temp. gauge)

1шт.

A21615

PLUG AND WIRE ASSEMBLY, rear (starter, battery, generator and auxiliary outlet)

1шт.

A21626

WIRE - starter switch to ammeter and, Serial Range: fuse-ammeter

2шт.

A21779

PLUG AND WIRE ASSEMBLY, front (head and tail light, ignition coil and temp. gauge)

1шт.

A21780

PLUG AND WIRE ASSEMBLY, front (starter, battery, generator and auxiliary outlet)

1шт.

A21781

LOOM - generator and headlight wires

1шт.

A21784

LOOM - starter and battery wires

1шт.

A21787

LOOM - temperature sending unit and headlamp wires

1шт.

A21789

LOOM - outlet socket

1шт.

A21790

WIRE - neutral starting switch to starter motor

1шт.

G13344

SOCKET - cigarette light, w/wire

1шт.

G13345

UNIT

- pop-out, cigarette lighter

1шт.

G46038

BRACKET - instrument panel mounting

3шт.

O6194AB

CLIP - engine temp. sending unit and headlamp wire loom

1шт.

O6361AB

CLIP - strap, tail lamp wire loom

3шт.

VT2124

X

FUSE - 20 amp. (SFE 20)

1шт.
