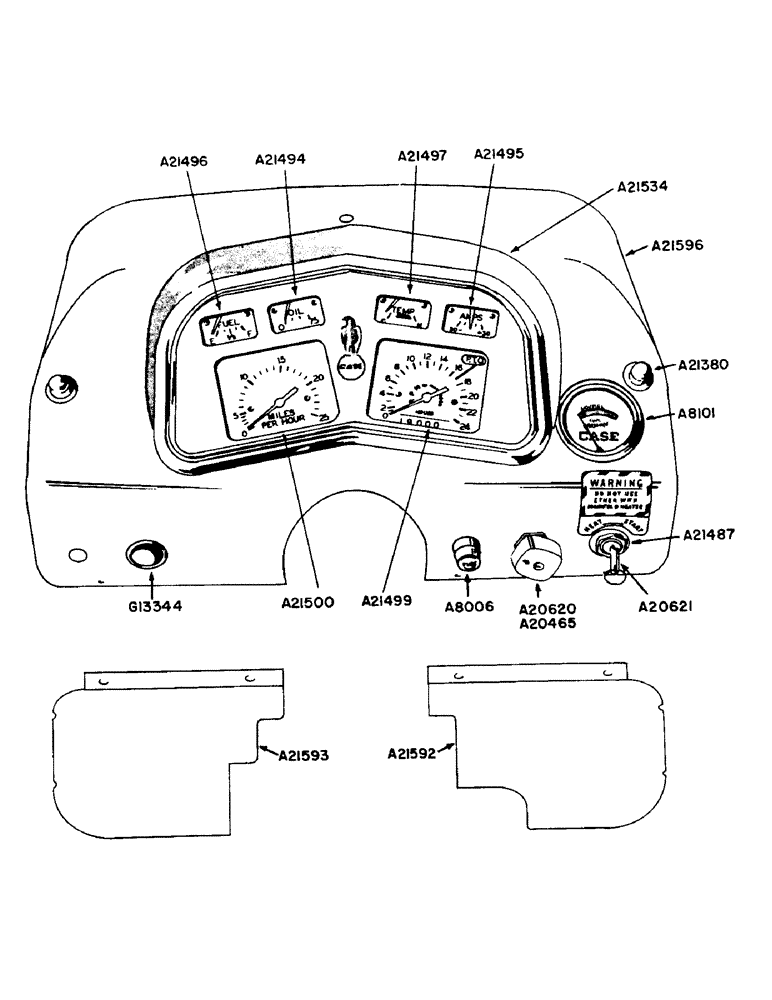

Запчасти Case IH 940 (2-050) - INSTRUMENT PANEL FOR DIESEL TRACTORS, SEE PAGE 18 OF SUPPLEMENT (04) - ELECTRICAL SYSTEMS

A8006

NOZZLE HOLDER

HOLDER - fuse, w/VT2124 20 amp. fuse

1шт.

#4 x 1/4" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A8101

GAUGE

- fuel oil pressure

1шт.

A11097

X

HOUSING - tachometer drive flexible (includes cable) (see A20260)

1шт.

A11317

X

HOUSING - speedometer drive flexible (includes cable) (see A20260)

1шт.

A11777

WIRE - light, Serial Range: switch-fuse

1шт.

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sending unit and starter, Serial Range: switch-ammeter

2шт.

A14553

BULB

- instrument cluster dash lamp (#1445)

3шт.

A20260

X

KIT - cable, speedometer and tachometer drive (inner)

2шт.

A20465

KNOB

- lighting switch

1шт.

A20467

NUT

- lighting switch lock

1шт.

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- lighting switch knob

1шт.

A20620

SWITCH

- lighting, with knob

1шт.

A20621

KEY

- A21487 switch

2шт.

A21380

X

LAMP - auxiliary dash

1шт.

A21481

SOLENOID

- heater switch

1шт.

1/4" x 5/8" N.F. hex. bolt w/lockwasher

2шт.

A21487

X

SWITCH - starting (includes A20621 keys)

1шт.

A21488

X

BEZEL - instrument panel

1шт.

A21489

LENS

- instrument panel

1шт.

A21490

GASKET

- instrument panel bezel

1шт.

A21491

PANEL

FACE - instrument panel

1шт.

A21492

GASKET - instrument panel

1шт.

A21494

GAUGE

- lube oil pressure

1шт.

A21495

AMMETER

1шт.

A21496

GAUGE

- fuel oil

1шт.

A21497

GAUGE

- temperature

1шт.

A21498

GASKET - gauge mounting

2шт.

A21499

TACHOMETER

1шт.

A21500

GAUGE

SPEEDOMETER

1шт.

A21501

ELECTRICAL WIRE

WIRE - socket and terminal

3шт.

A21503

TUBE NUT

AND SLEEVE ASSEMBLY, oil pressure gauge

1шт.

A21534

SHADE - instrument panel

1шт.

A21592

COVER - instrument panel, R.H.

1шт.

#10-24 self clinch fastener (N.C.)

4шт.

#10-24 x 3/8" N.C. truss hd. mach. screw, zinc plated

4шт.

A21593

COVER - instrument panel, L.H.

1шт.

#10-24 self clinch fastener (N.C.)

4шт.

#10-24 x 3/8" N.C. truss hd. mach. screw, zinc plated

4шт.

A21596

PANEL - instrument

1шт.

A21613

HARNESS

PLUG AND WIRE ASSEMBLY, rear (head and tail lights, starter switch and engine temp. gauge)

1шт.

A21615

PLUG AND WIRE ASSEMBLY, rear (starter, battery, generator and auxiliary outlet)

1шт.

A21625

WIRE - fuel gauge to temp. gauge

1шт.

A21626

WIRE - starter switch to ammeter and, Serial Range: fuse-ammeter

2шт.

A21777

PLUG AND WIRE ASSEMBLY, front (headlamp and tail lamp, engine temp. gauge and starter switch)

1шт.

A21778

PLUG AND WIRE ASSEMBLY, front (starter, battery, generator and auxiliary outlet)

1шт.

A21781

LOOM - generator and headlight wires

1шт.

A21783

LOOM - starter motor wires

1шт.

A21785

WIRE - neutral starting switch to starting motor

1шт.

A21787

LOOM - temp. sending unit and headlight wires

1шт.

A21789

LOOM - outlet socket

1шт.

A22349

BULB

- instrument panel dash lamp (#57) (for A21380)

1шт.

G13344

SOCKET - cigarette lighter, w/wire

1шт.

G13345

UNIT

- pop-out, cigarette lighter

1шт.

G46038

BRACKET - instrument panel mounting

3шт.

O6194AB

CLIP - engine temp. sending unit and headlamp wire loom

1шт.

O6361AB

CLIP- strap, tail lamp wire loom

3шт.

O10381AB

SNUBBER - fuel oil pressure gauge

1шт.

VT2124

X

FUSE - 20 amp. (SFE 20)

1шт.
