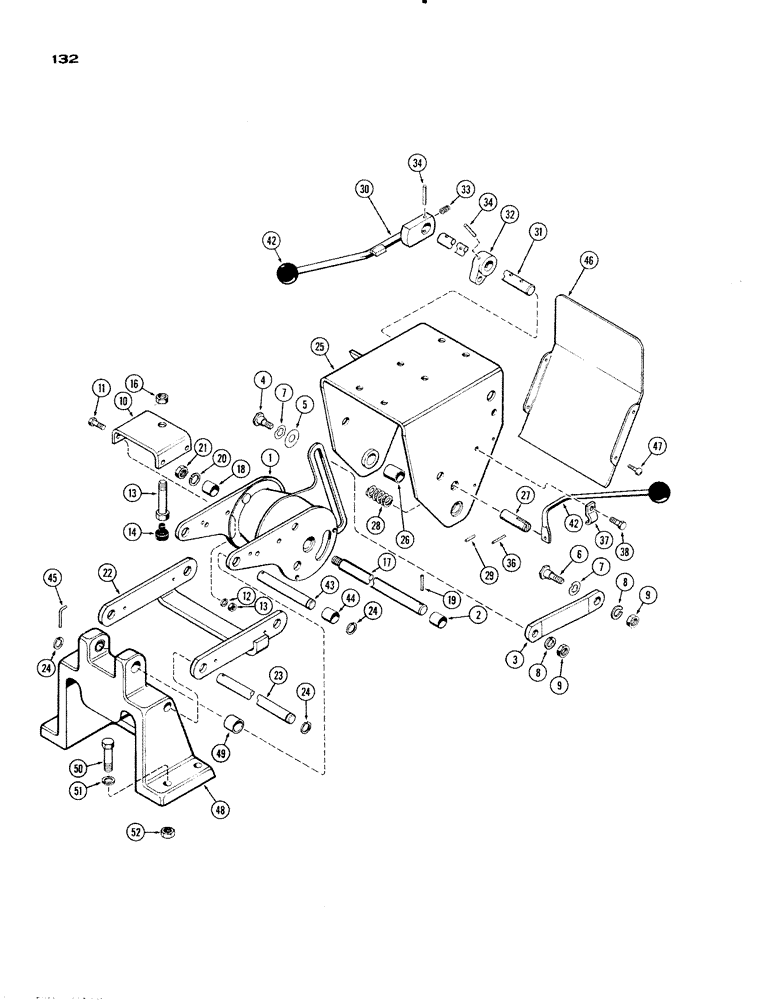

Запчасти Case IH 930-SERIES (132) - SEAT SUSPENSION (09) - CHASSIS

A33231

SUSPENSION ASSY. - seat (Not illust.), Includes: Ref. 1 - 38

1шт.

1

A23947

X

ARM ASSY. - torsion spring, Includes: Ref. 2

1шт.

2

A27793

BUSHING

- arm (5/8 x 3/4 x 3/4")

2шт.

3

A23962

LINK - seat adj.

1шт.

4

A27277

STEP BOLT

BOLT - pivot, rear

1шт.

5

A30752

WASHER

- rear pivot bolt (17/32 x 1-1/16 x 1/32")

1шт.

6

A23964

BOLT - pivot, front

1шт.

7

A23963

WASHER - tension

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

2шт.

10

A23975

BRACE - cross seat mtg. arm

1шт.

11

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- brace (1/4 x 7/8" N.F. hex.)

4шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

25-114

NUT,1/4"-28, G5

(1/4" N.F. hex.)

4шт.

14

A24372

BUMPER - seat (Rubber)

1шт.

15

A33741

BOLT

- bumper seat

1шт.

16

25-108

NUT,1/2"-13, G5

- bumper bolt (1/2" N.C. hex.)

1шт.

17

A23965

BOLT

- torsion spring

1шт.

18

A23966

SPACER

- torsion spring (5/8 x 27/32 x 1-3/32")

2шт.

19

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

25-158

JAM NUT,Jam, 1/2"-20, G5

- bolt ret. (1/2" N.F. half hex.)

1шт.

22

A23970

LINK

ASSY. - parallel

1шт.

23

A23973

PIN

- parallel link

2шт.

24

A26828

RING

- snap, pin ret.

5шт.

25

A32544

SADDLE

ASSY. - seat mtg., Includes: Ref. 26 - 29

1шт.

26

A13583

BUSHING

- saddle

2шт.

27

A23967

ROD

- lock lever

1шт.

28

A23969

SPRING

- lock elver

1шт.

29

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Rod 1/8" x 7/8", Slotted

1шт.

30

A32547

LEVER - seat adjust.

1шт.

31

A32549

SHAFT - cross, adj. lever

1шт.

32

A23957

LEVER - seat adj.

1шт.

33

A23646

SPRING

- lever tension

1шт.

34

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

35

A32546

LEVER - seat lock

1шт.

36

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, , lever 5/32" x 1/2", Slotted

1шт.

37

A24014

CLIP - lock lever

1шт.

38

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip (1/4 x 3/4" N.F. hex.)

1шт.

42

A23885

KNOB

- levers

2шт.

43

A23976

PIN

- pivot, torsion arm

1шт.

44

A24490

SPACER

- arm, rear

1шт.

45

A27275

PIN - lock, pivot pin

1шт.

46

A23977

COVER - saddle

1шт.

47

187-1108

SCREW - cover (#8-32 x 3/8" self-tapping)

4шт.

48

A32877

SUPPORT ASSY. (Deluxe seat), Includes: Ref. 49

1шт.

48

A23940

SUPPORT

ASSY. - (Standard seat), Includes: Ref. 49

1шт.

49

A27793

BUSHING

- pivot pin

2шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

51

A34650

LOCK WASHER

- (1/2" ext. skpf.)

2шт.

52

25-108

NUT,1/2"-13, G5

(1/2" N.C. hex.)

2шт.
