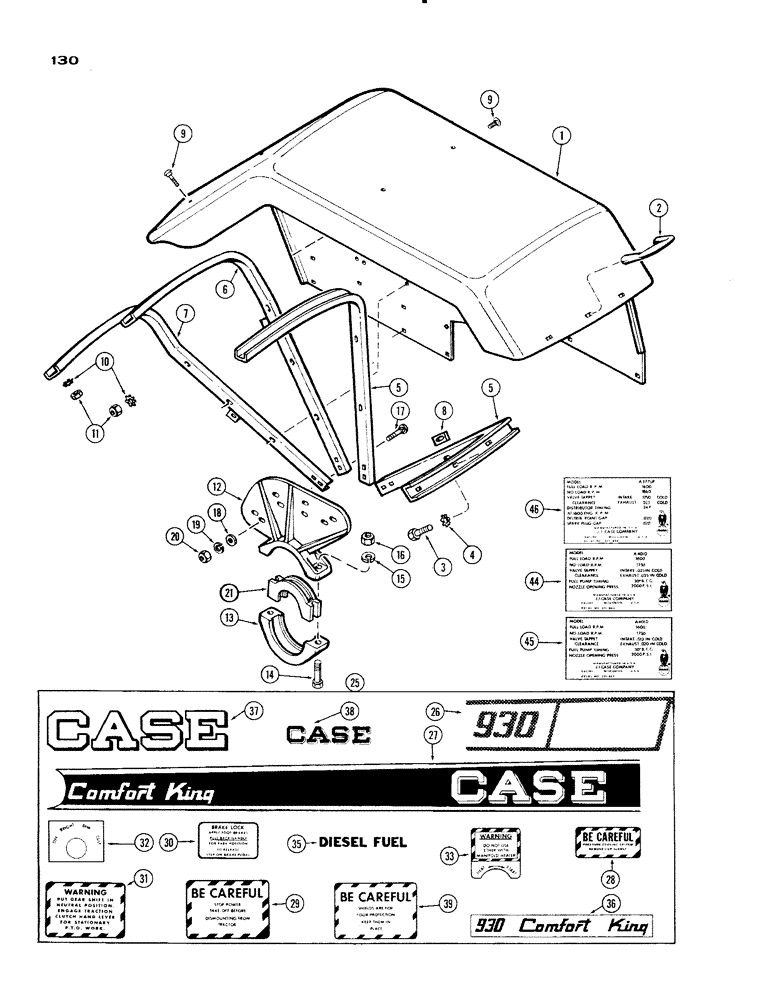

Запчасти Case IH 930-SERIES (130) - FENDERS (09) - CHASSIS

1

A34014

FENDER ASSY. - right hand

1шт.

1

A34015

FENDER ASSY. - left hand

1шт.

205-15

HOLE PLUG BUTTON,3/8"

PLUG - fender ( button type) (not illust.) 3/8"

1шт.

2

A23725

HANDLE

- mounting

2шт.

3

111-219

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G2

BOLT - handle (5/16 x 1-3/4" N.C. hex.)

4шт.

4

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

5

A33338

BRACE - fender, front and center

4шт.

6

A33342

BRACE - fender, rear upper, right hand

1шт.

6

A33343

BRACE

- fender, rear upper, left hand

1шт.

7

A33340

BRACE - fender, rear lower, right hand

1шт.

7

A33341

BRACE - fender, rear lower, left hand

1шт.

8

195-2058

WASHER,5/8" x 1 1/4" x .134"

SPACER - front fender brace

2шт.

9

11-532

X

BOLT - fender (5/16 x 2" N.C. carr.)

24шт.

10

193-45

WASHER,Ext-Int Tooth, 5/16"

(5/16" int./ext. skpf.)

24шт.

11

9635082

NUT,5/16" - 18, Gr 5

(5/16" N.C. hex.)

24шт.

12

A33349

HUB - fender braces

2шт.

13

A24720

CLAMP - hub

2шт.

14

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Clamp to hub Hex, 5/8"-11 x 2 1/2", G5

4шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

25-1010

NUT,5/8"-11, G5

4шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- braces to hub (1/2 x 1-3/4" N.C. carr.)

16шт.

18

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

16шт.

19

92-8

LOCK WASHER,1/2"

16шт.

20

25-108

NUT,1/2"-13, G5

(1/2" N.C. hex.)

16шт.

21

A33350

SPACER - fender hubs

16шт.

25

A40629

KIT

DECAL KIT, Includes: Ref. 26 - 39

1шт.

26

321-736

DECAL

930 (Grille cap, right hand side)

1шт.

26

321-737

DECAL

930 (Grille cap, left hand side)

1шт.

27

321-612

DECAL

COMFORT KING and CASE (hood, right hand)

1шт.

27

321-613

DECAL

COMFORT KING and CASE (hood, left hand)

1шт.

28

321-122

DECAL

BE CAREFUL (radiator)

1шт.

29

321-605

DECAL

BE CAREFUL (P.T.O. L.H. fender)

1шт.

30

321-674

X

BRAKE LOCK (R.H. fender), decals

1шт.

31

321-742

DECAL

WARNING (hand clutch, L.H. fender)

1шт.

32

321-310

DECAL

OFF AND DIM (light switch)

1шт.

33

321-422

DECAL

WARNING (Manifold heater, diesel)

1шт.

35

321-230

DECAL

DIESEL FUEL (Fuel tank cap)

1шт.

36

321-738

DECAL

COMFORT KING (Fuel tank, rear)

1шт.

37

321-364

DECAL

CASE (Diesel fuel tank, rear)

1шт.

38

321-287

DECAL

CASE (L.P. fuel tank, rear)

1шт.

39

321-608

DECAL

BE CAREFUL (P.T.O. shield)

1шт.

44

321-803

DECAL

ENGINE DATA (Diesel) (cyl. head cover) (CHECK FIGURE 13 FOR CORRECT APPLICATION)

1шт.

45

321-802

ENGINE DATA (Diesel) (cyl. head cover) (CHECK FIGURE 13 FOR CORRECT APPLICATION), decals

1шт.

46

321-826

ENGINE DATA (L.P.) (cyl. head cover), decals

1шт.
