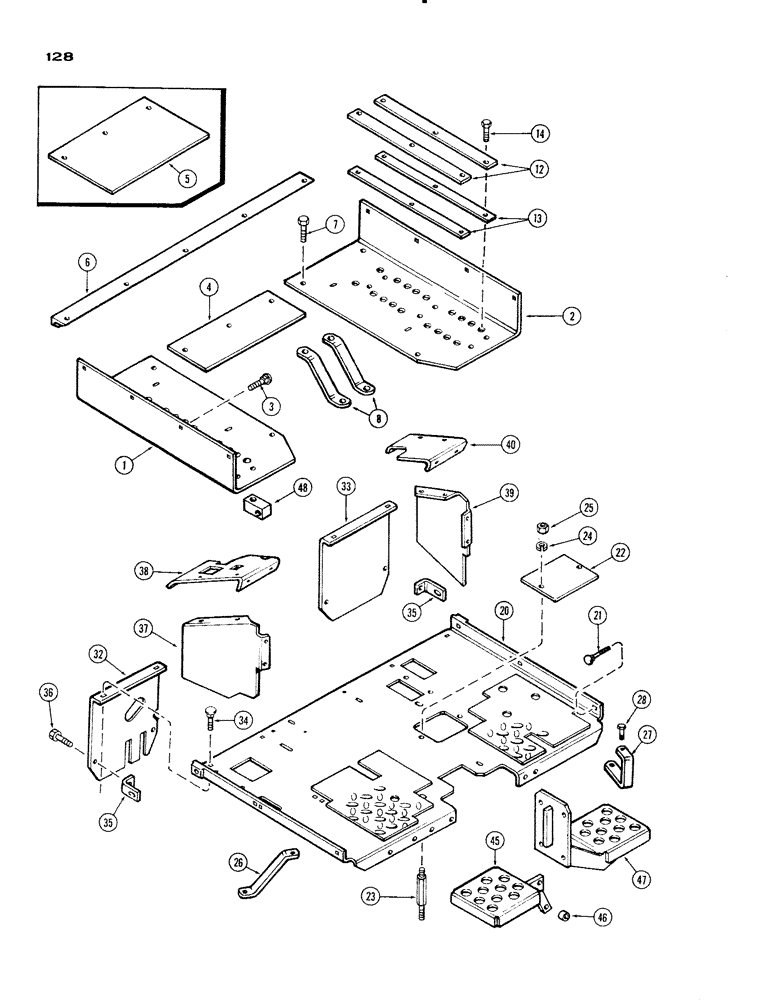

Запчасти Case IH 930-SERIES (128) - PLATFORMS (09) - CHASSIS

1

A33556

TOY

PLATFORM - lower, right hand

1шт.

2

A33557

PLATFORM - lower, left hand

1шт.

3

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Plat. to fender Short NK, 5/16"-18 x 3/4", G2

6шт.

4

A24074

PLATFORM - lower, center (used w/hyd.)

1шт.

5

A23741

PLATFORM - lower center (used w/out hyd.)

1шт.

6

A23745

SUPPORT - lower platforms

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- lower plat. (5/16 x 1-1/4" N.C. hex.)

7шт.

8

BRACE - platform (See Figure 119)

1шт.

12

A23746

RAIL - battery runner guide

4шт.

13

A23747

SPACER - guide rail

4шт.

14

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- guide rail (5/16 x 1" N.F. hex.)

12шт.

20

A23839

PLATFORM - upper (hand clutch, diesel)

1шт.

20

A23843

PLATFORM - upper (hand clutch, L.P.)

1шт.

20

A24341

PLATFORM - upper (foot clutch, diesel)

1шт.

20

A24344

PLATFORM - upper (foot clutch, L.P.)

1шт.

21

11-520

X

BOLT - plat. to fender (5/16 x 1-1/4" N.C. carr.)

6шт.

22

A23841

COVER - transmission oil service

1шт.

23

A23876

STUD - service cover and platform support

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

26

A23874

BRACE - upper platform, right hand

1шт.

27

A23875

BRACE - upper platform, left hand

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Brace Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

32

A24387

COVER - right hand drop sheet

1шт.

33

A23849

COVER - left hand drop sheet

1шт.

34

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - cover (1/4 x 5/8" N.C. carr.)

4шт.

35

A23869

BRACKET - cover support

2шт.

36

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - bracket (1/4 x 5/8" N.F. hex.)

2шт.

37

A23846

COVER - foot rest, right hand

1шт.

38

A23866

SUPPORT - foot throttle, right hand

1шт.

39

A23847

COVER - foot rest, left hand

1шт.

40

A23845

REST - foot, left hand

1шт.

45

A23710

STEP - mounting, right hand

1шт.

46

A23723

SPACER - right hand step

1шт.

47

A23711

STEP - mounting, left hand

1шт.

48

A23744

BLOCK - platform, front

2шт.
