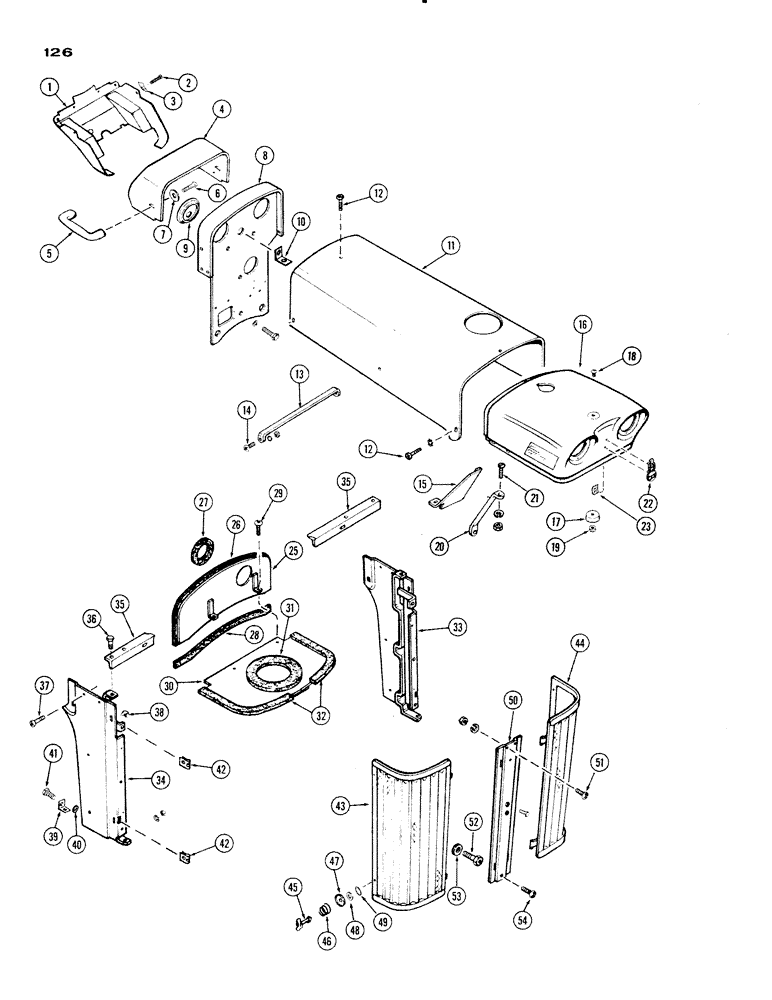

Запчасти Case IH 930-SERIES (126) - SHEET METAL (09) - CHASSIS

1

A33190

COVER - instrument panel

1шт.

2

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- cover (#8 x 1/2" self-tapping)

7шт.

3

131-130

NUT

(#8 speed nut)

7шт.

4

A33482

PANEL - instrument

1шт.

205-15

HOLE PLUG BUTTON,3/8"

PLUG - inst. panel ( button type) (Not illust.) 3/8"

1шт.

5

A23725

HANDLE

- mounting

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Handle

4шт.

7

195-103

WASHER,5/16"

( plain flat) 5/16"

4шт.

8

A23809

PLATE - hood support, rear

1шт.

9

A24620

PLUG

- rear support

1шт.

10

A23813

BRACE - rear support

1шт.

11

A32570

HOOD

1шт.

12

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood (5/16 x 5/8" N.F. Truss hd.)

5шт.

13

A23812

BRACE - hood sides

1шт.

14

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- brace (1/4 x 1/2" N.C., Truss hd.)

2шт.

15

A24682

BAFFLE - engine heat (Diesel)

1шт.

15

A24684

BAFFLE - engine heat (L.P.)

1шт.

16

A33971

CAP ASSY. - radiator grille, Includes: Ref. 17 - 19

1шт.

17

A23789

DEFLECTOR - oil

1шт.

18

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- deflector (1/4 x 1/2" N.C. ph. hd.)

1шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4" N.C. Keps)

1шт.

20

A23791

BRACE - grille cap

1шт.

21

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

BOLT - brace (1/4 x 5/8" N.C., flat hd.)

1шт.

22

A24526

MEDALLION (Case Trademark)

1шт.

23

131-138

PUSH-ON NUT

- medallion ret. (1/4" speed nut)

2шт.

25

A23792

BAFFLE

ASSY - radiator (Diesel)

1шт.

25

A24151

BAFFLE ASSY - radiator (L.P.), Includes: Ref. 26 - 28

1шт.

26

A23796

SEAL

- baffle, top

1шт.

27

A23795

GROMMET

- air cleaner tube

1шт.

28

A23797

SEAL ASSY.

SEAL - baffle, lower

1шт.

29

75-412

SCREW,Rd, 1/4" x 3/4"

- baffle (1/4 x 3/4" N.C. rd. hd.)

2шт.

30

A32855

BAFFLE ASSY - air cleaner, Includes: Ref. 31 and 32

1шт.

31

A32859

GROMMET

- air cleaner

1шт.

32

A32860

SEAL - baffle

2шт.

33

A33877

MEMBER

PANEL - radiator, left hand side

1шт.

34

A33876

PANEL - radiator, right hand side

1шт.

35

A23786

BRACE - side panels

1шт.

36

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Side panel Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

37

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- side panel (1/4 x 1/2" N.C., truss hd.)

4шт.

38

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - side panel (1/4" N.C. speed grip)

4шт.

39

A11905

CLIP - side panels, rear

2шт.

40

A11737

SPACER - clip

1шт.

41

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- clip (3/8 x 1/2" N.F. hex.)

2шт.

42

A36042

CLIP

RECEPTACLE - grille stud

4шт.

43

A32836

GRILLE - radiator screen, right hand

1шт.

44

A32837

GRILLE - radiator screen, left hand

1шт.

45

A32881

STUD

- wing, grille lock

4шт.

46

A32882

VALVE SPRING

SPRING - grille stud

4шт.

47

A32883

WASHER

- stud spring seat

4шт.

48

A34012

WASHER

- grill stud

4шт.

49

A36041

RETAINER

RING - snap, grille stud ret.

4шт.

50

A23785

BRACE - grille & cap, center

1шт.

51

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- brace, upper (1/4 x 3/4" N.C., Truss hd.)

2шт.

52

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- brace, lower (5/8 x 1-3/4" N.C., spec. hd.)

1шт.

53

B18239

SPACER,3/4" Pipe x 3/4"

- () 3/4" Pipe x 3/4"

1шт.

54

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

(1/4 x 1/2" N.C. truss hd.)

1шт.
