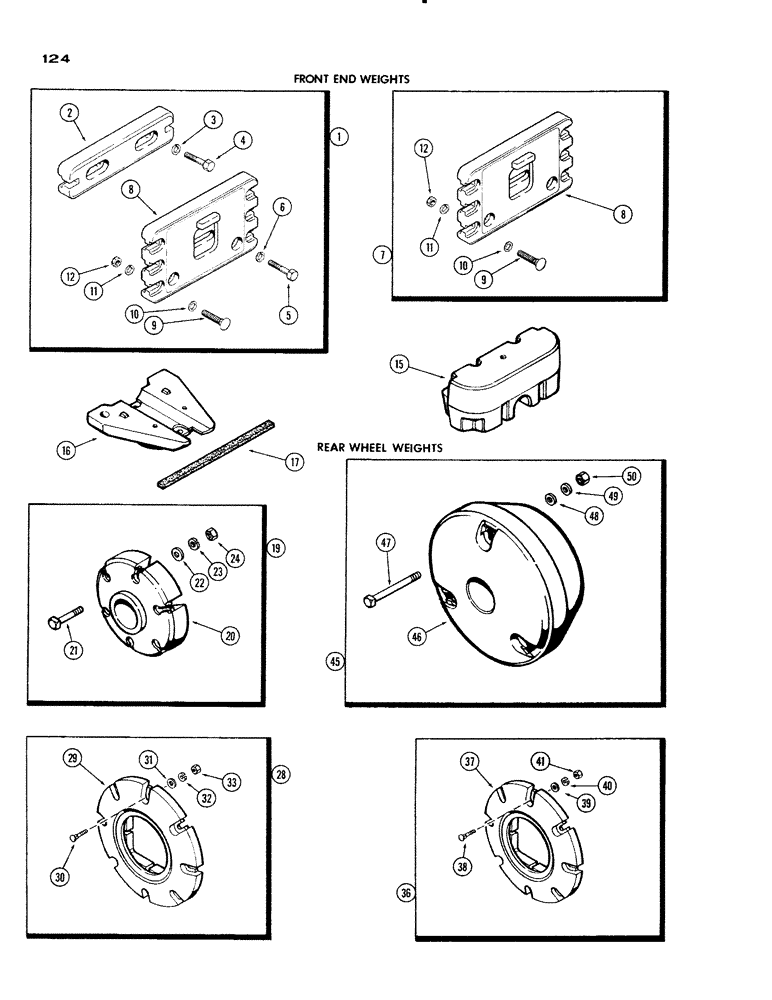

Запчасти Case IH 930-SERIES (124) - WEIGHTS, FRONT END (09) - CHASSIS

1

A33259

WEIGHT KIT - front end (Mach. attach), Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - starter (Order A33259M)

1шт.

3

113-1036

BOLT - starter (5/8" x 2-1/4" N.C. hex.)

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Weight to starter Hex, 3/4"-10 x 4 1/2", G5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

A33260M

WEIGHT KIT - front end, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

WEIGHT (100 lbs. each) (Order A33260M)

1шт.

9

B90584

BOLT

- weight to weight (3/4 x 4" N.C. carr.)

2шт.

10

17438

WASHER

(25/32 x 1-3/4 x 7/32")

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

25-1012

NUT,3/4"-10, G5

2шт.

15

A33543

WEIGHT - radiator bracket, top

1шт.

16

A22819

WEIGHT - radiator bracket, lower

1шт.

17

A24443

SEAL -, Serial Range: radiator-bracket

1шт.

19

A28352

WEIGHT KIT (Set of 2) (See Refs. 28 and 36) (Used w/A11343 or A33545 wheels) (Mach. attach), rear, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

WEIGHT - (150 lbs.) (Order A28352), rear wheels

2шт.

21

17-1272

BOLT (MACHINE)

BOLT - weight (3/4 x 4-1/2" N.C. sq. hd.), rear wheels

6шт.

22

A26543

WASHER - (25/32 x 1-9/16 x 10 ga.), rear wheels

6шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheels 3/4"

6шт.

24

25-1012

NUT,3/4"-10, G5

Rear wheels 3/4"-10, G5

6шт.

28

A34828

WEIGHT KIT - starter (Set of 2) (Used w/A34275 wheel) (mach. attach.), rear, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

WEIGHT (140 lbs.) (order A34828), rear wheels

2шт.

30

111-624

CARRIAGE BOLT,Short NK, 5/8"-11 x 6 1/2", G2

BOLT - weight (5/8 x 6-1/2" N.C. carr.), rear wheels

8шт.

31

95-10

WASHER,5/8"

(11/16 x 1-3/4 x 9/64"), rear wheels

8шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheels 5/8"

8шт.

33

25-1010

NUT,5/8"-11, G5

Rear wheels 5/8"-11, G5

8шт.

36

A33258

BOLT

WEIGHT KIT - additional (Set of 2) (Used w/A34828 weight kit) (mach. attach.), rear wheels, Includes: Ref. 37 - 41

1шт.

37

NSS

NOT SOLD SEPARAT

WEIGHT (140lbs.) (Order A33258), rear wheels

1шт.

38

11-1060

BOLT (5/8 x 3-3/4" N.C. carr.), rear wheels

8шт.

39

95-10

WASHER,5/8"

(11/16 x 1-3/4 x 9/64"), rear wheels

8шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheels 5/8"

8шт.

41

25-1010

NUT,5/8"-11, G5

Rear wheels 5/8"-11, G5

8шт.

45

A28421

WEIGHT KIT (Set of 2) (mach. attach.), rear wheels, Includes: Ref. 46 - 50

1шт.

46

NSS

NOT SOLD SEPARAT

WEIGHT - (690 lbs.) (Order A28421), rear wheels

2шт.

47

17-12144

BOLT - weight (3/4 x 9" N.C., sq. hd.), rear wheels

6шт.

48

A26543

WASHER - (25/32 x 1-9/16 x 10 ga.), rear wheels

6шт.

49

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheels 3/4"

6шт.

50

25-1012

NUT,3/4"-10, G5

Rear wheels 3/4"-10, G5

6шт.
