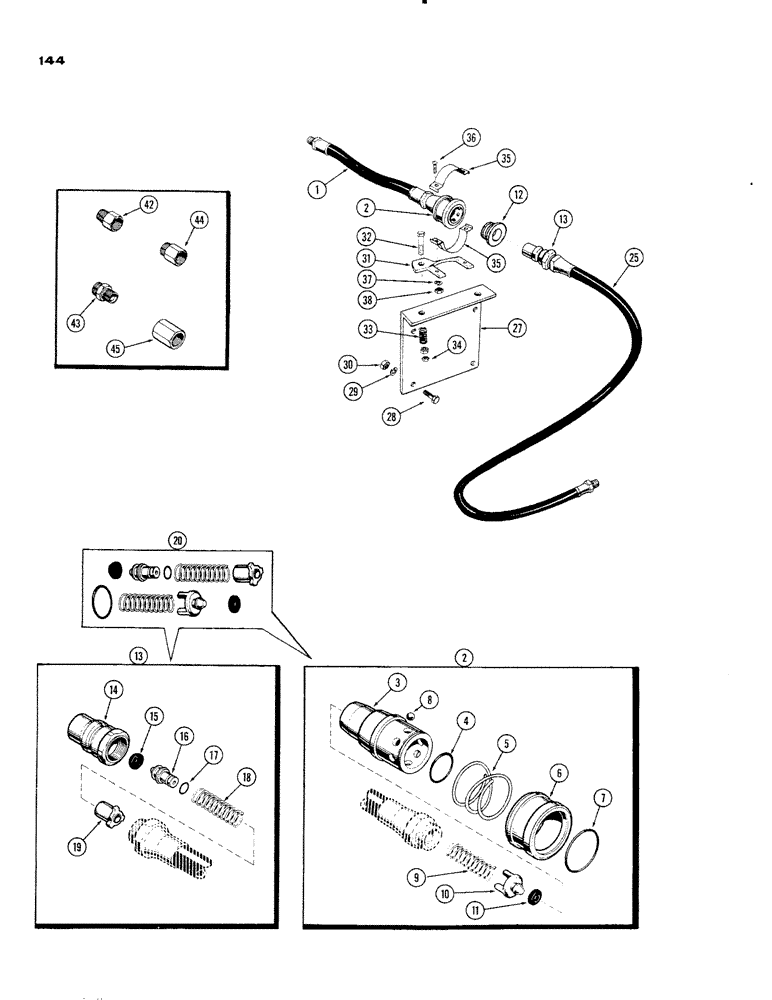

Запчасти Case IH 930-SERIES (144) - BREAK-AWAY COUPLING AND LINES (08) - HYDRAULICS

1

A27447

HOSE

- coupling (14-1/2" lg.)

4шт.

2

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - breakaway, female half, Includes: Ref. 3 - 11

4шт.

3

A27349

BODY

- female section

1шт.

4

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

5

A27354

SPRING

- sleeve tension

1шт.

6

A27353

SLEEVE

SLEEVE - male cplg. lock and release

1шт.

7

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve ret.

1шт.

8

211-7

BALL,1/4" Dia

- coupling swivel 1/4" Dia

8шт.

9

A11324

SPRING

- piston pressure

1шт.

10

A26215

PISTON

- coupling socket

1шт.

11

A33964

SEAL

- piston

1шт.

12

A22768

PLUG

- dust, female cplg.

4шт.

13

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - breakaway, male half, Includes: Ref. 14 - 19

4шт.

14

A27356

PIPE FITTING

BODY - coupling

1шт.

15

A33964

SEAL

- piston

1шт.

16

A27508

PISTON

- coupling

1шт.

17

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (1/4 x 3/8 x 1/16")

1шт.

18

A27351

SPRING

- piston

1шт.

19

A9634

SLEEVE

- piston

1шт.

20

A40459

KIT

REPAIR KIT - (Will repair 1-A28541 male cplg. and 1-A28542 female coupling)

1шт.

25

A20816

HOSE

- coupling to cyl. (106" lg.)

1шт.

25

A20817

HOSE

- coupling to cyl. (118" lg.)

1шт.

27

A24114

SUPPORT - coupling mounting bracket

2шт.

28

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- support (3/8 x 1" N.F. hex.)

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

4шт.

31

A27360

BRACKET

- coupling mtg.

4шт.

32

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- bracket (3/8 x 1-3/4" N.F. hex.)

4шт.

33

A26546

SPRING

- mounting bracket

4шт.

34

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. half hex.)

8шт.

35

A27423

CLAMP

- coupling retaining

8шт.

36

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- clamp (#8 x 5/8" N.C., rd. hd.)

8шт.

37

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

38

129-6

NUT,#8-32

8шт.

42

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

(7/8" - 18 female and 1/2" P.T. male)

1шт.

43

A27359

ADAPTER

(7/8" - 18 male and 1/2" P.T. male)

1шт.

44

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

(7/8" - 18 male and 1/2" P.T. female)

1шт.

45

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

(7/8" - 18 female and 1/2" P.T. female)

1шт.
