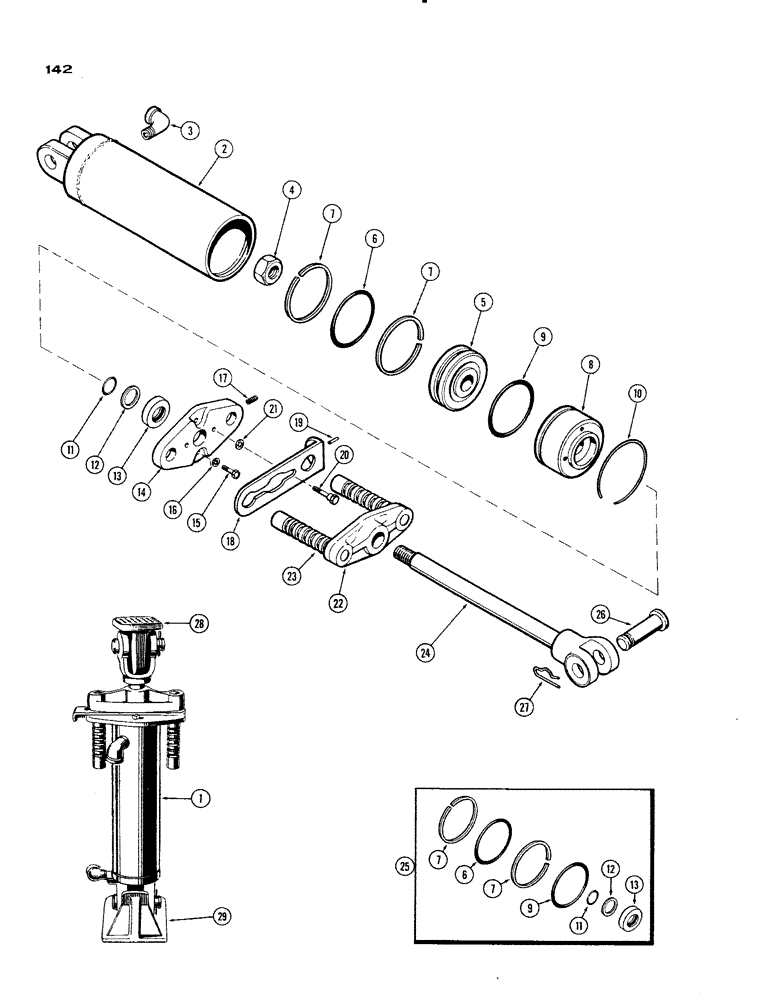

Запчасти Case IH 930-SERIES (142) - 4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH MECHANICAL LIMIT STOP (08) - HYDRAULICS

1

A23546

CYLINDER

ASSY. - hydraulic, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A23546)

1шт.

3

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - hydraulic lines (90 deg. street)

2шт.

4

131-369

LOCK NUT,7/8"-14, GA

NUT - piston ret. (7/8" N.F. self-locking)

1шт.

5

A23534

PISTON - cylinder

1шт.

6

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston (3-5/8 x 4 x 3/16") (See Ref. 25)

1шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

7

A23535

OIL SEAL

RING - "O" ring back-up (See Ref. 25)

2шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

8

A23554

HEAD - cylinder

1шт.

9

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - head, outer (3-3/4 x 4/ x 1/8") (See Ref. 25)

1шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

10

A30896

RING

- snap, head ret.

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - head, inner (1-1/8 x 1-3/8 x 1/8") (See Ref. 25)

1шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

12

A23553

RING

- "O" ring back-up (See Ref. 25)

1шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

13

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod wiper (1-1/8 x 1-27/32 x 1/4") (See Ref. 25)

1шт.

Part of hydraulic cylinder repair kit P/N A40759

1шт.

14

A27345

GUIDE - limit stop pin

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- guide ret. (5/16 x 1-1/4" N.C. hex.)

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

A27421

SPRING

- limit stop latch

1шт.

18

A31156

LATCH

ASSY. - limit stop, Includes: Ref. 19

1шт.

19

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , Spring guide 1/4" x 5/8", Slotted

1шт.

20

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch retaining

2шт.

21

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

22

A31154

STOP ASSY. - piston limit, Includes: Ref. 23

1шт.

23

A31155

PIN - stop limit

2шт.

24

A30972

ROD - piston

1шт.

25

A40759

SEAL,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

REPAIR KIT - hyd. cyl., Includes: Ref. 6, 7, 9, 11, 12 and 13

1шт.

26

A27347

PIN

- hyd. cyl. ret.

2шт.

27

A29054

HAIR PIN COTTER

- internal hair

2шт.

28

A9163

PAD - hydraulic cylinder

1шт.

29

A9164

BASE

- hydraulic cylinder

1шт.
