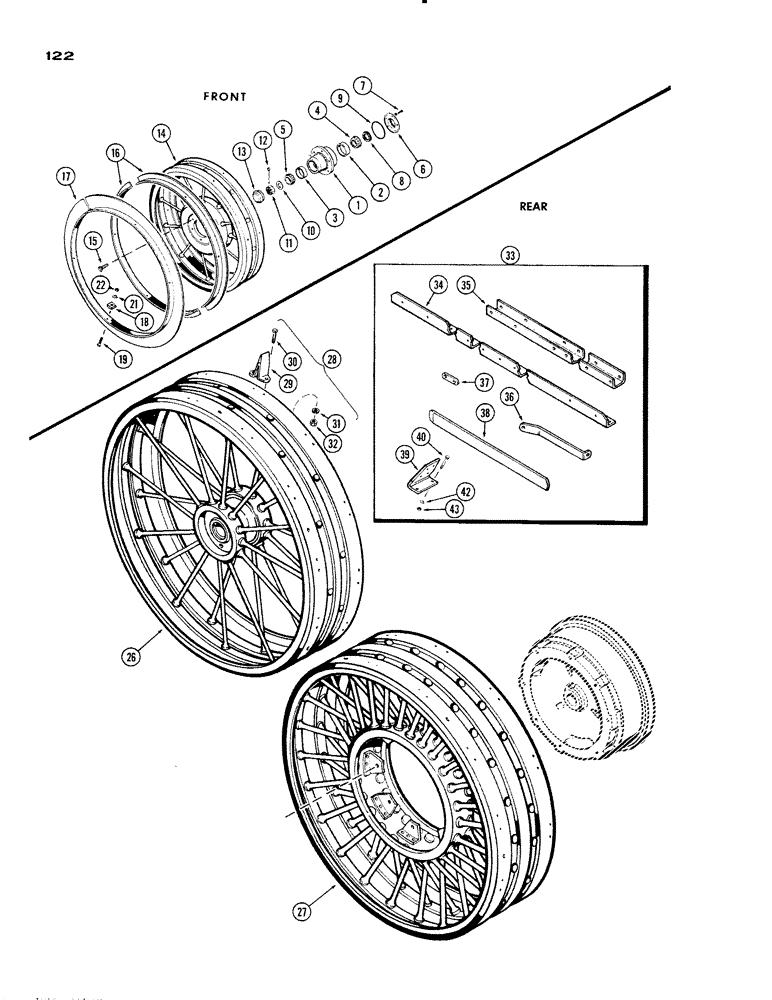

Запчасти Case IH 930-SERIES (122) - STEEL WHEELS, FRONT WHEELS (06) - POWER TRAIN

1

A22743

HUB

ASSY - front wheel, Includes: Ref. 2 and 3

2шт.

2

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner

1шт.

3

A27631

CUP

- bearing, outer

1шт.

4

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner

2шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer

2шт.

6

A27140

RETAINER

- oil seal

2шт.

7

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.F., flat hd.)

10шт.

8

A27139

SEAL

- oil, front brgs.

2шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

10

A26789

BEARING WASHER

WASHER - outer brg. ret.

2шт.

11

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.)

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

A29425

CAP

- hub

2шт.

14

A23047

WHEEL - front

2шт.

15

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- wheel to hub (1/2 x 1-1/2" N.F. hex.)

12шт.

16

A31181

RING - skid (split, 1-1/2" wide)

4шт.

17

A26624

RING - skid (solid, 3" wide)

2шт.

18

A26625

SPACER - skid ring

16шт.

19

17-820

BOLT (1/2 x 1-1/4" N.C. mach.) (For 1-1/2" ring)

16шт.

19

17-824

BOLT (1/2 x 1-1/2" N.C. mach.) (For 3" ring)

16шт.

21

92-8

LOCK WASHER,1/2"

28шт.

22

25-108

NUT,1/2"-13, G5

(1/2" N.C. hex.)

16шт.

26

A23052

WHEEL - rear

2шт.

27

A23576

WHEEL (used w/A11348 ctr. disc.), rear

2шт.

28

A28344

LUG KIT (Set of 56), rear wheels, Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

LUG - rear wheel (Order A28344)

56шт.

30

17-1224

BOLT - lug (3/4 x 1-1/2" N.C., sq. hd.), rear wheels

112шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheels 3/4"

112шт.

32

25-1012

NUT,3/4"-10, G5

Lug bolt, rear wheels 3/4"-10, G5

112шт.

33

A11987M

SCRAPER KIT - rear wheels, Includes: Ref. 34 - 43

1шт.

34

A11983

ANGLE - scraper, rear wheels

1шт.

35

A11986

SPACER - angle, rear wheels

1шт.

36

A20160

BRACE - angle, rear wheels

2шт.

37

A26643

STRAP - scraper, rear wheels

4шт.

38

A27051

SCRAPER - rear wheels

2шт.

39

A27395

BRACKET - scraper, rear wheels

2шт.

40

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

(1/2 x 1-1/2" N.F. hex.), rear wheels

4шт.

40

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

(1/2 x 1-3/4" N.F. hex.), rear wheels

12шт.

40

16-880

BOLT (1/2 x 5" N.F. hex.), rear wheels

4шт.

42

92-8

LOCK WASHER,1/2"

rear wheels 1/2"

20шт.

43

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.), rear wheels

20шт.
