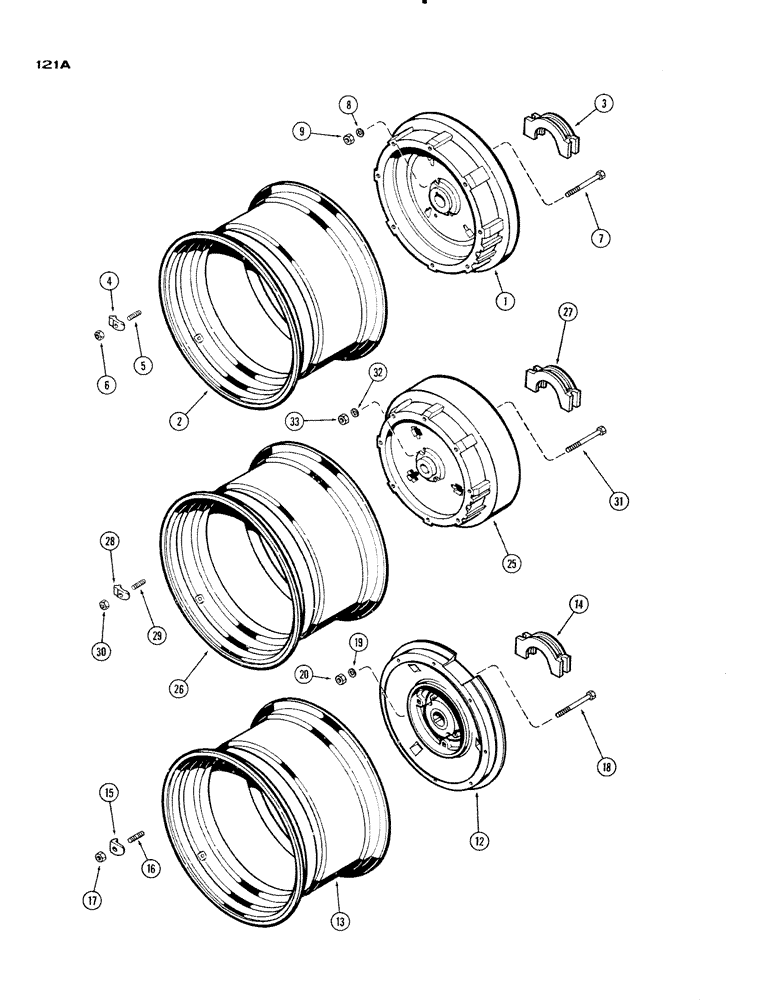

Запчасти Case IH 930-SERIES (121A) - REAR WHEELS (06) - POWER TRAIN

1

A11343

WHEEL - center disc.

2шт.

2

A33460

RIM

- (Takes 23.1 x 34 tire)

2шт.

3

A33350

SPACER - fender hub

2шт.

4

A26908

CLAMP

-, Serial Range: rim-wheel

16шт.

5

A27179

STUD

- clamp (5/8" N.C. x 2-7/16")

16шт.

6

A27183

NUT

- clamp stud (5/8" N.C. hex.)

16шт.

7

15-10104

BOLT

- wheel (5/8 x 6-1/2" N.C. hex.)

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

25-1010

NUT,5/8"-11, G5

4шт.

12

A34275

WHEEL - center disc. (26-11/16" dia.) (See Ref. 25)

2шт.

13

A33176

RIM

- (takes 23.1 x 30 tire)

2шт.

14

A33350

SPACER - fender hub

2шт.

15

A26908

CLAMP

-, Serial Range: rim-wheel

16шт.

16

A27179

STUD

- clamp (5/8" N.C. x 2-7/16")

16шт.

17

A27183

NUT

- clamp stud (5/8" N.C. hex.)

16шт.

18

15-10104

BOLT

- wheel (5/8 x 6-1/2" N.C. hex.)

4шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

25-1010

NUT,5/8"-11, G5

4шт.

25

A33545

WHEEL - center disc. (27" dia.) (See Ref. 12)

2шт.

26

A33176

RIM

- (Takes 23.1 x 30 tire)

2шт.

27

A33350

SPACER - fender hub

2шт.

28

F62001

CLAMP

-, Serial Range: rim-wheel

16шт.

29

A27179

STUD

- clamp (5/8" N.C. x 2-7/16")

16шт.

30

A27183

NUT

- clamp stud (5/8" N.C. hex.)

16шт.

31

15-10104

BOLT

- wheel (5/8 x 6-1/2" N.C. hex.)

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

33

25-1010

NUT,5/8"-11, G5

4шт.
