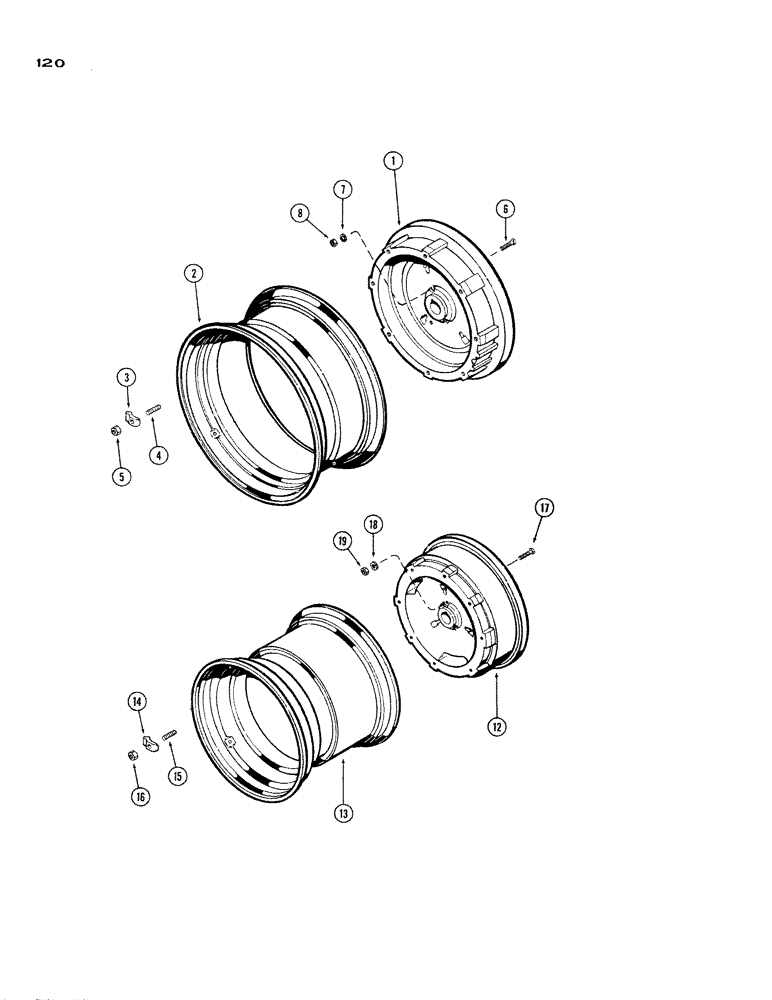

Запчасти Case IH 930-SERIES (120) - REAR WHEELS (06) - POWER TRAIN

1

A11343

WHEEL - center disc

2шт.

2

A10693

RIM

(For 18.4/15 x 34 tire)

2шт.

2

A28063

RIM (takes 14 x 34 tire)

2шт.

3

A26908

CLAMP

-, Serial Range: rim-wheel

16шт.

4

A27179

STUD

- clamp (5/8" N.C. x 2-7/16")

16шт.

5

A27183

NUT

- clamp stud (5/8" N.C. hex.)

16шт.

6

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel Hex, 5/8"-11 x 2 1/2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

4шт.

12

A11348

WHEEL - center disc

2шт.

13

A8736

RIM (takes 23.1/18 x 26 tire)

2шт.

14

A26908

CLAMP

-, Serial Range: rim-wheel

16шт.

15

A27179

STUD

- clamp (5/8" N.C. x 2-7/16")

16шт.

16

A27183

NUT

- clamp stud (5/8" N.C. hex.)

16шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel Hex, 5/8"-11 x 2 1/2", G5

4шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

25-1010

NUT,5/8"-11, G5

4шт.
