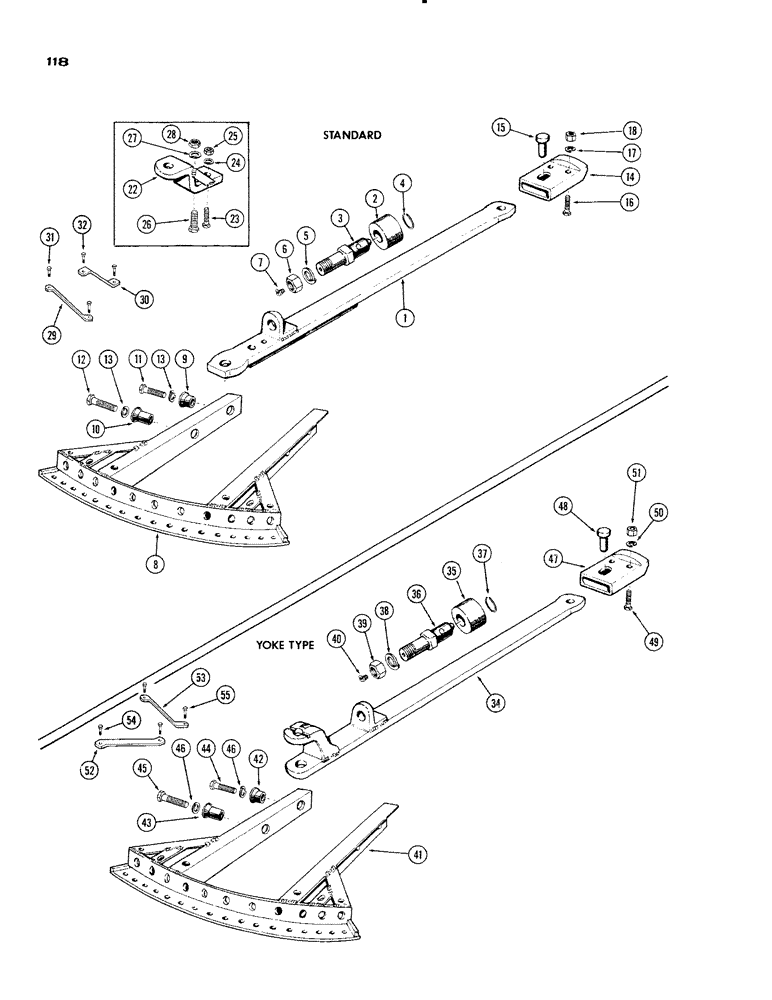

Запчасти Case IH 930-SERIES (118) - DRAWBARS, STANDARD DRAWBAR (06) - POWER TRAIN

A24350

DRAWBAR

ASSY, Includes: Ref. 1 - 7

1шт.

1

A24351

DRAWBAR

1шт.

2

A27010

ROLLER

1шт.

3

A27011

BOLT

- roller

1шт.

4

A27012

RING

- snap, roller ret.

1шт.

5

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

6

129-131

NUT,1 1/8"-12, G5

- bolt ret. (1-1/8" N.F. hex.)

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

1шт.

8

A11763

SUPPORT - drawbar

1шт.

9

A27027

BUSHING

- support, front (1-3/16" long)

2шт.

10

A27028

BUSHING

- support, rear (1-5/8" lg.)

2шт.

11

15-1240

X

BOLT - support, frt. (3/4 x 2-1/2" N.C. hex.)

2шт.

12

15-1248

X

BOLT - support, rear (3/4 x 3" N.C. hex.)

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

14

A28388

BRACKET - drawbar support, front

1шт.

15

A27009

BOLT

- drawbar pivot

1шт.

16

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- bracket (5/8 x 2-1/2" N.F. hex.)

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

2шт.

22

A28485

BRACKET - drawbar raised hitch

1шт.

23

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- bracket (1/2 x 3-1/2" N.F. hex.)

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

1шт.

26

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- bracket (5/8 x 3-1/2" N.F. hex.)

1шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

1шт.

29

A11756

BRACE - outer (10" between hole ctrs.) (6" high)

2шт.

30

A10341

BRACE - inner (7-1/2" between hole ctrs.) (5-1/4" high)

2шт.

31

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- brace (1/2 x 1-1/2" N.F. hex.)

6шт.

32

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Brace Hex, 5/8"-18 x 1 3/4", G5

2шт.

A24346

DRAWBAR ASSY, yoke type, Includes: Ref. 34 - 40

1шт.

34

A24347

DRAWBAR, yoke type

1шт.

35

A27010

ROLLER

yoke type drawbar

1шт.

36

A27011

BOLT

- roller, yoke type drawbar

1шт.

37

A27012

RING

WASHER - (1-1/8" lock), yoke type drawbar

1шт.

39

129-131

NUT,1 1/8"-12, G5

- bolt ret. (1-1/8" N.F. hex.), yoke type drawbar

1шт.

40

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.), yoke type drawbar

1шт.

41

A11763

SUPPORT - drawbar, yoke type

1шт.

42

A27027

BUSHING

- support, frt. (1-3/16" lg.), yoke type drawbar

2шт.

43

A27028

BUSHING

- support, rear (1-5/8" lg.), yoke type drawbar

2шт.

44

15-1240

X

BOLT - support, front (3/4 x 2-1/2" N.C. hex.), yoke type drawbar

3шт.

45

15-1248

X

BOLT - support, rear (3/4 x 3" N.C. hex.), yoke type drawbar

2шт.

46

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Yoke type drawbar 3/4"

4шт.

47

A28388

BRACKET - drawbar support, front, yoke type

1шт.

48

A27009

BOLT

- drawbar pivot, yoke type

1шт.

49

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- bracket (5/8 x 2-1/2" N.F. hex.), yoke type drawbar

2шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Yoke type drawbar 5/8"

2шт.

51

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.), yoke type drawbar

2шт.

52

A20486

BRACE - outer (13-7/8" between hole ctrs.) (5-3/16" high), yoke type drawbar

2шт.

53

A20485

BRACE - inner (10" between hole ctrs.) (5-9/16" high), yoke type drawbar

2шт.

54

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- brace (1/2 x 1-1/2" N.F. hex.), yoke type drawbar

6шт.

55

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Brace, yoke type drawbar Hex, 5/8"-18 x 1 3/4", G5

2шт.
